Help CenterOffshore Platform Biofouling Control: Electrolytic Seawater Chlorination System With Skid Mounted Design
Product Spotlights
Related Products
-
Reliable Electrolytic Seawater Chlorination System With Full Warranty and Technical Training AvailableUS$ 100000 - 2000000MOQ: 1 Set -
Electrolytic Seawater Chlorination System With Electrolyzer Service Life >5 Years Guaranty and 25 Years ExperienceUS$ 100000 - 2000000MOQ: 1 Set
-
PPE/CTE/MESH All Available Electrolytic Seawater Chlorination System With Skid Mounted DesignUS$ 100000 - 2000000MOQ: 1 Set
-
PLC Automatic and Skid Mounted Design Electrolytic Seawater Chlorination System With More Cost Effective OperationUS$ 100000 - 2000000MOQ: 1 Set
-
25 Years Experience PLC Automatic Electrolytic Seawater Chlorination System Skid Mounted DesignUS$ 100000 - 2000000MOQ: 1 Set
Tianjin ZhuoLiNeng (ZLN) Technology Co., Ltd. is a professional manufacturer with over a decade of experience in electrolytic seawater chlorination systems. Our Offshore Platform Biofouling Control: Electrolytic Seawater Chlorination System with Skid Mounted Design is engineered specifically to combat marine biofouling in demanding offshore environments. By producing sodium hypochlorite on-site from seawater, this system eliminates the need for chemical transportation and storage, ensuring continuous and cost-effective protection for seawater cooling lines, fire-fighting systems, and injection water systems. The skid-mounted design allows for compact installation on space-constrained platforms, with quick deployment and minimal maintenance requirements. Whether for new builds or retrofits, our solution delivers reliable, environmentally responsible biofouling control.
Key Features & Technical Specifications

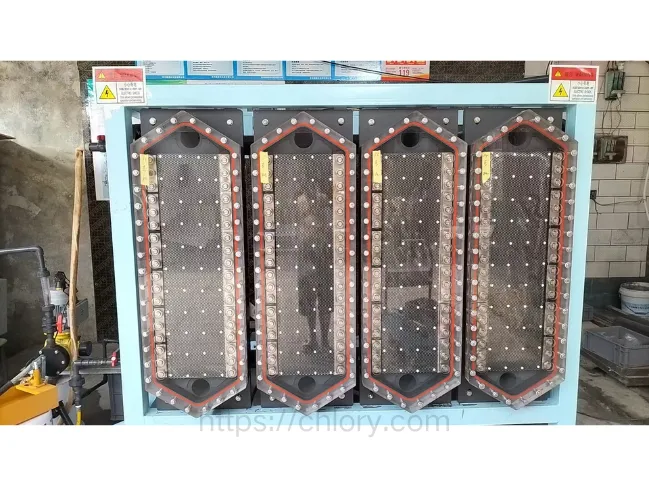

Electrolytic Cell Technology: Utilizes advanced mixed metal oxide (MMO) coated titanium electrodes for high efficiency and long service life (5–8 years).

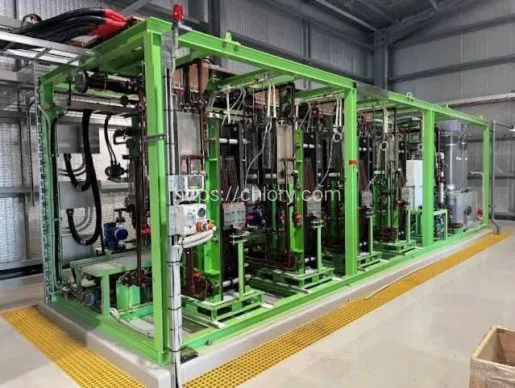

Skid Mounted Design: Pre-assembled and tested on a structural steel skid, reducing on-site installation time and labor costs.
Automated Control: PLC-based control with intuitive HMI touchscreen, providing real-time monitoring of chlorine production, salinity, temperature, and flow rate. Remote SCADA connectivity is available upon request.
Low Maintenance: Self-cleaning electrode polarity reversal minimizes scaling, and the system is designed for easy access to key components.
Material Construction: Seawater wetted parts are made from corrosion-resistant materials such as titanium, duplex stainless steel, and fiber-reinforced plastic (FRP).
Flexible Capacity: Standard capacities range from 1 kg/h to 100 kg/h of equivalent chlorine, with custom designs available for larger requirements.
Power Efficiency: Typical DC power consumption is 4.0–4.5 kWh per kg of chlorine produced.
Technical Parameters (Typical Model)
| Parameter | Value |
|---|---|
| Chlorine Production Capacity | 10 kg/h Cl₂ equivalent |
| Seawater Flow Rate | 12 m³/h |
| DC Power Consumption | ~4.2 kWh/kg Cl₂ |
| Operating Voltage | AC 440V, 60Hz (customizable) |
| Skid Dimensions (L×W×H) | 3.0m × 1.5m × 2.2m |
| Weight (Dry) | 2,800 kg |
| \Control System | PLC + HMI Touchscreen |
Benefits for Your Offshore Operations
Eliminate Chemical Logistics: On-site generation removes the need for hazardous chemical transport and storage, enhancing safety and reducing operational costs.
Minimized Downtime: Automated self-cleaning and durable electrodes ensure continuous operation, with only routine inspections required.
Space-Saving: Skid-mounted configuration optimizes deck space, ideal for platforms where every square meter counts.
Environmentally Friendly: Produces a low-concentration sodium hypochlorite solution that degrades rapidly without harmful residues.
Scalability: Multiple units can be combined for larger capacities, or a single system can be customized to match your specific flow and dosage requirements.
As a manufacturer based in Tianjin, China, Tianjin ZhuoLiNeng (ZLN) Technology Co., Ltd. has delivered electrolytic chlorination systems to over 30 countries including North America, Europe, Southeast Asia, and the Middle East. Our dedicated R&D team continuously improves electrode life and energy efficiency. Every system undergoes rigorous factory acceptance testing (FAT) before shipment. We provide comprehensive technical documentation, commissioning supervision (optional), and after-sales support. With certification and a strong track record in offshore projects, ZLN is your trusted partner for biofouling control. Contact us today to discuss your offshore platform requirements and receive a customized proposal.
Frequently Asked Questions
Q: How does the electrolytic seawater chlorination system prevent biofouling?
A: The system uses electrolysis to convert chloride ions in seawater into sodium hypochlorite (NaClO), which is then dosed into the water intake. This low-level disinfectant kills or repels marine organisms such as barnacles, mussels, and algae, preventing them from attaching to pipes and equipment.Q: What is the typical lifespan of the electrodes?
A: With proper operation and regular polarity reversal, the MMO coated titanium electrodes typically last 5–8 years before requiring replacement. Actual lifespan depends on salinity, water temperature, and operating current density.Q: Can the system be installed on existing offshore platforms?
A: Yes, the skid-mounted design allows for easy retrofitting. Our team can customize the skid footprint and piping connections to match the platform layout. We also offer modular designs for limited space applications.Q: What is the required maintenance routine?
A: Routine maintenance includes checking the electrolyte level, cleaning the electrodes (automatically via polarity reversal), inspecting pumps and valves, and calibrating the chlorine analyzer. A detailed maintenance manual is provided with each system.Q: Does the system work in low-temperature or high-turbidity seawater?
A: Yes, the electrolysis efficiency varies with temperature and turbidity, but the system is designed to operate effectively in seawater temperatures ranging from 2°C to 40°C and turbidity up to 100 NTU. For extreme conditions, we can adjust the electrode configuration and control parameters.Q: Do you provide remote monitoring and control?
A: Yes, remote monitoring via SCADA or cloud-based platforms is available as an optional feature. Our PLC supports Modbus TCP/IP protocol for seamless integration with your existing control network.Q: What certifications does the system hold?
A: Our manufacturing facility is certified. The system can be produced to meet various classification society requirements (e.g., ABS, DNV, Lloyd's) upon request. Please specify your required certifications when inquiring.Q: What is the delivery time and shipping port?
A: Standard systems are typically delivered within 10–12 weeks from order confirmation. Shipments are made from Tianjin Port, China. We can also arrange expedited delivery for urgent projects.
