Home > Manufacturing & Processing Machinery > Machine Tools > CNC Machine Tools > Heavy Duty CNC Gantry Mill, 4-Axis, 12kW, 3000x1500mm Travel, BT40 Spindle for Metal Cutting

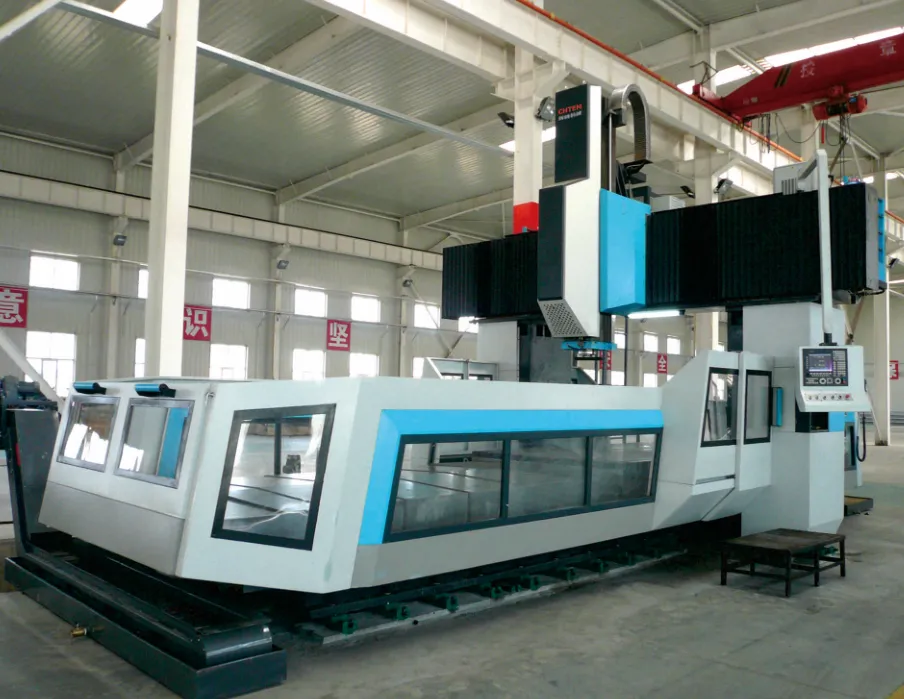

Heavy Duty CNC Gantry Mill, 4-Axis, 12kW, 3000x1500mm Travel, BT40 Spindle for Metal Cutting

Heavy Duty CNC Gantry Mill, 4-Axis, 12kW, 3000x1500mm Travel, BT40 Spindle for Metal Cutting thumbnail-3

Heavy Duty CNC Gantry Mill, 4-Axis, 12kW, 3000x1500mm Travel, BT40 Spindle for Metal Cutting thumbnail-4

Heavy Duty CNC Gantry Mill, 4-Axis, 12kW, 3000x1500mm Travel, BT40 Spindle for Metal Cutting thumbnail-5

Heavy Duty CNC Gantry Mill, 4-Axis, 12kW, 3000x1500mm Travel, BT40 Spindle for Metal Cutting photo-1

Heavy Duty CNC Gantry Mill, 4-Axis, 12kW, 3000x1500mm Travel, BT40 Spindle for Metal Cutting photo-2

Heavy Duty CNC Gantry Mill, 4-Axis, 12kW, 3000x1500mm Travel, BT40 Spindle for Metal Cutting photo-3

Heavy Duty CNC Gantry Mill, 4-Axis, 12kW, 3000x1500mm Travel, BT40 Spindle for Metal Cutting photo-4

Heavy Duty CNC Gantry Mill, 4-Axis, 12kW, 3000x1500mm Travel, BT40 Spindle for Metal Cutting photo-5

Product Spotlights

Large 3000x1500mm travel for oversized parts; 4-axis capability reduces setups; 12kW BT40 spindle for efficient metal cutting; heavy cast iron structure ensures stability and precision; ISO9001 certified quality; flexible customization and global after-sales support.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Application:

Other, Metal cutting, mold & die, aerospace parts

Axis Configuration:

4-Axis (X, Y, Z, Rotary)

Spindle Taper:

BT40

Contact Supplier Request Quote Chat Now

Suzhou Excellence Intelligent Technology Co., LTD

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

fob Shanghai

Delivery Detail:

30 days

Product Details
Company Profile
Contact Us

Application Other, Metal cutting, mold & die, aerospace parts

Axis Configuration 4-Axis (X, Y, Z, Rotary)

Spindle Taper BT40

Spindle Power 12 kW

X-Axis Travel 3000 mm

Y-Axis Travel 1500 mm

Z-Axis Travel 800 mm (typical, customizable)

Worktable Size 3200 x 1600 mm (approx.)

Control System Siemens / Fanuc / Mitsubishi (optional)

Machine Weight ~12,000 kg

Welcome to Suzhou Excellence Intelligent Technology Co., LTD, a trusted trading partner since 2013 with a dedicated factory spanning 3,000–5,000 square meters and annual export value exceeding US$5 million. Our Heavy Duty CNC Gantry Mill, 4-Axis, 12kW, 3000x1500mm Travel, BT40 Spindle for Metal Cutting represents the pinnacle of robust construction and precision engineering. Designed for demanding metal cutting operations, this gantry mill delivers exceptional rigidity, high torque, and versatile 4-axis capability to handle large workpieces with repeatable accuracy. Whether you are machining molds, aerospace components, or heavy machinery parts, this machine is built to maximize productivity and reduce cycle times.

Model	SX-GM3015
X/Y/Z Travel	3000 / 1500 / 800 mm
Spindle Power	12 kW (16 HP)
Spindle Taper	BT40
Spindle Speed	0 – 8000 rpm (optional 12,000 rpm)
Worktable Size	3200 x 1600 mm
Max. Workpiece Weight	5,000 kg
Rapid Feed Rate	15 m/min (X/Y), 10 m/min (Z)
Positioning Accuracy	±0.005 mm / 300 mm
Control System	Siemens 828D / Fanuc Oi-MF (optional)
Machine Weight	~12,000 kg

Key Features & Benefits:

Heavy-Duty Cast Iron Structure – The one-piece bed and column are made of high-quality Meehanite cast iron, stress-relieved to ensure long-term stability and vibration dampening. This allows for aggressive cutting without compromising surface finish.
4-Axis Capability – Equipped with a CNC rotary table (optional) or direct indexing, the machine enables complex multi-face machining in a single setup, reducing handling errors and increasing throughput.
BT40 Spindle with 12kW Power – The belt-driven spindle delivers ample torque for roughing and finishing operations on steel, stainless steel, aluminum, and other metals. The high-speed option (up to 12,000 rpm) is ideal for non-ferrous materials.
Generous Work Envelope – With 3000 mm X-axis and 1500 mm Y-axis travel, large parts such as diesel engine blocks, railway components, and press molds fit easily. The Z-axis clearance of 800 mm accommodates tall workpieces.
Precision Linear Guideways – All axes use heavy-duty roller linear guides with preloaded ball screws. The combination ensures high rigidity and smooth motion, achieving positioning accuracy within ±0.005 mm/300 mm.
Automatic Lubrication System – Centralized lubrication delivers oil to all critical sliding surfaces and ball screws automatically, extending machine life and reducing maintenance workload.
User-Friendly CNC Control – Choose from Siemens or Fanuc controllers, both offering intuitive interfaces, 3D simulation, and tool management. The control supports complex cycles and is compatible with CAD/CAM software.
Safety & Reliability – Full enclosure splash guard, interlock doors, and emergency stop buttons comply with international safety standards. Overload protection on all axes prevents damage.

Trusted by Global Customers – Since our establishment in 2013, Suzhou Excellence has served markets in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, and many other regions. Our factory (3,000–5,000 m²) is ISO9001 certified, ensuring consistent quality control from raw material inspection to final assembly. With an annual export value of US$5–10 million, we have proven our ability to deliver reliable CNC machines that meet the rigorous demands of metal cutting industries.

Why Choose Our Gantry Mill?

ISO9001 quality management system ensures every machine is tested before shipment.
Flexible customization: spindle options, control brands, rotary table, chip conveyor, and coolant system are available.
Comprehensive after-sales support: online video training, spare parts supply, and one-year warranty.
Competitive pricing with direct factory-trading model – no middlemen markup.

Contact us today to request a quote or arrange a factory visit. Our team is ready to help you optimize your metal cutting operations with this high-performance CNC gantry mill.

Frequently Asked Questions (FAQ)

Q: What is the maximum workpiece weight the machine can handle?
A: The standard worktable is rated for up to 5,000 kg. If you need to machine heavier parts, please contact us for design evaluation – reinforcement options are available.
Q: Can I use this gantry mill for both roughing and finishing?
A: Yes. The 12 kW BT40 spindle provides high torque at low speeds for heavy roughing, while the high-speed range (up to 8,000 rpm) is suitable for fine finishing. With optional higher speed spindle, even better surface quality can be achieved on aluminum.
Q: What control system do you recommend for 4-axis work?
A: We strongly recommend Siemens 828D or Fanuc Oi-MF with option for rotary axis. Both support 4-axis interpolation and are widely used in mold and metalworking shops. We can pre-configure the control based on your part types.
Q: How long is the delivery time?
A: Standard machine delivery is 30–45 days after order confirmation. Customized configurations may require 60–75 days. We will provide a detailed schedule upon order.
Q: Do you offer training and installation support?
A: Yes, we provide free online training for basic operation and programming. For on-site installation and advanced training, our engineers can travel to your facility (travel costs negotiated).
Q: What is the spindle taper? Can I use standard BT40 tool holders?
A: The standard spindle is BT40 with pull stud retention. Any industry-standard BT40 tool holder (DIN 69871 or MAS BT) can be used. Optional SK40 or HSK-A63 are available upon request.
Q: Does the machine come with a chip conveyor?
A: A chip conveyor is an optional accessory. The standard equipment includes a coolant system with a removable chip tray. We can add a hinge belt or scraper conveyor to meet your production needs.
Q: How do you ensure the quality before shipment?
A: Each machine undergoes a 48-hour continuous run test, including spindle thermal growth check, axis positioning accuracy measurement, and real cutting test on a sample part. A final inspection report is issued before packaging.
