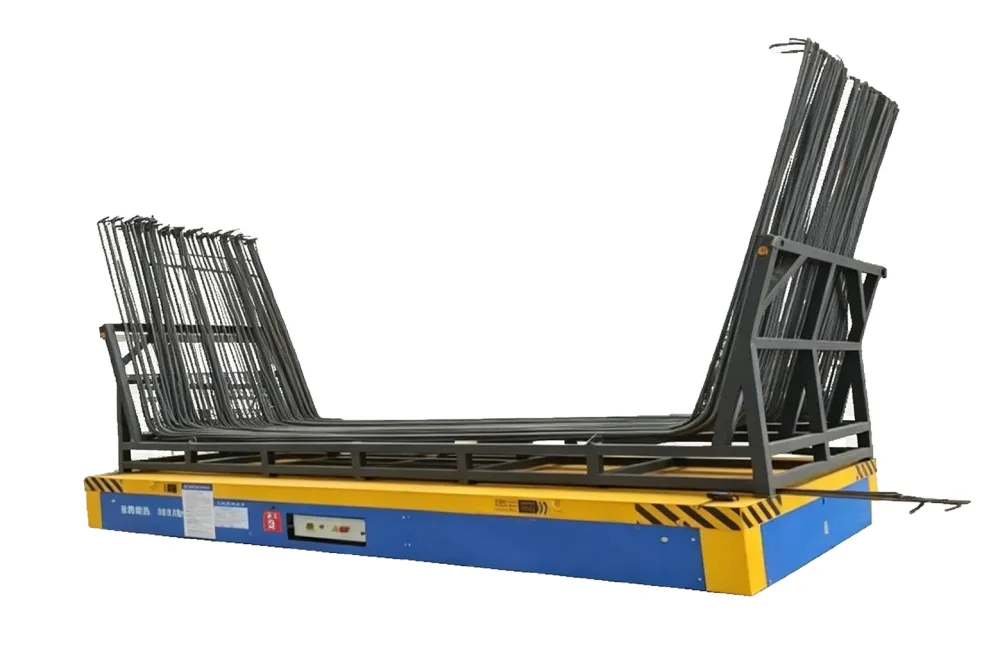

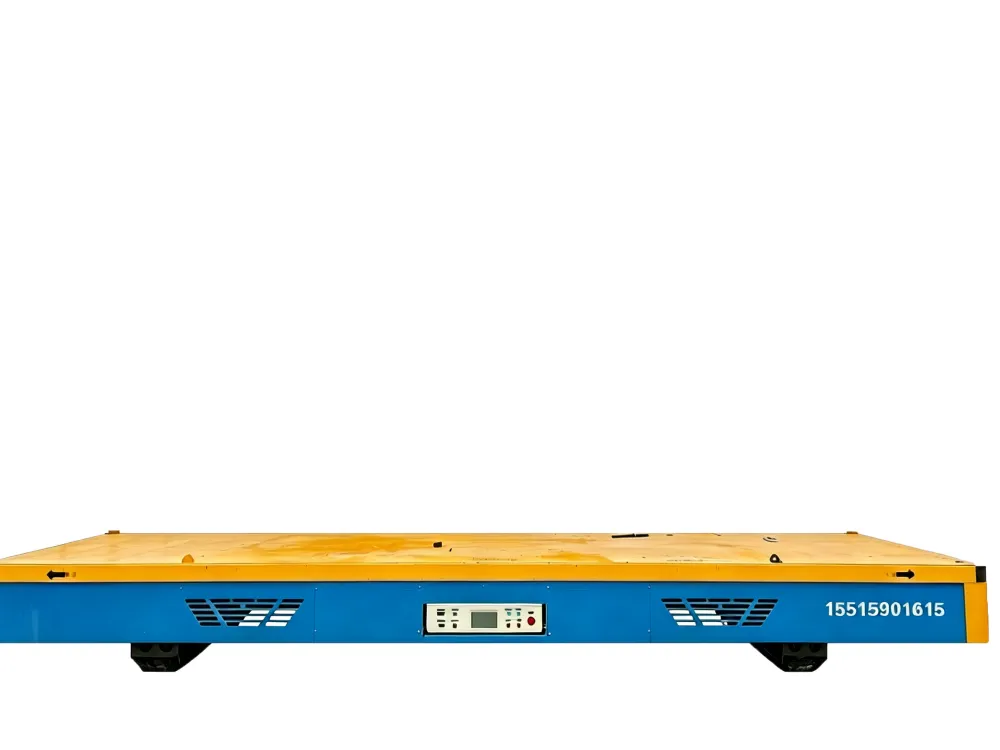

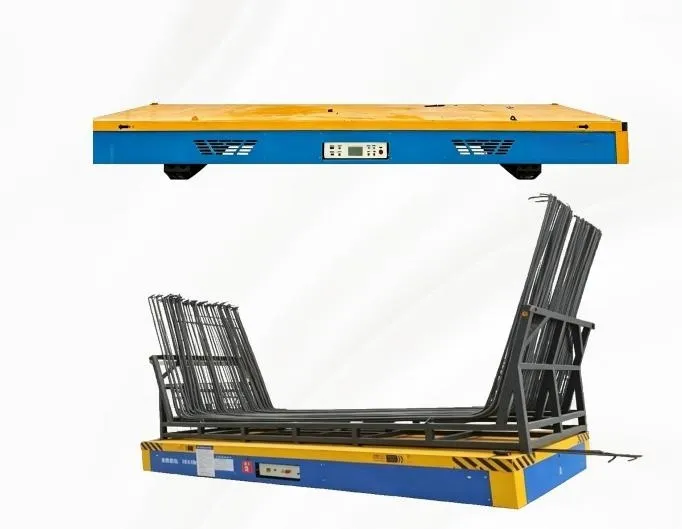

Welcome to Henan Jinhuaiyu Machinery & Equipment Co., Ltd. – a dedicated manufacturer of innovative construction equipment. Our Battery-Powered Electric Rebar Cart is engineered to solve the challenge of flexible rebar circulation at beam-yard working sites. By combining a robust electric drivetrain with a long-lasting lithium battery, this cart eliminates the need for manual pushing or fuel-powered vehicles, offering a clean, quiet, and efficient solution for moving reinforcing bars across your yard. Experience a new level of productivity and safety with a machine designed for daily heavy-duty use.
Our rebar cart is built with a high-strength steel frame and a brushless DC motor that delivers consistent torque even under full load. The lithium-ion battery pack can be easily swapped for continuous operation, ensuring that your workflow never stops. Key features include:
Zero Emissions Operation – Battery-powered motor reduces noise and air pollution on site.
Flexible Circulation – Compact design and tight turning radius allow navigation through narrow aisles and around beam forms.
Adjustable Speed Control – Stepless speed regulation from 0 to 5 km/h for precise positioning.
Intuitive Controls – Simple joystick or handlebar operation with emergency stop button.
Removable Battery Pack – Quick-swap design for 24/7 operations; spare batteries available.
Low Maintenance – Electric motor requires no oil changes, and the sealed battery system is virtually maintenance-free.
Safety First – Equipped with anti-slip tires, LED headlights, and an audible reverse alarm.
The following table summarizes the core technical specifications of our standard model:
| Parameter | Value |
|---|---|
| Load Capacity | 500 kg (1100 lbs) – other capacities customizable |
| Battery Capacity | 48V 20Ah Lithium-ion (range ≈ 8–10 hours under normal load) |
| Charging Time | 6–8 hours (standard charger); optional fast charger (2–3 hours) |
| Max Speed | 5 km/h (3.1 mph), adjustable |
| Turning Radius | ≤ 1.5 m (59 in) – excellent maneuverability |
| Overall Dimensions (L×W×H) | 1200 × 600 × 800 mm (47.2 × 23.6 × 31.5 in) |
| Net Weight | 120 kg (265 lbs) – lightweight yet sturdy |
| Tire Type | Solid rubber, anti-slip, non-marking |
Why choose our Battery-Powered Electric Rebar Cart? It significantly reduces worker fatigue and improves material flow in beam-yard environments. Traditional manual carts require multiple workers and cause delays; our electric cart can be operated by a single person, moving up to 500 kg of rebar effortlessly. The quiet operation also makes it suitable for indoor or noise-sensitive areas. For yards with high rebar turnover, the quick-swap battery system ensures continuous operation – just swap the depleted battery with a charged one and keep working.
About Henan Jinhuaiyu Machinery & Equipment Co., Ltd. – We are a professional manufacturer with a factory size of 1,000–3,000 square meters and a skilled team of 51–100 employees. Although our company was established in 2025, we have quickly built a reputation for reliable equipment and responsive service. Our products are already exported to multiple regions including North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, East Asia, Western Europe, Central America, Northern Europe, and Southern Europe – as well as the domestic market. We ship from major Chinese ports such as Tianjin, Shanghai, Qingdao, and all ports in Chinese mainland.
Trust in our commitment to quality – each rebar cart undergoes thorough testing before delivery. We offer customization options (e.g., load capacity, battery capacity, color) and can provide certifications upon request. With a dedicated after-sales team, we ensure spare parts availability and technical support. Contact us today to discuss your beam-yard circulation needs and discover how our electric rebar cart can boost your efficiency and reduce operating costs.
Frequently Asked Questions (FAQ)
Q: How long does the battery last on a full charge?
A: Under typical load conditions (about 300–400 kg), the battery can run for 8–10 hours. With maximum load (500 kg), runtime is approximately 6–8 hours. Actual duration depends on terrain and usage patterns.Q: Can I replace the battery myself? Is it easy?
A: Yes, the battery pack is designed for quick swapping. Simply unlock the latch, slide out the depleted battery, and insert a fully charged one. No tools are required.Q: What is the charging time? Can I use a regular power outlet?
A: Standard charging takes 6–8 hours using a 110V/220V AC outlet. An optional fast charger reduces this to 2–3 hours. The charger is included with the cart.Q: Is the cart suitable for outdoor use in rain or mud?
A: The electrical components are IP54 rated (splash-proof). While the cart can handle light rain, we recommend avoiding prolonged exposure to heavy rain or deep water. The solid rubber tires provide good traction on wet surfaces.Q: What kind of maintenance does it require?
A: Minimal maintenance. Check tire condition, battery terminals, and brake function periodically. The brushless motor is sealed and requires no lubrication. Keep the cart clean and store the battery in a dry place when not in use.Q: Can you customize the cart for different rebar lengths or capacities?
A: Absolutely! We offer customizable load capacities (e.g., 300 kg, 800 kg) and platform dimensions. Contact us with your specific requirements – we can adjust the design accordingly.Q: Do you provide spare parts and after-sales support?
A: Yes, we maintain an inventory of common spare parts (batteries, motors, controllers, wheels). Our technical team is available online for troubleshooting. Warranty terms are provided upon purchase.Q: What certifications does this product have?
A: Our products comply with international safety standards. Specific certifications (CE, RoHS, etc.) can be provided upon request or as part of customization. Please inquire for your target market.
