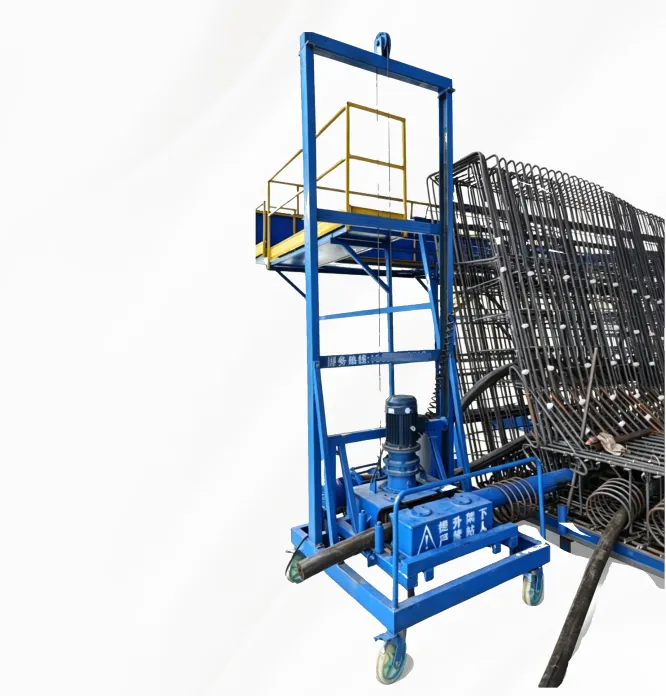

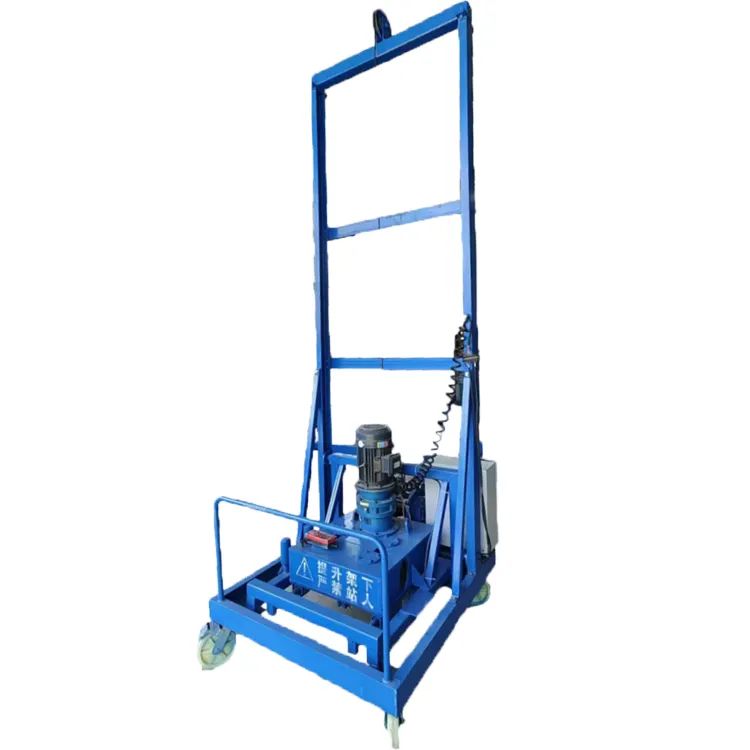

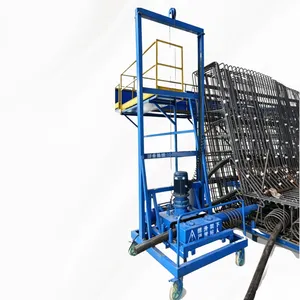

Help CenterPortable Corrugated Pipe Threader Reducing Labor for Girder Prestressing Duct Construction
Product Spotlights
Related Products
-
Factory Floor Concrete Screed for Parking Lot and Road Construction, Durable Aluminum FrameNegotiableMOQ: 1 Piece -
Electric Concrete Finishing Machine, Variable Speed Control, 2.5m Screeding Width, IP54 Rated MotorNegotiableMOQ: 1 Piece
-
High‑Efficiency Automatic Pipe Feeder for Fast Corrugated Duct Threading OperationsNegotiableMOQ: 1 Piece
-
Adjustable-speed Electric Corrugated Pipe Threader for Bridge Prestressing Duct InstallationNegotiableMOQ: 1 Piece
-
Adjustable‑Speed Corrugated Pipe Threader Supports Various Pipe Diameters for Bridge Prestressing Duct Installation ProceduresNegotiableMOQ: 1 Piece
Henan Jinhuaiyu Machinery & Equipment Co., Ltd., a dedicated manufacturer established in 2025, proudly introduces our Portable Corrugated Pipe Threader — a cutting‑edge solution designed specifically to reduce labor and accelerate girder prestressing duct construction. With a factory spanning 1,000–3,000 square meters and a skilled team of 51–100 employees, we combine modern production capabilities with hands‑on expertise. This threader is engineered to simplify threading of corrugated pipes into prestressing ducts, eliminating manual pulling and minimizing worker fatigue. Whether you are working on bridge girders, box girders, or tunnel segments, our equipment delivers consistent, reliable performance on every project.
Core Features & Technical Specifications
Portable & Compact Design – Weighing only about 35 kg with a carry handle, it can be easily moved between workstations and fits into tight construction spaces.
Adjustable Threading Speed – Speed can be set from 0 to 5 m/min, allowing operators to match the pace with pipe material and site conditions.
Wide Pipe Compatibility – Handles corrugated pipes with diameters from 50 mm to 120 mm, covering most common duct sizes used in prestressing.
Durable Construction – Built from high‑strength steel and wear‑resistant components, ensuring long service life even under heavy daily use.
Low Maintenance – Simple structure with easily replaceable wear parts; routine cleaning and lubrication are all that is needed.
Safety Features – Emergency stop button and overload protection safeguard both operator and machine.
Technical Parameters
| Parameter | Value |
| Motor Power | 1.5 kW (electric) or 0.7 MPa (pneumatic) |
| Max Pulling Force | 2,000 N |
| Operating Temperature | -10°C to 50°C |
| Overall Dimensions (L×W×H) | 800 × 400 × 600 mm |
| Power Supply | 220V/50Hz or 380V/60Hz (customizable) |
Why Choose Our Portable Corrugated Pipe Threader?
Labor Reduction – Manual threading of corrugated pipes often requires 2–3 workers and causes physical strain. This machine allows a single operator to complete the task, cutting labor costs by up to 60%.
Faster Construction – With adjustable speeds up to 5 m/min, it can thread a 50‑meter duct in under 10 minutes, significantly improving project timelines.
Consistent Quality – The automatic feeding mechanism prevents pipe twisting or jamming, ensuring smooth and uniform installation every time.
Versatile Application – Ideal for highway bridges, railway viaducts, high‑speed rail, elevated roads, and any structure using post‑tensioned prestressing ducts.
Easy Operation – Intuitive controls require minimal training; new operators can become proficient within an hour.
Trusted Manufacturing by Henan Jinhuaiyu
Our company, based in Zhengzhou, Henan, operates a modern factory equipped with precision machining tools. With a workforce of 51–100 experienced technicians and engineers, we uphold strict quality control at every stage — from raw material inspection to final assembly testing. Although we are a young enterprise (founded in 2025), we have already supplied equipment to projects across North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, and many other regions. Our products are shipped from major Chinese ports including Tianjin, Shanghai, Qingdao, ensuring timely delivery worldwide. We also offer customization options — power supply, pipe range, and accessories can be tailored to your specific site requirements. Backed by responsive after‑sales support and a one‑year warranty (excluding wear parts), we are committed to your satisfaction.
Take the Next Step
Upgrade your girder prestressing duct construction with our Portable Corrugated Pipe Threader. Reduce labor costs, accelerate project completion, and improve worker safety. Contact us today for a quote or to request a demonstration. Henan Jinhuaiyu Machinery & Equipment Co., Ltd. — your reliable partner in modern construction machinery.
Frequently Asked Questions (FAQ)
Q: What types of corrugated pipes can this machine thread? A: It handles both metal and plastic corrugated pipes with outer diameters between 50 mm and 120 mm. Please inform us if you have pipes with special profiles.
Q: Is training required to operate the threader? A: Minimal training is needed. We provide a detailed user manual and a short video guide. Most operators can master it within 30 minutes.
Q: Can the machine work with different power supplies? A: Yes. The standard version is 220V/50Hz, but we can customize it for 380V/60Hz or other voltages upon request.
Q: What maintenance is required? A: Regularly check the drive belt and roller bearings. Lubricate moving parts every 50 hours of operation. Wear parts (e.g., feed rollers) are replaceable.
Q: How is the machine shipped? A: It is securely packed in a plywood crate. The package dimensions are 900 × 500 × 700 mm and the gross weight is about 45 kg. Shipping is arranged from Tianjin, Shanghai, or Qingdao port.
Q: Do you offer a warranty? A: Yes, we provide a one‑year warranty covering manufacturing defects. Wear parts are excluded but available at competitive prices.
Q: Can the threader be used for curved ducts? A: Yes, the flexible feeding mechanism allows threading through ducts with gentle curves (radius ≥ 1.5 m). For tighter bends, please consult our technical team.
Q: What is the delivery time? A: For standard models, delivery is within 15–20 working days after order confirmation. Customized orders may take 25–30 working days.
