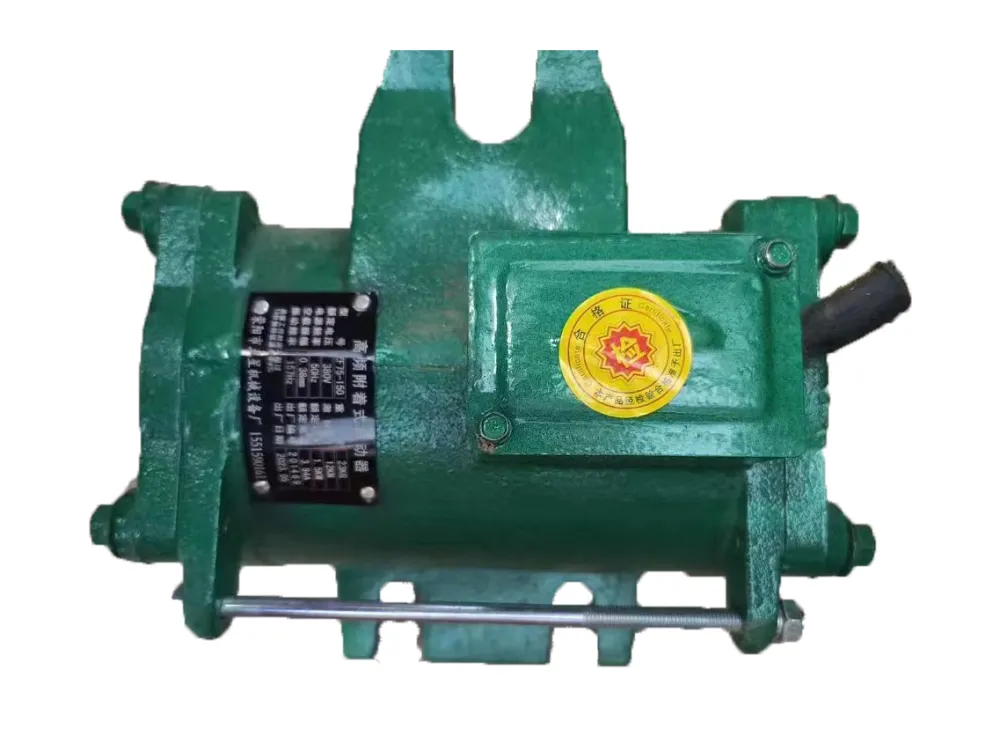

Help CenterAttached Concrete Vibrator 1.5KW 150Hz Strong Centrifugal Force for Formwork
Product Spotlights
Related Products
-
1.5KW High-frequency External Vibrator 380V for Precast Concrete CompactionNegotiableMOQ: 1 Piece -
1.5KW Formwork Vibrator for Dense Concrete Forming on Railway Precast Beam YardNegotiableMOQ: 1 Piece
-
Cast‑iron‑shell Attached Vibrator Matching Frequency Control Cabinet for Beam‑Yard JobsNegotiableMOQ: 1 Piece
-
1.5KW Concrete Vibrator for Bridge Precast Components – Efficient Dense CompactionNegotiableMOQ: 1 Piece
-
1.5KW High-frequency Formwork Vibrator 380V With Variable Frequency DriveNegotiableMOQ: 1 Piece
As a manufacturer based in Zhengzhou, Henan, China, Henan Jinhuaiyu Machinery & Equipment Co., Ltd. specializes in producing reliable concrete vibration solutions for formwork applications. Our Attached Concrete Vibrator 1.5KW 150Hz is engineered to deliver strong centrifugal force, ensuring optimal concrete consolidation and surface quality. With our factory spanning 1,000–3,000 square meters and a dedicated team of 51–100 employees, we focus on consistent quality and customer satisfaction.
The vibrator is designed to be easily mounted on formwork panels, transmitting high-frequency vibrations directly into the fresh concrete. This eliminates air bubbles, improves density, and enhances the bond between concrete and reinforcement. Key benefits include reduced labor costs, faster project completion, and uniform finish without defects.
Product Features
- Powerful Motor: 1.5KW output ensures reliable performance under heavy loads.
- High Frequency Operation: 150Hz frequency penetrates thick concrete sections efficiently.
- Strong Centrifugal Force: Delivers up to 8,000–12,000 N (exact value customizable) for rapid compaction.
- Durable Construction: Housing made from high-strength steel with anti-corrosion coating, suitable for harsh job sites.
- Easy Installation: Standard mounting brackets allow quick attachment to formwork without special tools.
- Adjustable Settings: Frequency and amplitude can be tuned for different concrete mixes (option available).
- Low Maintenance: Sealed bearings and robust insulation ensure long service life.
Technical Specifications
| Parameter | Value |
| Rated Power | 1.5 kW |
| Frequency | 150 Hz |
| Centrifugal Force | ≥8,000 N (customizable up to 12,000 N) |
| Voltage / Phase | 220V / 380V, 3-phase (50/60Hz compatible) |
| Protection Class | IP54 (dust and splash resistant) |
| Insulation Class | Class F |
| Weight (net) | 28 kg (approx.) |
| Applicable Formwork | Steel, aluminum, wood, and composite panels |
Why Choose Our Attached Concrete Vibrator?
- Enhanced Concrete Quality: Eliminates honeycombing, voids, and surface imperfections.
- Increased Productivity: Vibrates large formwork areas quickly, reducing manual effort.
- Versatile Application: Suitable for precast plants, tunnel linings, bridge decks, and wall formworks.
- Global Reach: Our products are shipped to North America, South America, Europe, Africa, and Asia via Tianjin, Shanghai, or Qingdao ports.
- Reliable After-Sales: Technical support and spare parts available worldwide.
Trust in Our Manufacturing Capabilities: Established in 2025, our factory has quickly gained experience in producing machinery for the construction industry. With annual export value below US$1 million, we focus on building long-term relationships through consistent quality and competitive pricing. We serve diverse markets including domestic China, Eastern Europe, Southeast Asia, and the Middle East. Our team of 51–100 skilled workers ensures every unit meets rigorous quality checks before shipment.
We invite you to contact us for customized solutions or bulk orders. Whether you need a standard 1.5KW model or a tailored frequency/force setting, we are ready to assist. Let our attached concrete vibrator help you achieve superior concrete finishes and faster project turnaround.
Frequently Asked Questions
-
What type of formwork can this vibrator be attached to?
It can be mounted on steel, aluminum, wood, and composite formwork panels using standard brackets. Custom mounting options are available upon request. -
Is the vibrator suitable for thin-walled structures?
Yes, the 150Hz frequency allows gentle yet effective compaction for walls as thin as 100 mm without over-vibration. -
Can the voltage be customized for different countries?
Absolutely. We offer 220V and 380V options, and can adapt to 50Hz or 60Hz supply upon request. -
What is the typical lifespan of this vibrator?
With proper maintenance, the unit can last 3–5 years under normal working conditions. Sealed bearings and high-grade insulation contribute to durability. -
Do you provide a warranty?
Yes, a standard 1-year warranty covers manufacturing defects. Extended warranty options are negotiable. -
How do I choose between attached vibrator and immersion vibrator?
Attached vibrators are best for large formwork areas, precast panels, and situations where access to concrete is limited. Immersion vibrators are more suitable for poured-in-place columns and beams. -
What is the delivery time for bulk orders?
For quantities of 10–50 units, typical lead time is 15–25 days after order confirmation. Express shipment can be arranged for urgent needs. -
Can I get a sample unit for testing?
Yes, sample orders are welcome. You may contact our sales team for pricing and shipping details.
