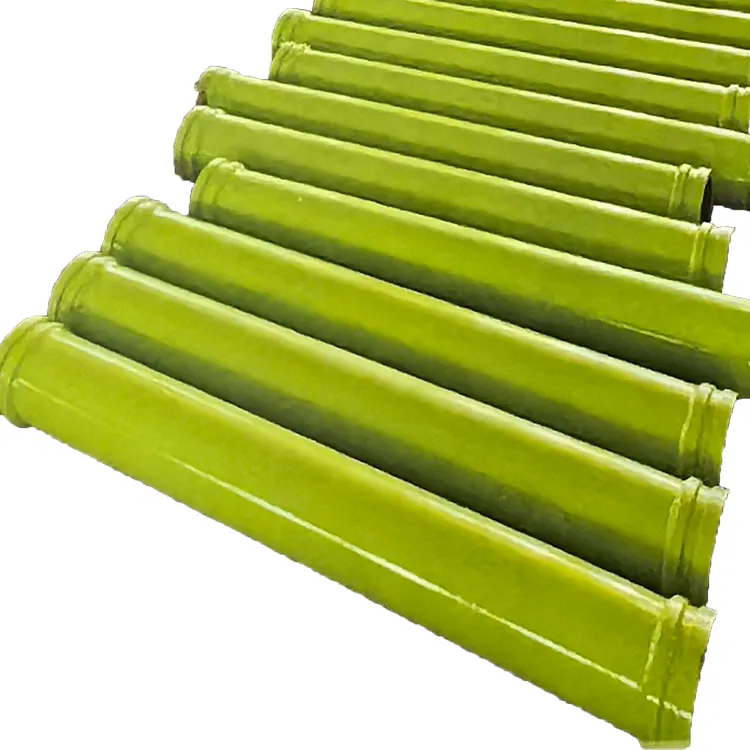

Help CenterWear‑resistant Pump Pipe With Long Service Life for Heavy‑Duty Concrete Transportation
Product Spotlights
Related Products
-
High‑Pressure Concrete Delivery Pipe With Flange Connection for Bridge Construction SitesNegotiableMOQ: 50 Pieces -
Seamless Concrete Pump Line for Long‑Distance Concrete Pumping in Tunnel ProjectsNegotiableMOQ: 50 Pieces
-
DN125 Concrete Pump Pipe for Precast Beam‑Yard Concrete Conveying OperationsNegotiableMOQ: 50 Pieces
-
DN125 Concrete Pump Pipe Seamless Double-layer Wear-resistant 25000m³ Service LifeNegotiableMOQ: 1 Piece
-
DN125 Wear-Resistant Concrete Delivery Pipe for Bridge Construction, 3m Long, Flange ConnectionNegotiableMOQ: 50 Pieces
Henan Jinhuaiyu Machinery & Equipment Co., Ltd. proudly presents our Wear‑resistant Pump Pipe with Long Service Life for Heavy‑Duty Concrete Transportation. As a dedicated manufacturer with a 1,000–3,000 m² facility and a skilled team of 51–100 employees, we specialize in producing robust concrete pump pipes that withstand the toughest job conditions. Our product is engineered to minimize downtime and maximize throughput, offering a superior lifespan compared to standard pipes. Built for heavy‑duty applications, this pipe ensures reliable performance in demanding concrete placement projects, from high‑rise buildings to tunnel linings.
The secret behind our pipe’s exceptional durability lies in our proprietary heat treatment process and high‑strength alloy steel selection. Every pipe undergoes strict quality control, ensuring consistent wall thickness and uniform hardness. Whether you are pumping high‑abrasion concrete or working in extreme environments, our pipe delivers reduced wear, fewer replacements, and lower total cost of ownership. Experience the difference of a pipe built to last.
Key Features & Technical Specifications
- Wear‑Resistant Liner: Special alloy inner layer hardfaced to resist abrasion, extending service life by 3–5 times over ordinary steel pipes.
- High‑Strength Outer Shell: Seamless or welded steel tube with optimized wall thickness to withstand high pumping pressure (up to 20 MPa).
- Precision Machined Ends: Flanges, grooves, or welded ends available – all machined to tight tolerances for leak‑free connections.
- Uniform Hardness: Through quenching and tempering, the full pipe body achieves a consistent hardness of 55–62 HRC (optional).
- Flexible Length Options: Standard lengths of 3 m and 6 m, with custom lengths available upon request.
- Corrosion Resistance: Optional hard chrome coating or epoxy lining for aggressive concrete mixes.
- Easy Maintenance: Simple to replace and rotate, reducing on‑site downtime.
| Parameter | Std. Value | Custom Range |
|---|---|---|
| Diameter (DN) | DN125 | DN100 – DN200 |
| Wall Thickness (mm) | 8 mm | 6 – 12 mm |
| Working Pressure (MPa) | 15 MPa | ≤20 MPa |
| Length (m) | 3 m / 6 m | 1 – 12 m |
| Hardness (HRC) | 58 ± 3 | 52 – 62 |
| End Connection | Flanged (EN 1092) | Grooved / Welded / Custom |
Why Choose Our Wear‑Resistant Pump Pipe?
- Extended Service Life: Field reports from Southeast Asia and Africa show our pipes lasting 1.5 to 2 times longer than conventional pipes in same conditions.
- Cost‑Effective: Fewer replacements mean lower material costs and reduced labor for change‑outs.
- Versatile Compatibility: Fits most major concrete pump brands (Putzmeister, Schwing, Zoomlion, etc.) with adapter options.
- Global Shipping: We export from Tianjin, Shanghai, Qingdao, and other Chinese ports to markets worldwide (North America, South America, Europe, Middle East, etc.).
- Quality Assurance: Every pipe is pressure‑tested and hardness‑checked before shipment.
Our manufacturing facility in Zhengzhou, China, covers 1,000–3,000 square meters and employs over 50 skilled workers. With annual export value growing, we have satisfied customers in North America, South America, Europe, Africa, and Oceania. We understand the challenges of heavy‑duty concrete transportation — that’s why we use only premium raw materials and invest in advanced heat treatment technology. From initial inquiry to after‑sales support, our team provides responsive service and technical guidance.
Ready to upgrade your concrete pumping efficiency? Contact us today to request a quote or sample. Benefit from factory‑direct pricing, customizable specifications, and a reliable partner that prioritizes your project’s success. Your heavy‑duty concrete transportation deserves a pipe that won’t let you down.
Frequently Asked Questions (FAQ)
Q1: What is the typical lifespan of this pump pipe compared to standard pipes?
A: Under normal heavy‑duty concrete pumping conditions, our wear‑resistant pipe can last 2–3 times longer than standard mild steel pipes, thanks to the hardened liner. Actual lifespan depends on concrete mix, pressure, and operating environment.
Q2: Can I get custom diameters and lengths?
A: Yes, we offer custom diameters from DN100 to DN200 and lengths from 1 m to 12 m. Please contact our sales team with your specific requirements.
Q3: Are your pipes compatible with Putzmeister and Schwing pumps?
A: Absolutely. Our pipes use standard flange dimensions and can be supplied with adapter rings or grooved ends to fit most major pump brands.
Q4: What surface treatments are available to protect against corrosion?
A: We offer optional hard chrome coating, epoxy lining, or zinc‑plating for improved corrosion resistance. Please specify your preference when ordering.
Q5: Do you provide samples for testing?
A: Yes, sample pipes (standard sizes) are available. The sample cost and freight are negotiable, and we can deduct the cost from your first bulk order.
Q6: What is your usual delivery time?
A: For standard sizes, delivery is typically 15–20 working days after order confirmation. Custom orders may require 25–30 working days depending on specifications.
Q7: Do you offer a warranty?
A: Yes, we provide a 12‑month warranty against manufacturing defects. Wear and tear from normal use is not covered, but our pipes are designed to exceed normal service life.
Q8: Can you ship to my country?
A: We ship to all major regions worldwide via Tianjin, Shanghai, Qingdao, or other Chinese ports. We have experience exporting to North America, South America, Europe, Africa, the Middle East, and Asia. Contact us for a shipping quote.
Still have questions? Our team at Henan Jinhuaiyu Machinery & Equipment Co., Ltd. is ready to assist. With a factory of 1,000–3,000 m² and over 50 employees, we combine agility with expertise to deliver high‑quality concrete pump pipes. Trust our product for your most demanding projects.
