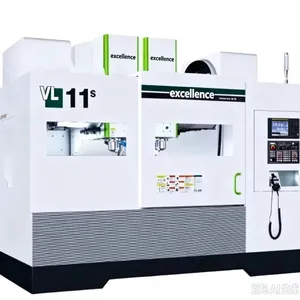

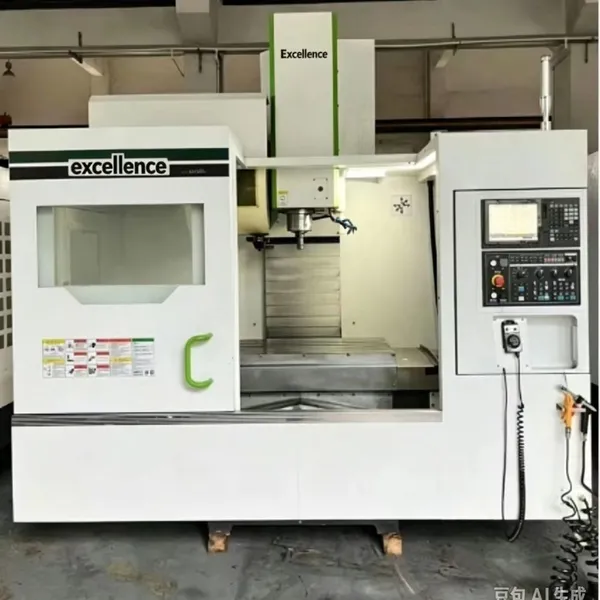

Help CenterDouble Head CNC Milling Machine With 800mm x 600mm Work Table, T-Slots, and Water Cooling System for Efficient Machining
Product Spotlights
Related Products
-
Double Head CNC Milling Machine for Small Batch Production of Metal Components and Customized PrototypesUS$ 20000 - 100000MOQ: 1 Set -
5.5kW Heavy Duty Double Head CNC Milling Machine With Servo Motors and Automatic Lubrication System for Continuous OperationUS$ 20000 - 100000MOQ: 1 Set
-
2.2kW Air-Cooled Double Head CNC Milling Machine for Aluminum Profile and Plastic Cutting With 15000rpm Spindle SpeedUS$ 20000 - 100000MOQ: 1 Set
-
Heavy-Duty Carves-Milling Machine, 7.5kW Spindle, 24000rpm, Linear Guideways, 1000x1200mm, CE CompliantNegotiableMOQ: 1 Unit
-
Carves-Milling Machine With 1-Year Warranty, Factory Calibration, Mill Test Report IncludedNegotiableMOQ: 1 Unit
Welcome to Suzhou Excellence Intelligent Technology Co., LTD — your reliable partner in precision machining. Established in 2013 and ISO9001 certified, we bring over a decade of expertise to the global market. Our Double Head CNC Milling Machine with an 800mm x 600mm work table is engineered to boost productivity while maintaining uncompromised accuracy. Whether you're in mold making, automotive parts, or custom metal fabrication, this machine delivers dual-spindle efficiency, extended table capacity, and a robust water cooling system for sustained high-performance operation.
This machine is designed for manufacturers who demand speed without sacrificing quality. The double-head configuration allows simultaneous machining of two identical workpieces or performing roughing and finishing in a single cycle, effectively cutting cycle time by up to 50%. The 800mm x 600mm work table, equipped with standard T-slots, provides ample clamping flexibility for various workpiece sizes and shapes. Combined with a water cooling system that maintains optimal spindle temperature, you can run continuous heavy-duty jobs with consistent precision.
Key Features & Specifications
- Dual Spindle Design: Two independent spindles enable parallel machining, dramatically improving throughput. Each spindle can be controlled separately or synchronized for symmetrical parts.
- 800mm x 600mm Work Table: Wide working area accommodates large or multiple small parts. Standard T-slots (width 14mm, pitch 100mm) allow easy fixture mounting and quick changeovers.
- Water Cooling System: Built-in water cooling circulates coolant around the spindles to dissipate heat, extending spindle life and maintaining accuracy during prolonged operations.
- High-Rigidity Structure: Cast iron bed and column with stress relief treatment minimize vibration, ensuring superior surface finish and long-term stability.
- Precision Linear Guideways: All axes adopt imported linear guides and ball screws with preload, achieving positioning accuracy of ±0.005 mm and repeatability of ±0.003 mm.
- Flexible Control Options: Compatible with popular CNC controllers such as FANUC, Siemens, or Syntec (customer-configurable).
- Automatic Lubrication System: Reduces manual maintenance and guarantees consistent lubrication of moving parts.
- Safety & Ergonomic Design: Full enclosure splash guard, emergency stop, and interlock switches comply with international safety standards.
Technical Parameters (Typical Configuration)
| Parameter | Value |
|---|---|
| Work Table Size | 800mm x 600mm |
| T-Slot (Width x Pitch) | 14mm x 100mm, 4 slots |
| Spindle Speed (per head) | 24000 rpm (optional 18000/30000) |
| Spindle Power (each) | 5.5 kW (optional 7.5 kW) |
| Rapid Feed Rate (X/Y/Z) | 30/30/20 m/min |
| Positioning Accuracy | ±0.005mm |
| Repeatability | ±0.003mm |
| Cooling System | Water circulation with chiller |
| Machine Weight | Approx. 3,000 kg |
Benefits Your Business Gains
- Higher Productivity: Doubles output per hour compared to single-spindle machines, reducing labor and overhead costs.
- Consistent Precision: Thermal stability ensured by water cooling keeps tolerances tight even during long runs.
- Versatile Clamping: T-slots allow quick setup of vises, fixtures, and custom jigs for different jobs.
- Reduced Downtime: Automatic lubrication and reliable components minimize maintenance interruptions.
- Wide Material Compatibility: Suitable for aluminum, brass, steel, stainless steel, plastics, and composites (with appropriate tooling).
Trust in Suzhou Excellence
Since 2013, our factory spanning 3,000–5,000 square meters has been dedicated to manufacturing high-precision CNC solutions. With an annual export value of US$5–10 million, we serve customers across North America, Europe, Southeast Asia, Africa, Oceania, and the Middle East. Each machine undergoes rigorous quality checks and comes with ISO9001 certification. We offer comprehensive after-sales support, including remote diagnostics, spare parts availability, and on-site training upon request. Choose our Double Head CNC Milling Machine to elevate your machining capacity — contact us for a customized quotation or a factory visit.
Frequently Asked Questions
Q1: What materials can this double head milling machine process?
A1: It handles a wide range of materials including aluminum, brass, steel (up to 45 HRC), stainless steel, acrylic, wood, and engineering plastics. For harder materials, we recommend using appropriate cutting tools and coolant mixtures.
Q2: How does the water cooling system benefit the machining process?
A2: Water cooling effectively removes heat from the spindles, preventing thermal expansion that can cause dimensional errors. It also extends spindle bearing life, allowing continuous high-speed operation without overheating.
Q3: Can I use different spindle speeds for each head?
A3: Yes, each spindle is independently controlled, so you can run one at high speed for finishing and the other at lower speed for roughing, or synchronize them for identical operations.
Q4: What is the maximum workpiece weight the table can handle?
A4: The recommended maximum load is 500 kg evenly distributed. For heavier parts, please consult our engineering team for potential upgrades.
Q5: Which CNC control systems are compatible?
A5: We can equip the machine with FANUC, Siemens, or Syntec controllers based on your preference. Each controller offers user-friendly interfaces and rich macro support.
Q6: Do you provide installation and training services?
A6: Yes, we offer on-site installation and commissioning for overseas customers (travel expenses apply). Remote video training is also available to help your team get started quickly.
Q7: What is the typical lead time for this machine?
A7: Standard models are typically delivered within 30–45 working days after order confirmation. Custom configurations may require additional lead time. We ship via ports in Shanghai, Ningbo, Shenzhen, or Qingdao.
Q8: What warranty do you offer?
A8: We provide a 12-month warranty covering manufacturing defects. Extended warranties are available upon request. Our service team responds within 24 hours for any technical inquiries.
