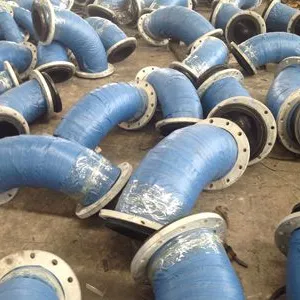

Help CenterThreaded Union Type Flexible Rubber Soft Joint Connector for Piping System Vibration Damping
Product Spotlights
Related Products
-
EPDM Double Sphere Flexible Rubber Expansion Joint With Flange Connector for Axial Movement CompensationNegotiableMOQ: 1 Piece -
Epoxy Coated 4-Bolt Ductile Iron Flange Adaptor With Rubber Gasket Flexible Coupling for Water Sewage and Industrial PipingNegotiableMOQ: 1 Piece
-
Threaded Rubber Soft Joint Union Type Flexible Connector for Water and Air Pipe ConnectionsNegotiableMOQ: 1 Piece
-
EPDM Threaded Union Type Flexible Rubber Joint Connector for Fire Protection Piping SystemNegotiableMOQ: 1 Piece
-
Fireproof Flexible Duct Connector for High Temperature Resistant Air Ventilation SystemsNegotiableMOQ: 1 Piece
Hebei Speed Torque Transmission Technology Co., Ltd., established in 2017, is a professional manufacturer of flexible rubber joints and transmission components. Our factory spans 3,000–5,000 square meters and employs 101–200 skilled workers, focusing on producing high-quality piping system connectors. The Threaded Union Type Flexible Rubber Soft Joint Connector is designed to solve real-world piping challenges including vibration, noise, thermal expansion, and minor misalignment, making it a reliable component for industrial and commercial piping systems.
This connector combines a durable rubber body with a threaded union end design, allowing quick and secure installation without special flanging tools. It provides excellent flexibility while maintaining pressure retention, accommodating slight axial, lateral, and angular movements. Whether used in pump connections, HVAC systems, water treatment plants, or chemical pipelines, this flexible rubber soft joint helps extend the service life of your entire piping system by isolating destructive vibrations and reducing stress on adjacent equipment.
Key Features & Benefits
Vibration Damping: The rubber element effectively absorbs mechanical vibrations from pumps, compressors, and other rotating equipment, protecting piping and instruments.
Noise Reduction: Aids in lowering fluid-borne noise and structural noise, creating a quieter environment in buildings and plants.
Threaded Union Design: Simplifies installation and disassembly, reducing downtime during maintenance and replacement.
Flexibility: Allows limited axial, lateral, and angular movement to accommodate thermal expansion, contraction, and minor pipe misalignment.
Corrosion Resistance: The rubber material resists many chemicals, water, ozone, and UV degradation, making it suitable for various media.
Pressure Handling: Engineered with an internal reinforcement layer for stable performance under dynamic pressure conditions.
Durable Construction: The outer rubber cover protects the internal layers from external damage and environmental aging.
Technical Specifications
| Parameter | Value / Range |
|---|---|
| Nominal Diameter | DN20 – DN300 |
| Working Pressure | 1.0 MPa – 2.5 MPa (customizable upon request) |
| Temperature Range | -10°C to +100°C (depending on rubber compound) |
| Connection Type | Threaded union (BSP / NPT optional) |
| Rubber Material | EPDM, Neoprene, NR, or custom compounds |
| Flange / Insert Material | Ductile iron, carbon steel, or stainless steel (optional) |
| Standards / Certification | Manufactured in accordance with ISO9001 management system |
| Application Media | Water, oil, air, and mild chemicals |
Why Choose This Flexible Rubber Soft Joint?
In any piping system, mechanical vibrations and thermal movements are unavoidable. Without proper damping, these forces can cause premature joint failure, pipe fatigue, and leakage. Our threaded union flexible rubber soft joint acts as a buffer between rigid pipe sections and equipment, absorbing shock and allowing gentle movement. This reduces the risk of damage to valves, flow meters, and pumps.
Compared to rigid couplings, this product offers a lightweight yet rugged solution. The rubber body is reinforced with high-tensile synthetic fabrics, giving it strength and shape stability under pressure. The threaded union provides a leak-resistant seal and allows rapid assembly. This makes it an excellent alternative to flange connections in tight spaces where welding or bolting is inconvenient.
Applications
Water supply and drainage systems
HVAC systems and fan coil units
Pump inlet and outlet connections
Compressor and air conditioning piping
Fire protection systems
Industrial process piping
Generator sets and marine piping systems
Our factory in Cangzhou, Hebei, China has developed years of technical expertise in rubber compound mixing, molding, and metal insert machining. We maintain strict quality control through every step, from incoming raw materials to final pressure testing. We understand that different working conditions may require different elastomers, so we offer a range of rubber compounds to suit water, oil, and weak acid/alkali environments. Custom sizes, colors, and connection threads are available upon request.
Quality & Trust
Hebei Speed Torque Transmission Technology Co., Ltd. has grown into a stable exporter with an annual export value between US$5 million and US$10 million. Our products are shipped to North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, Western Europe, and many other regions. We have been serving clients from a wide range of countries, demonstrating our capability to meet international packaging and delivery requirements.
With a total of 101–200 employees and a factory area of 3,000–5,000 square meters, we possess a responsive production team and an efficient supply chain. We are certified under ISO9001, and we maintain this quality management standard in every process. Our main export ports are Shanghai, Tianjin, and Qingdao, offering convenient logistics options for both FCL and LCL shipments.
We believe a good quality pipe connector should be both affordable and reliable. Our pricing, combined with consistent quality, has created long-term cooperation with many distributors and engineering companies. We encourage you to contact us for more details, samples, or a customized solution. Our technical team is ready to assist with your project specifications and provide a fast response.
Frequently Asked Questions
Q1: What is the main purpose of a threaded union flexible rubber joint?
A: Its main purpose is to absorb vibration, reduce noise, compensate for small thermal expansion or contraction, and prevent misalignment stress in piping systems. The flexible rubber element allows limited movement while maintaining a tight seal and flow continuity.
Q2: Can this joint be used with high-temperature fluids?
A: Standard models are rated from -10°C to +100°C. If you need continuous operation at higher temperatures, we can recommend a special rubber compound or discuss your conditions. Please provide your fluid temperature and medium when inquiring.
Q3: Are the threaded ends available in different standards?
A: Yes. Threaded ends can be supplied in BSP, NPT, or other standard thread types. Thread sizes correspond to the nominal bore of the connector, but custom adapters can be discussed.
Q4: Is this connector suitable for potable water systems?
A: We offer rubber compounds that are suitable for potable water contact. However, you should verify local regulations and inform our sales team about the water quality and certification requirements. Let us know your application so we can supply the right material.
Q5: How long is the product life under normal working conditions?
A: The service life depends on factors like media, temperature, pressure, and exposure to ozone or UV. Under mild water conditions and proper installation, the rubber joint can last many years. Regular inspection and avoiding exposure to incompatible chemicals will extend its life.
Q6: Can I install this joint vertically or horizontally?
A: Yes. The connector can be installed in any orientation. However, for vertically mounted long pipe runs, you should consider using proper hangers and supports to avoid excessive weight on the joint.
Q7: Do you provide OEM or custom branding?
A: Yes. We provide OEM and custom packaging options. Color of the rubber cover and printing of logos can be customized based on your requirements and minimum order quantity. Please contact us with your design.
Q8: What is the minimum order quantity and lead time?
A: The minimum order quantity varies with size and material. Standard sizes usually have low MOQs, and lead time for production typically ranges from 15 to 30 days after deposit. For urgent orders, we may be able to arrange faster delivery upon discussion.
