XZFT Attachments excavator rotatory stone grapple:
Product description:

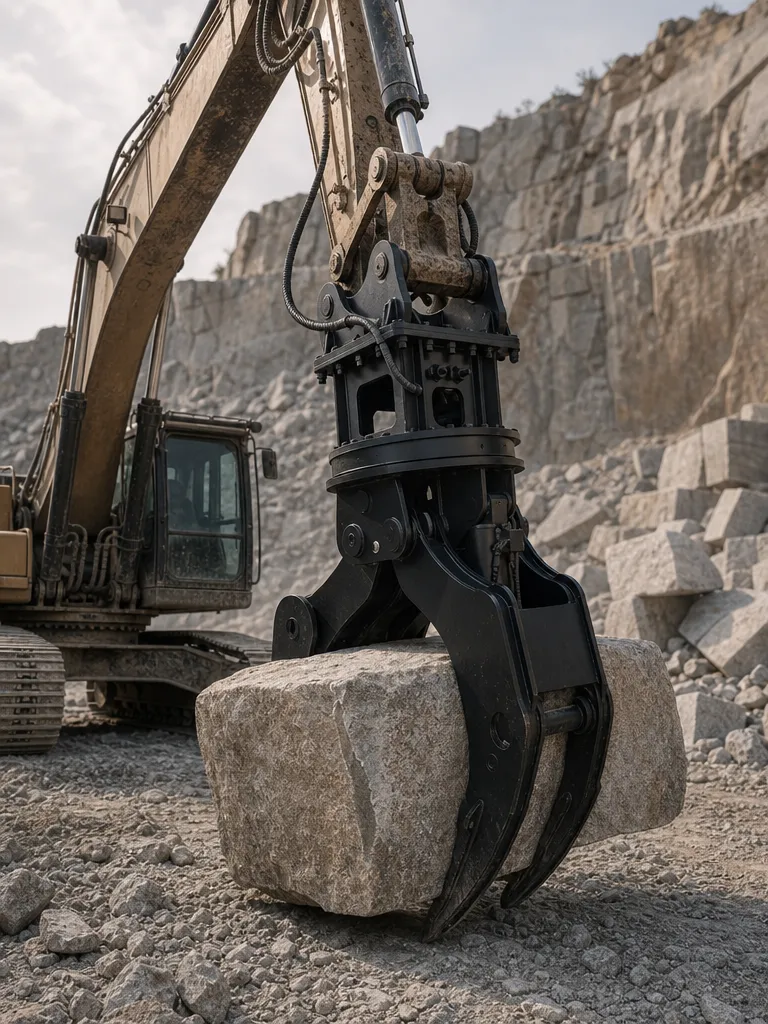

Stone blocks are picked, turned and set down on the face they are wanted on, so a block is placed at the angle it is needed at.
Riprap and embankment stone are placed piece by piece, so the stone is set where the drawing calls for it rather than tipped in bulk.
Kerb and paving stone are lifted and set along a line, so the units are placed in position instead of being nudged there.
Broken concrete and demolition rubble are picked and sorted as they are handled, so material leaves the pile in separate streams.
Pipes and precast sections are picked and set into a trench, so the piece is lowered onto the bedding rather than dragged into it.
Advantages:
Made of alloy manganese steel, with high wear resistance and long service life.
Equipped with high-torque hydraulic motor and brake function, enabling flexible and efficient grabbing with large capacity per operation.
Built-in lock valve on the oil cylinder prevents claw drop and material fall, ensuring safer operation.
Product Parameters:
| Item/Model | Unit | XZFT40A | XZFT60A |
XZFT60AP | XZFT150A | XZFT150AP | XZFT220A | XZFT220AP | XZFT300A |
| Suitable forexcavator | ton | 4-5 | 6-9 | 6-9 | 9-16 | 12-18 | 18-26 | 20-28 | 28-35 |
| Weight | kg | 320 | 435 | 510 | 950 | 1200 | 1800 | 2300 | 2130 |
| Opening A | mm | 1060 | 1400 | 1400 | 1600 | 1600 | 2100 | 2100 | 2500 |
|
Working pressure |
bar | 110-140 | 200-240 | 200-240 | 220-260 | 220-260 | 240-280 | 240-280 | 260-300 |
|
Working flow |
lpm | 30-55 | 100 | 100 | 160 | 160 | 200-250 | 200-250 | 220-280 |
|
Rotation diameter |
mm | 360 | 360 | 360 | 593 | 593 | 752 | 752 | 752 |
Application：

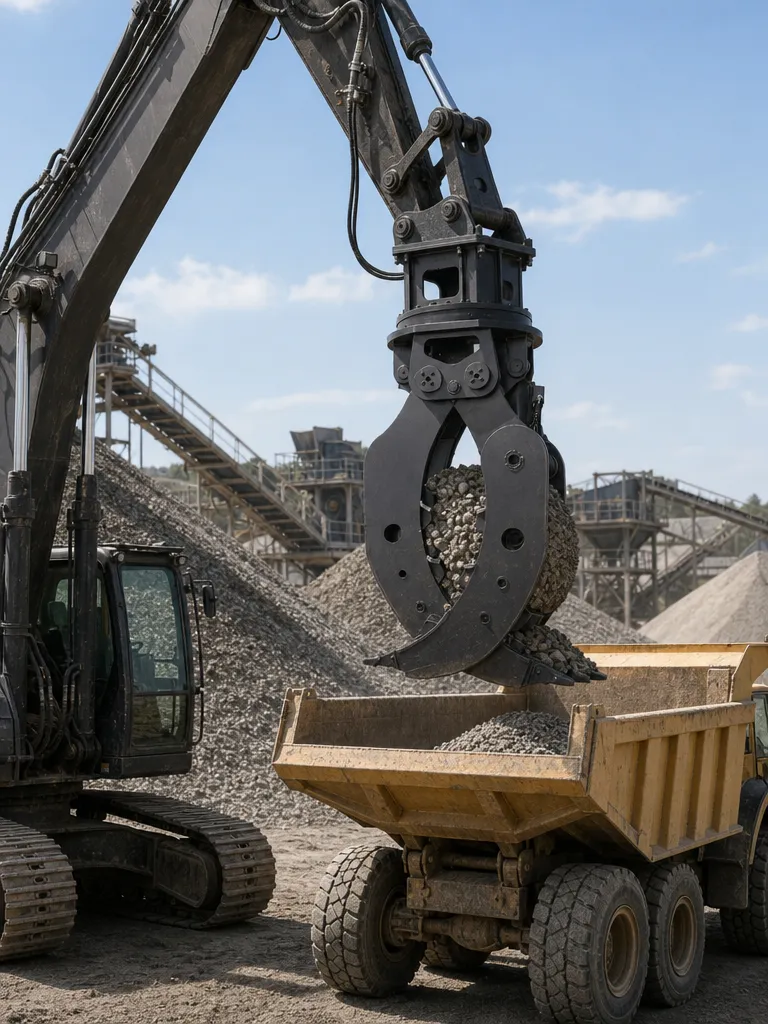

Steel mills and smelters: Loading/unloading of steel, ore, scrap steel.
Ports and terminals: Handling and transfer of heavy materials like building materials and stones.
Forestry and lumber yards: Transportation and stacking of wood, stones.
