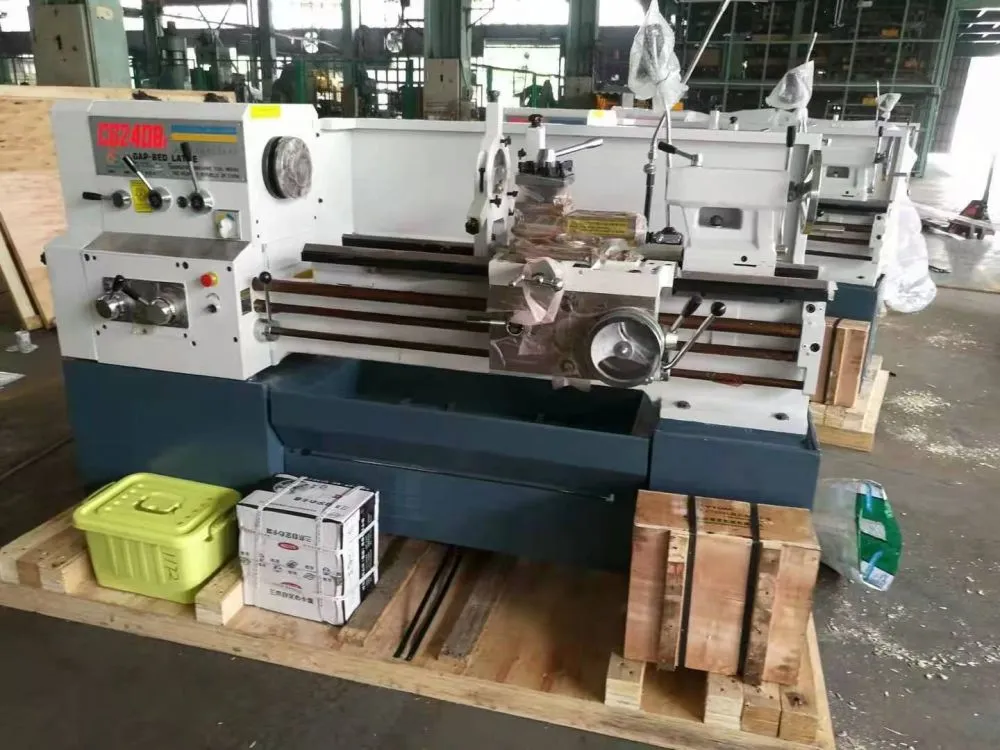

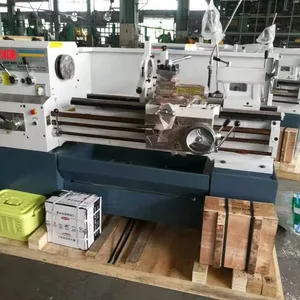

Since 2013, Suzhou Excellence Intelligent Technology Co., Ltd. has been supplying reliable machine tools to workshops and factories around the world. This semi-automatic center lathe, equipped with an 8-inch chuck, a 1500mm bed length, a 400V AC power supply and PLC control, is designed to handle a wide range of turning, facing, boring and threading operations with consistent quality. The combination of a traditional center lathe structure and programmable semi-automatic cycles gives operators better control over cutting parameters and reduces repetitive work. Whether you are producing shafts, flanges, bushings or other cylindrical components, this lathe provides a dependable and economical solution for small-batch and medium-volume production.
Reliable Semi-Automatic Operation
The PLC control system lets you set the spindle start, stop, feed sequence and cutting passes for each cycle. This reduces the chance of human error and ensures every workpiece repeats the same machining pattern. The operator can switch between manual and semi-automatic modes, making setup and adjustment simple for different jobs. This feature is especially valuable when producing parts with tight tolerances, as consistent cutting conditions directly improve surface finish and dimensional stability.
Big Chuck Capacity and Long Bed
The 8-inch chuck securely grips workpieces up to a practical diameter for medium-duty turning. The 1500mm bed length allows you to machine longer shafts and bars between centers, which is essential for pump shafts, motor shafts, roller shafts and similar parts. The hardened and ground bed ways provide stable support under heavy cutting loads, helping to maintain accuracy throughout the entire bed travel.
Operational Flexibility
This center lathe can perform external turning, internal boring, facing, grooving, threading and taper cutting. By using the compound rest and tailstock, operators can quickly set up between-center turning. The gearbox provides a range of spindle speeds and feed rates, allowing the machine to work with carbon steel, alloy steel, stainless steel, aluminum and cast iron. All main controls are arranged for convenient access, so the operator can comfortably manage the machining process.
| Parameter | Value |
|---|---|
| Machine Type | Semi-Automatic Center Lathe |
| Chuck Size | 8 inches (approximately 200 mm) |
| Bed Length | 1500 mm |
| Power Supply | 400V AC, 3-phase |
| Control System | PLC-based semi-automatic system |
| Operation Mode | Manual / Semi-automatic |
| Typical Applications | Turning, facing, boring, threading |
| Optional Equipment | Steady rests, faceplates, coolant system, digital readout |
Precision and Stability
The machine structure is rigidly designed to reduce vibration and thermal deformation. Precision spindle bearings support the main spindle, delivering smooth rotation at selected speeds. The closed box-type bed and reinforced base further enhance stiffness. These characteristics help you achieve dependable machining results even on continuous production shifts.
Productivity and Operator Convenience
The semi-automatic cycle reduces manual intervention during cutting. After the first setup, the PLC controls the sequence, so multiple identical parts can be produced faster. This lowers the skill requirement for routine operations while allowing experienced technicians to adjust parameters for complex jobs. The ergonomic layout of handwheels and levers reduces fatigue, supporting longer working hours with fewer mistakes.
Safety and Maintenance
Safety is an important consideration for any workshop machine. This lathe is equipped with protective devices such as emergency stop buttons and splash guards, and the electrical cabinet is designed to meet IP requirements based on local standards. Daily lubrication points are easy to access, and the control system provides clear fault indications. Regular maintenance is straightforward, ensuring low downtime and longer service life.
Applications
This semi-automatic center lathe is suitable for general machining shops, maintenance departments, agricultural machinery repair, parts manufacturing and vocational training centers. It can be used for single-piece repair work as well as small-batch production because the semi-automatic function improves consistency without sacrificing flexibility.
- Turning stepped shafts and sleeves
- Facing flanges and discs
- Boring holes with the boring bar
- Cutting metric and inch threads
- Chamfering and grooving
- Between-center part support with tailstock center
Quality Management
Suzhou Excellence Intelligent Technology Co., Ltd. organizes its business process under an ISO9001 quality management system, which covers sales support, inspection coordination and after-sales communication. Before shipping, every lathe is checked for control functions, spindle rotation and basic alignment. We work with established production partners and provide clear technical documentation to help you set up the machine quickly.
Cost-Effective Machining
This machine fills the gap between a completely manual lathe and a full CNC lathe. It offers a moderate investment while delivering repeatable cycles, which is suitable for workshops that want to increase productivity without complex programming or a full-time CNC operator. The PLC logic is transparent and easy to modify for commonly repeated jobs, while the manual override remains available for repair work and one-off parts.
Technical Support and Documentation
We provide an operation manual, electrical schematic and test certificate with each machine. The PLC control wiring is labeled for easy troubleshooting. Our support team can also assist by email or video call to help with initial installation, parameter adjustment and maintenance guidance. Remote assistance has proven to be especially helpful for overseas customers who need quick answers.
Customization Services
Different markets may have different power grids, automation levels and safety requirements. The machine can be supplied with optional dual-voltage motors, additional safety interlocks or a digital readout for easier measurement. If you need a customized bed length, tailstock or chuck type, please send your inquiry and our team will evaluate the feasibility.
Trusted Export Partner
As a company founded in 2013, with a factory area of 3,000-5,000 square meters and an annual export value of US$5-10 million, Suzhou Excellence Intelligent Technology Co., Ltd. has accumulated solid experience in supplying machine tools to international markets. Our main markets include North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, the Middle East, East Asia, Western Europe, Central America and South Asia. We ship through Shanghai, Ningbo, Shenzhen and Qingdao ports, providing flexible logistics arrangements for our customers. If you need a practical and durable semi-automatic center lathe with responsive support, please contact us for more information and a quotation.
Frequently Asked Questions
Q1: What workpiece sizes can this lathe handle?
The 8-inch chuck can hold typical workpieces up to a practical medium-duty turning diameter, while the 1500mm bed length supports long shafts and bars. The actual maximum swing and distance between centers should be confirmed with our sales team before ordering, as different optional configurations may affect these values.
Q2: Can the lathe perform thread cutting?
Yes, this center lathe is designed for both metric and inch thread cutting. Please let us know your required thread standards and pitch ranges during the inquiry so the machine can be correctly configured.
Q3: What power supply does the machine need?
The standard voltage is 400V AC three-phase. If your local grid uses another voltage or frequency, please inform us; optional transformers or motor configurations may be possible.
Q4: Is the PLC program easy to adjust?
The PLC settings are organized for simple cycle modification. A technician familiar with basic ladder logic can adapt the sequence for different cutting passes. We can also provide guidance and documentation to support your team.
Q5: What optional accessories can be supplied?
Optional items include a four-jaw chuck, faceplate, steady rest, coolant system, chip tray, digital readout and tool posts. Please indicate your requirements when ordering so we can include them in the quotation.
Q6: What safety devices are included?
The lathe normally includes emergency stop buttons, a foot brake, a chuck guard and electrical overload protection. The exact list may follow the safety standard required by your destination country, so please clarify the regulatory requirements.
Q7: How is shipment arranged?
The machine can be shipped from Shanghai, Ningbo, Shenzhen or Qingdao port. Our logistics team will prepare export packing and work with your forwarder or provide a freight quote depending on the order terms.
Q8: Can we get after-sales support?
Yes, our support team is available for email and video-based assistance, including installation guidance, parameter setup and spare parts coordination. We value long-term cooperation and will respond quickly to your requests.
