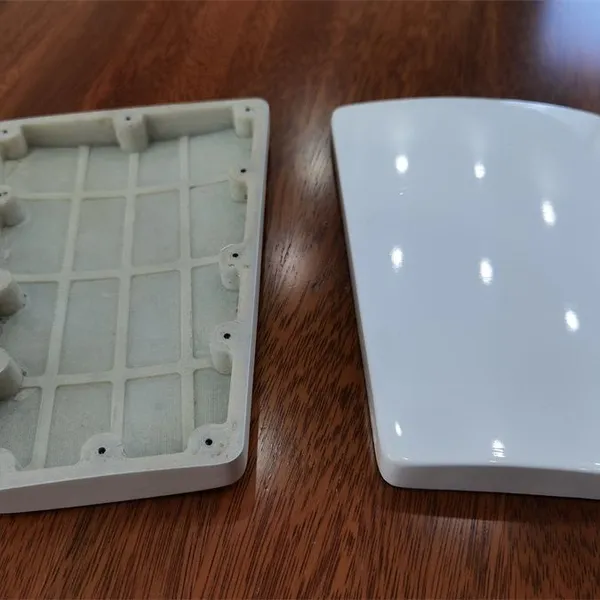

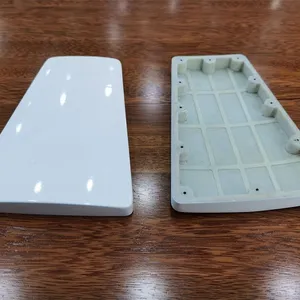

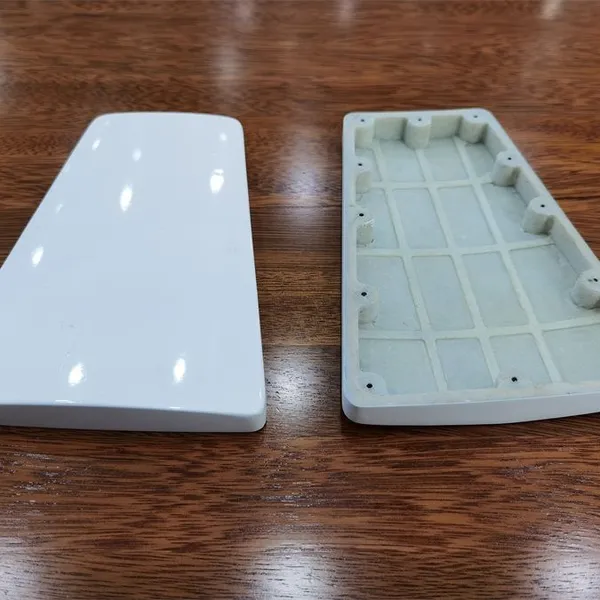

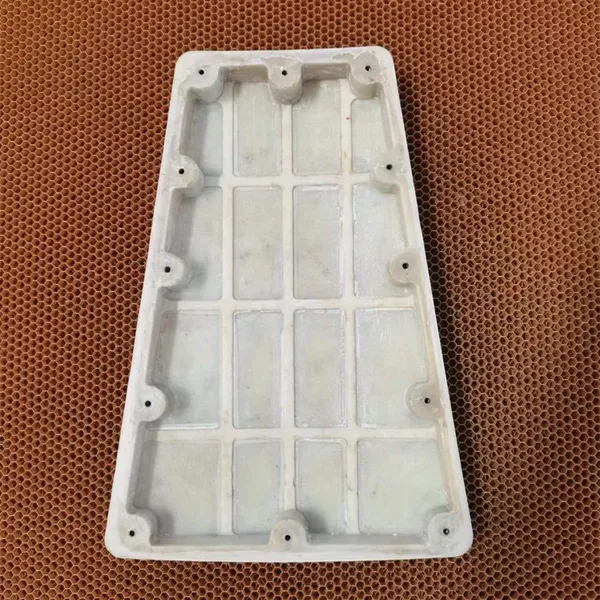

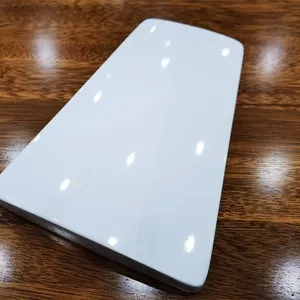

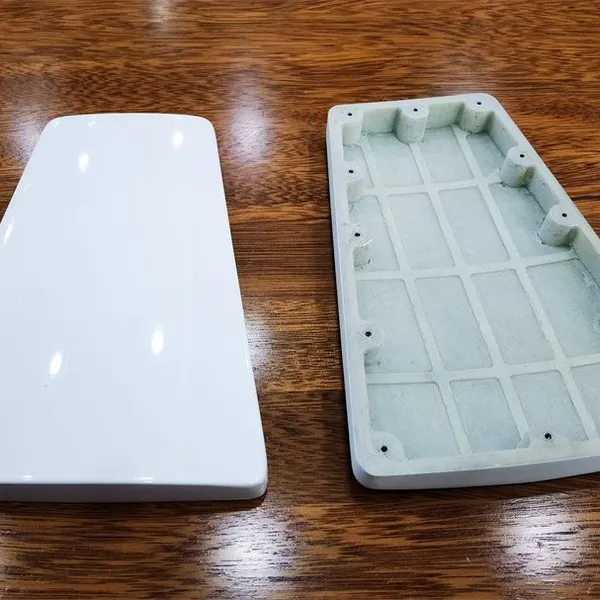

Type 190 Airborne Wave-transmitting Radome
Product Spotlights
Compact 60mm aperture, 95% signal transmittance,
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2007
Factory Size:
5,000-10,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
300 High-Performance RadomeNegotiableMOQ: 1 Piece -
190 Type Airborne FRP Radome 1-4GHz GNSS Antenna Cover Custom Reinforced Transparent Wave ShellNegotiableMOQ: 1 Piece
-
200 Knife Shape FRP Radome 1-4GHz GNSS Antenna Housing Side Pre-drilled Mounting HolesNegotiableMOQ: 1 Piece
-
135 Tubular FRP Radome 1-4GHz GNSS Cylindrical Antenna Protective CoverNegotiableMOQ: 1 Piece
-
60 Mini Cylindrical FRP Radome 1-4GHz GNSS Antenna Cover With Orange Flange BaseNegotiableMOQ: 1 Piece
Product Details
Serial number |
Project |
Features and Specifications |
Serial number |
Project |
Features and Specifications |
Serial number |
Project |
Features and Specifications |
1 |
Name |
Type 190 airborne wave-transparent radome |
8 |
Appearance |
Fluorocarbon paint |
15 |
Dielectric constant |
4.6-4.9 |
2 |
Specifications |
191*131 mm |
9 |
Resin |
Epoxy prepreg |
16 |
Operating frequency |
1 MHz - 4 GHz |
3 |
Housing wall thickness |
2.5 mm |
10 |
fiber |
E-glass fiber |
17 |
Transmittance (or insertion loss) |
≥90% |
4 |
Weight |
0.25kg±0.05kg |
11 |
Nomex honeycomb |
/ |
18 |
Operating temperature |
-40℃–80℃ |
5 |
Structure |
Single-layer |
12 |
Insertion part |
Stainless steel nut 12×M2.5×8 |
19 |
Service life |
≥15 years |
6 |
Material |
Fiberglass |
13 |
Accessories |
/ |
20 |
Detailed dimensions |
See the drawing. |
7 |
Color |
White |
14 |
Packaging |
Thickened cardboard box |
