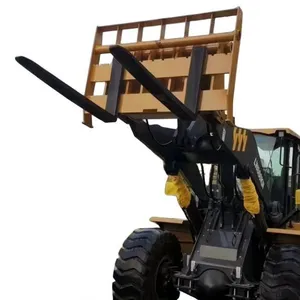

XZFT Attachments skid steer loader pallet fork:
Product description:

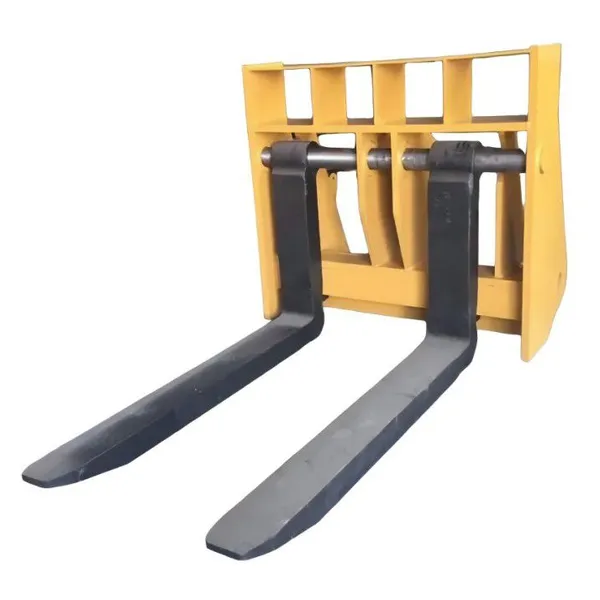

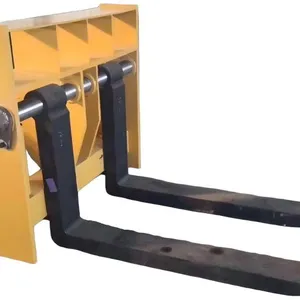

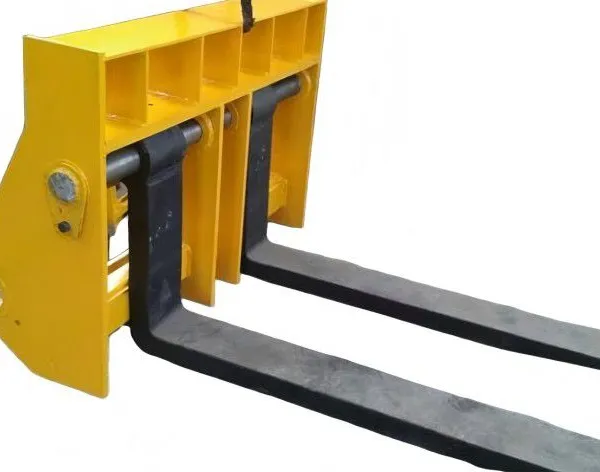

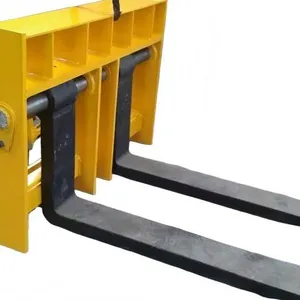

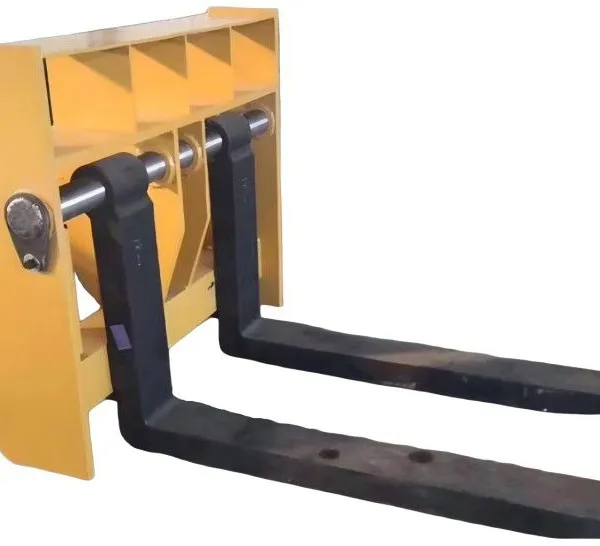

1. Hook on tines, not bolted blades: each tine hangs on the shaft and is held by a pin, so it can be taken off the carriage on its own.

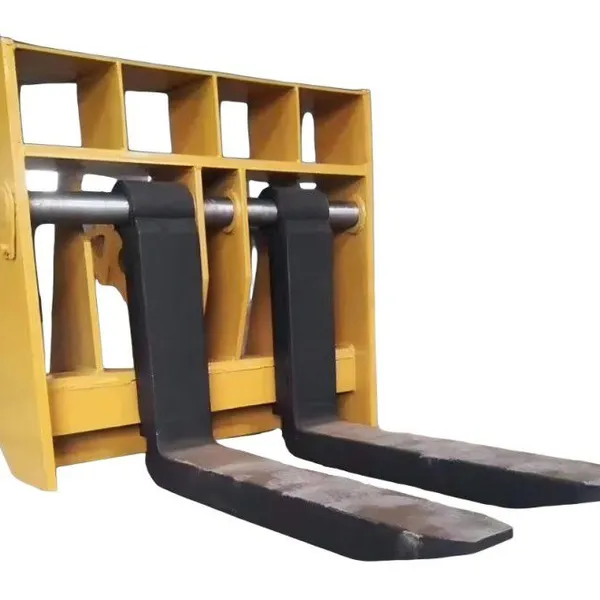

2. The backrest is a grid of bars and not a solid plate, so the driver sees the tips through the openings while the frame still stops the load sliding back.
3. The blade tapers towards its tip, so the fork slides in under a pallet instead of the load being lifted onto the blade.
4. A light carriage against dark tines makes the attachment and the position of its fork tips easy to read on site.
5. No hydraulic cylinder is fitted, so the attachment takes no auxiliary circuit from the carrier, which is the main difference between this and a hydraulic grab.
Advantages:
Designed for skid steer loaders, high versatility, easy installation
Adjustable fork length fits different pallet sizes
Matched load capacity ensures safer operation
Solid structure, impact & corrosion resistant, long service life
Improve handling efficiency and reduce labor cost
Product Parameters:
| Model | XZFT-PFK1200 | XZFT-PFK1520 | XZFT-PFKHD1520 |
| Overall Length (mm) | 1500 | 1680 | 1850 |
| Overall width (mm) | 1360 | 1800 | 1800 |
| Overall height (mm) | 900 | 900 | 950 |
| Overall weight(Kg) | 270 | 450 | 900 |
| Forks Length(mm) | 1200 | 1520 | 1520 |
| Forks thickness(mm) | 40 | 50 | 70 |
| Forks width(mm) | 120 | 130 | 180 |
| Capacity | ≤2tons | 3tons | ≥5tons |
Applications:

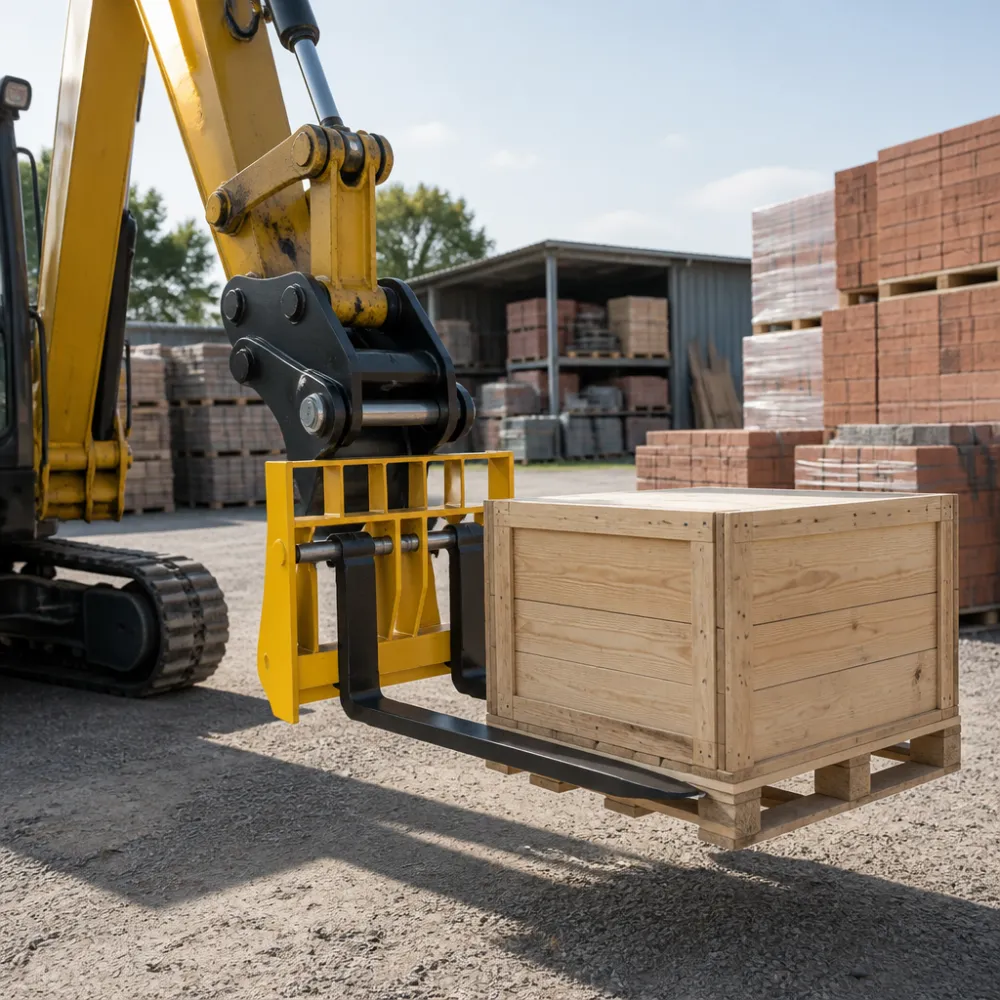

Logistics & warehouse: pallet loading, unloading, stacking
Factory workshop: raw material, semi-finished and finished goods handling
Construction site: building materials, pipes and tools transport
Farm & station: short-distance handling of tools and equipment
