Custom Demister Pad & Demister Disc | 304/316L Stainless Steel Mesh Screen for Gas Liquid Separation | Filtration Equipment & Parts
Metal Oil Water Particle Synthetic Mesh Screen Perforated Strainer Basket Pipe Filter Cartridge

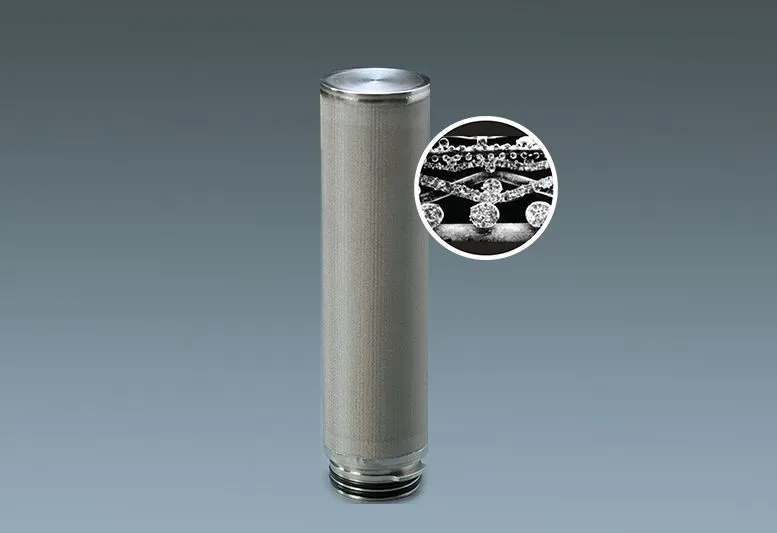

Sintered mesh is a special metal wire mesh , the process is sintered. The mesh is composed of five layer mesh usually. First,a single layer wire mesh is roller flattened uniformly, in order to ensure good joint at the wire cross points. Second multi layer flattened meshes are laminated by special fixture under mechanical pressure in high temperature furnace, the furnace is filled with proprietary inset gas and the temperature is raised to a point ( diffusion-bonded ) then sintering occurs. After controlled-cooling process, the mesh become more rigid, because of all the joint points of individual wire bonding to together. Sintering improves of the characteristics of wire mesh by the combination of heat and pressure.Detailed specification
| Raw Material | Stainless steel 304,304L,304HC,316,316L 321,430 etc. |
| Filter mesh type | Woven mesh,punching mesh,sintered mesh,etched mesh,wedge wire screen |
| Production process | Welding ( argon arc welding,seam welding,spot welding,laser welding) Stamping and drawing Injection molding Wrapping etc |
| Connection way | Interface: 222,226 , threaded,fast Flange flat |
| Filtering rate | 1 micron - 5000 micron |

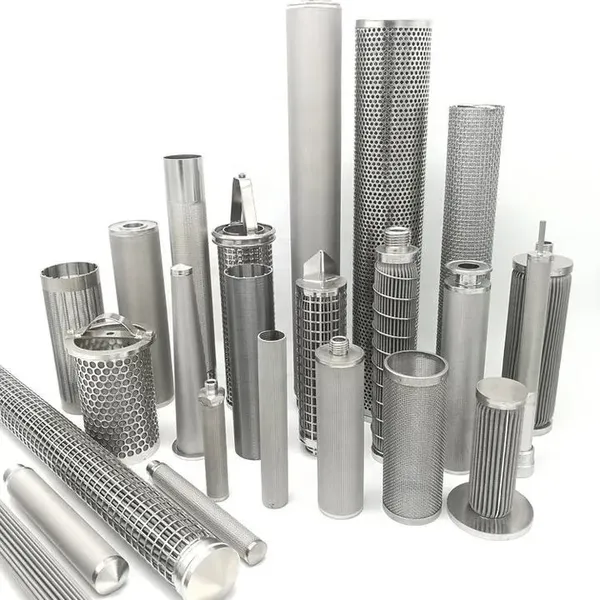

Several popular filter element tube type
-

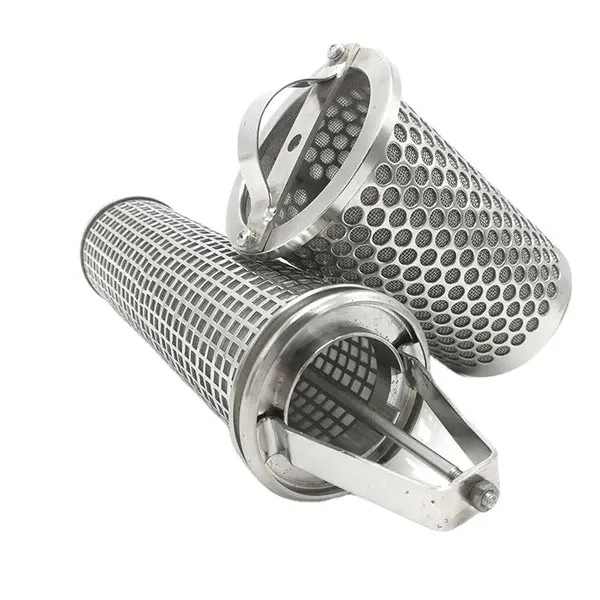

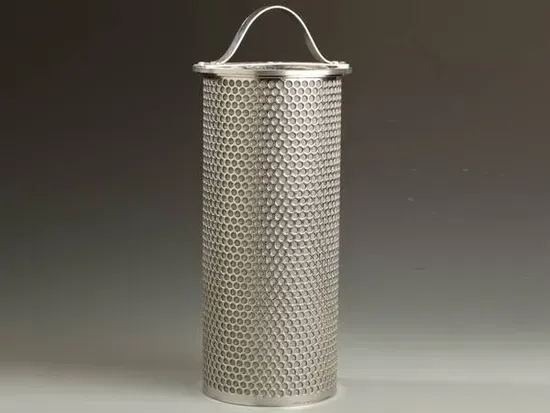

Filter baskets
3. Kinds of filter tube
Drawing for filter elements instruction
Years of experience producing kinds of filter elements,Shanwei accepted customized specification,provide complete technical support ,solution according to customers requirement.
We strictly control production process, monitor test process to ensure production quality.Stainless steel filter tube,filter baskets,cone filter,filter cartridges, filter elements main usages are: filtration,dust removal, separation , widely applied in many industries, such as water treatment,food and beverage , chemical industry, petroleum, etc.
Wire Mesh Filter Cylinder & Stainless Perforated Filter Tube | Demister Pad for Gas Liquid Separation | Filtration Equipment & Parts
Why This Cartridge Over Conventional Alternatives?
Feature This Product Pleated Polymer Cartridge Depth-Wound Cartridge
Reusability Reusable 20+ cycles Single-use Limited reuse
Temperature limit 200°C+ 60–80°C typical 60–80°C typical
Sterilizability Autoclavable, SIP-compatible Limited Not autoclavable
Oil coalescence Intrinsic to mesh design Requires pre-coalescer Poor
Chemical compatibility pH 1–14 Restricted Restricted
Extractables risk None Adhesive/binder risk Fiber migration risk
Bottom line for procurement: This cartridge consolidates particle filtration + oil/water coalescence + disinfectability into a single reusable stainless steel element. For buyers running continuous process streams where downtime and consumable costs are critical, the reusable design delivers a significantly lower total cost of ownership compared to single-use polymer cartridges — while the 304/316 material selection ensures compatibility across potable water, hydrocarbon, and mildly corrosive service conditions.
FAQ
24 hours response to save your time and labor.
We accept OEM service available,such as logo,package etc.
MOQ: common is 100 pcs.
We accept customized design specification.
