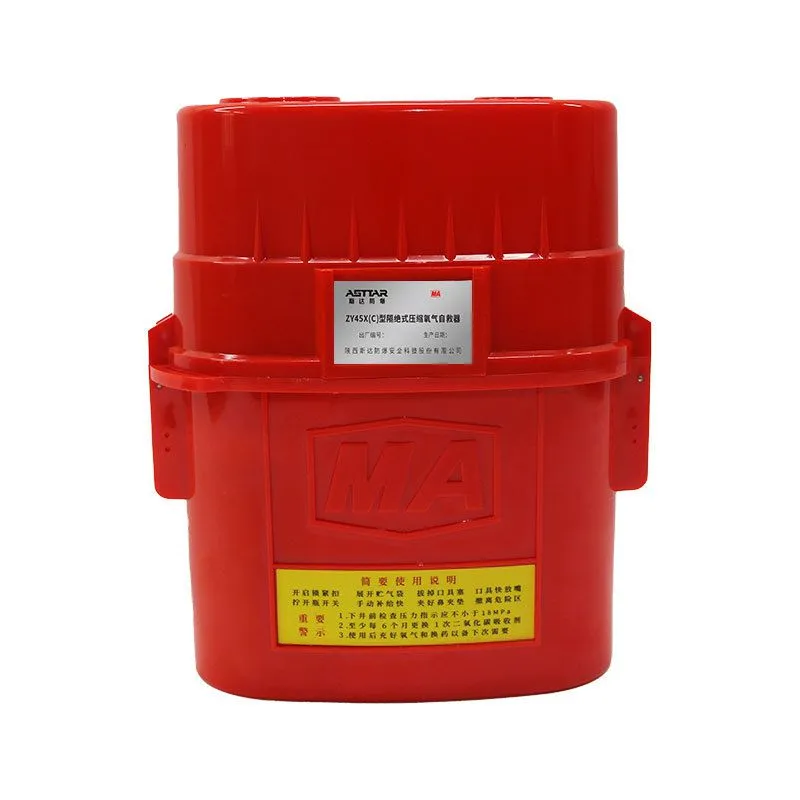

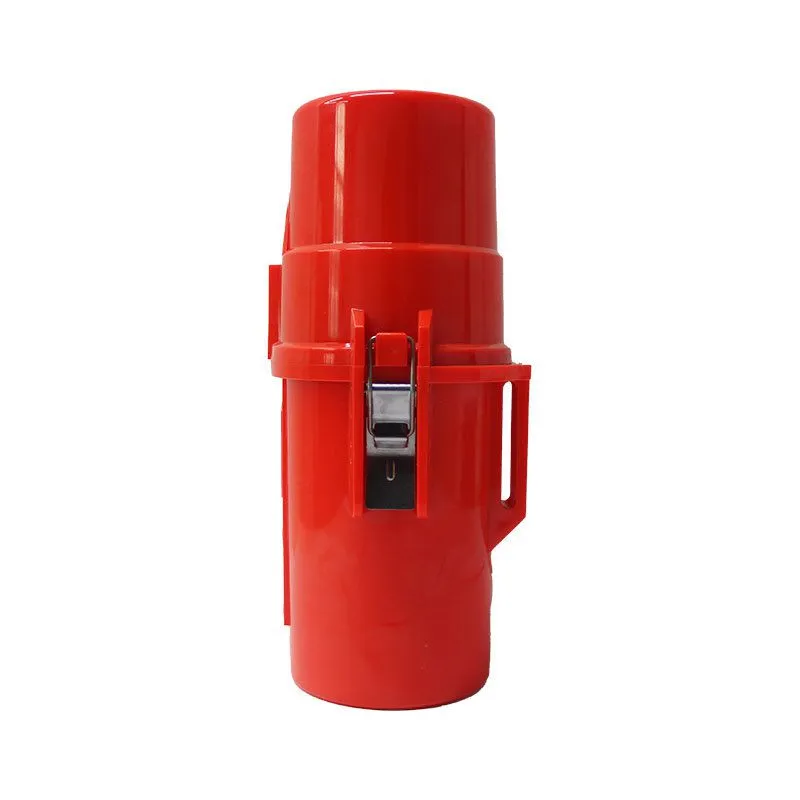

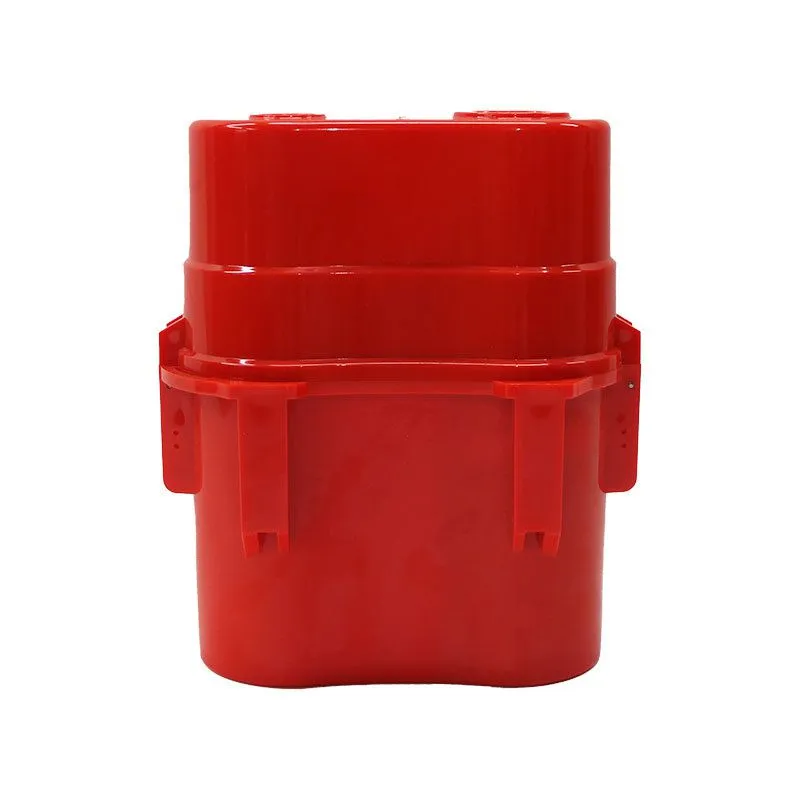

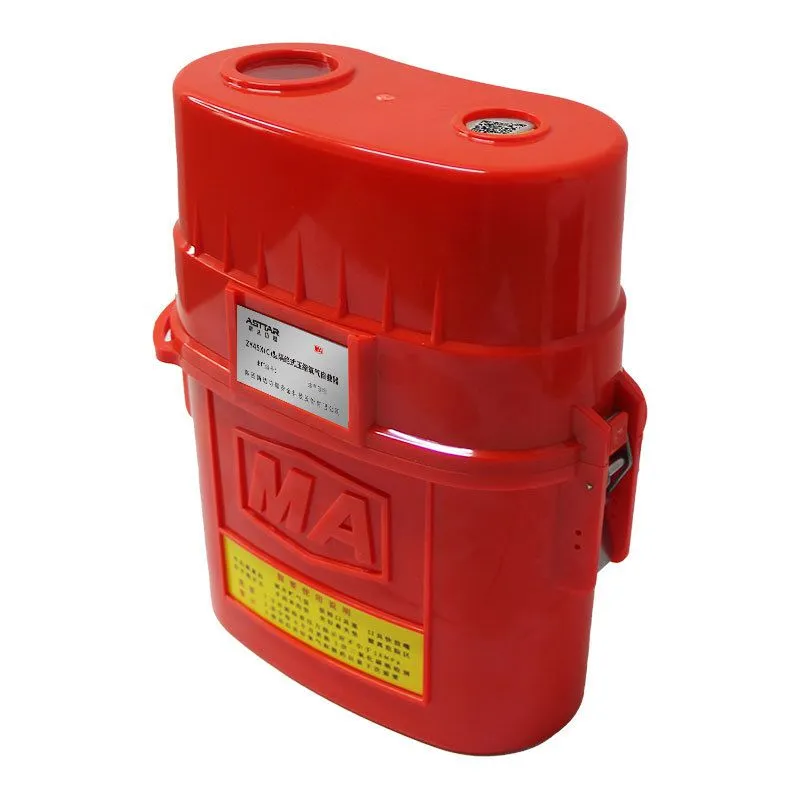

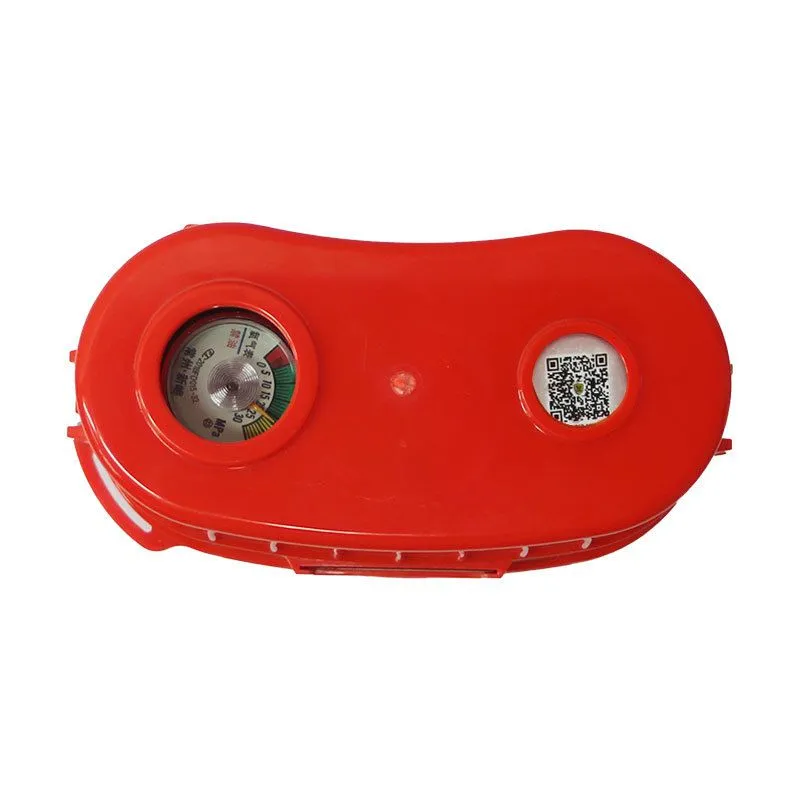

ZY45X(C) Isolated Compressed Oxygen Self-Rescuer
Application
It is a breathing apparatus, which utilizes compressed oxygen as source to form isolated oxygen of closed circuit to provide the wearer with clean oxygen, it is primarily intended for use in mines or in environments where toxic and harmful gases are present, causing oxygen deficiency and asphyxiation hazards. On-site personnel can quickly don the self-rescuer to ensure normal breathing and facilitate escape from the disaster area.
Main specification
Items |
Specification |
|
ZY45X(C) | ||
Rated protective time |
45min |
|
Protective time while at rest |
≥135min |
|
Filling pressure for oxygen bottle |
18-22 MPa (20℃, 101.3kPa) |
|
Oxygen cylinder capacity |
≥0.6L |
|
|
Oxygen supplying modes |
Quantitative oxygen supply |
≥2.1L/min(at 35L/min, 20-3 Mpa) |
≥0.5L/min(at 10L/min, 20-3 Mpa) | ||
Oxygen delivery by demand valve |
≥65L/min(at 20-5 Mpa) |
|
Oxygen delivery by manual switch |
≥65L/min(at 20-5 Mpa) |
|
Exhaust pressure |
150 Pa-300Pa |
|
Dimensions |
(204×108×239)mm |
|
Weight |
≥2.75kg |
|
Operating environmental conditions |
Atmospheric pressure: (70 - 125) KPa; Relative humidity: (0 - 98) %; Temperature: -5°C to +50°C. |
|
Packaging & Shipping
Our Services
Company Information
ASTTAR - a high-tech enterprise, founded in 1995, is engaged in the development and production of software and hardware products in the professional field of safety emergency, it has six series and over a hundred types of products, its sales network covers the whole country, and its products are exported to dozens of countries and regions.
The company has a sound management system, has established a safety production management system with quality management as its core, it has passed ISO9001 quality management system, ISO14000 environmental quality management system, and OHSAS18001 occupational health and safety management system certifications, and has been awarded the title of "Shaanxi Province Quality Service Credit AAA-level Unit".
The company initiated the establishment of "Shaanxi ASTTAR Incubator Co., Ltd.", " Shaanxi Safety Industry MetrologyTesting Co., Ltd.", and "Shaanxi Province Safety Industry Research Institute Co., Ltd.", and created a safety emergency industry supporting service system with ASTTAR as the core, devoting to creating an industry ecological industry chain, and striving to build ASTTAR into a respected international and professional company.

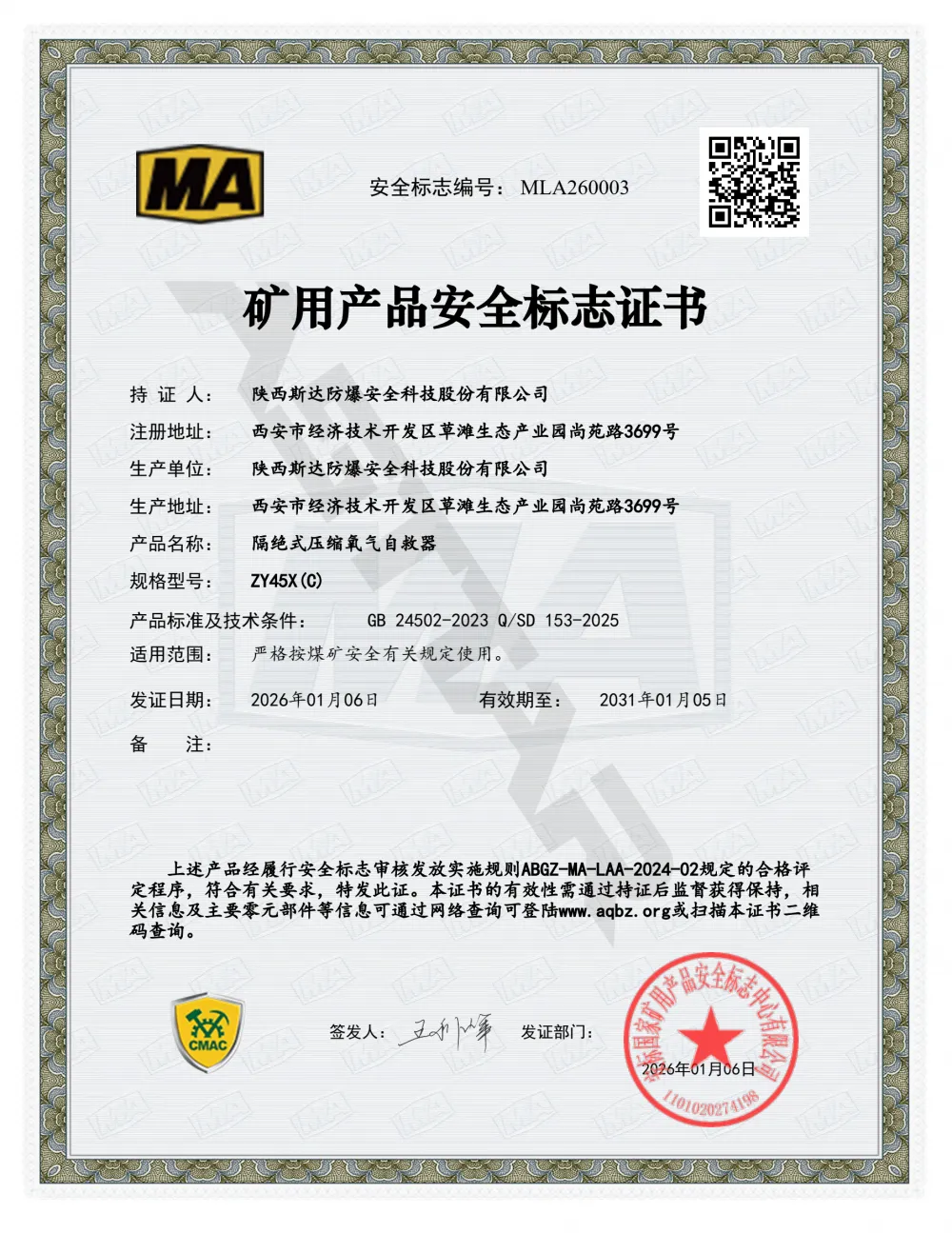

Certificate
We mainly export products of three categories:
1. Mining underground rescue product
2. Mining explosion-proof lamp
3. Mining explosion-proof instrument and meter
Our main products:
1. Mining self rescuer
2. LED miner's cap lamp
3. LED Flame-proof laneway lamp
4. Mechanical and electronic anemometer
5. Isolated positive pressure oxygen breathing apparatus
6. Automatic resuscitator
7. Optical interference type methane detector
8. Portable multi-parameter gas detector
9. Infrared thermometer
10. Laser distance meter
11. Laser guider
