WT‑6KW Tether Power System for 15‑30kg Payload Drones, Unlimited Flight Time Heavy‑Lift Drone Tether Power Supply
1. Product Overview
WT‑6KW tether power system is a high‑power ground‑station tethered drone power supply specially
built for 15‑30kg payload heavy‑lift industrial drones. Compared with regular drone battery solutions,
this tether power system realizes unlimited flight time by supplying continuous electricity through high‑strength tether cable, removing the constraints caused by frequent battery replacement. Designed for UAVs with 15‑30 kg take‑off weight, the unit accepts standard 190‑240VAC industrial mains input and outputs adjustable 600‑850VDC, with selectable output power of 6000W or 7000W. Customers can pick either 110 m or 220 m tether cable for different working‑height requirements. This heavy‑lift tethered drone power supply fits complex field projects and supports B2B bulk wholesale as well as OEM custom services from Wintooltech.
2. Key Features & Highlights
Unlimited flight‑time operation: tether power system for 15‑30kg payload drones removes battery
runtime restrictions for heavy‑lift UAV
Dual power grades: 6000W output power for heavy‑payload drone power consumption
Two tether cable options:110m and 220m cable for high‑altitude long‑hover deployment
Universal industrial AC input: 190‑240VAC input, adapt to most site power supplies
Reliable high‑voltage DC output: 600‑850VDC optimized for large payload industrial drones
Wide compatibility: fully match drones with 15‑30 kg take‑off weight
Rugged industrial ground‑station design, easy transport and fast field setup
Accept wholesale distribution orders and OEM custom modification for integrators
3. Core Performance Parameters

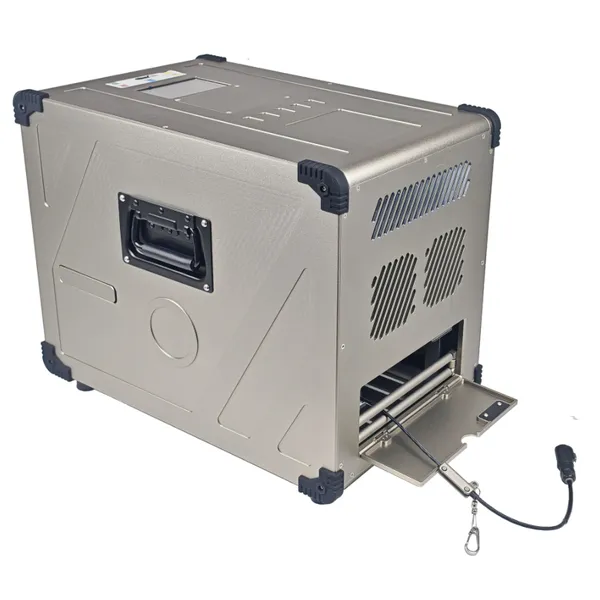

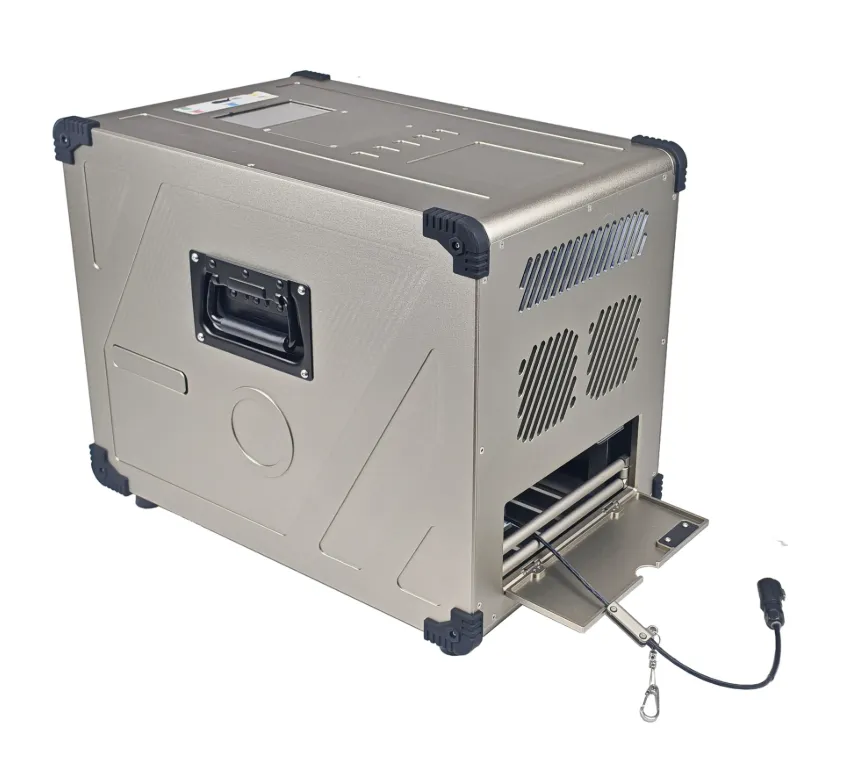

| Ground Station | |
Input Voltage |
Wide-range input of 190–240 VAC; single-phase 220 VAC; frequency 50/60 Hz |
Output Voltage |
600–850 VDC; factory default 850 VDC |
Output Power |
Rated continuous output 7000W; short-term peak output 8000W |
Cable Length |
Standard 110m or 220m; custom lengths available |
Retrieval/Deployment Speed |
0–5 m/s, with intelligent dynamic continuous adjustment and variable acceleration control |
Retrieval/Deployment Force |
0–20 N; supports gear-based adjustment of torque limit, with intelligent continuous adjustment of torque output and torque slope |
Communication Features |
Equipped with wired and wireless communication capabilities; supports multi-device interconnection and intelligent display/control; Supports optional fiber-optic communication |
Display Features |
Operational data including voltage, current, temperature, power consumption, line length, and runtime; operational status and fault logs |
Control Methods |
Supports display, configuration, and control via the unit’s buttons, mobile app, remote host computer, and drone remote controller |
Protection Features |
Includes overvoltage, undervoltage, overcurrent, overtemperature, and short-circuit protection, as well as protection against power failure, cable extension exceeding limits, and cable breakage |
Alarms and Alerts |
In the event of a device malfunction, the display shows the fault details, accompanied by a loud buzzer alert |
Cable Material |
Silver-plated copper wire conductor + high-temperature-resistant Teflon insulation + tensile-resistant film sheath + high-strength, tensile-resistant aerospace-grade fiber outer braid |
Interfaces |
LP24 input, LP12 output, AC switch, Bluetooth antenna, Type-C communication port, FC communication port |
Dimensions |
450 (D) × 280 (W) × 345 (H) mm, excluding foot pads and foldable handle |
Weight |
Case 16.8 kg, cable 16.5 g/m |

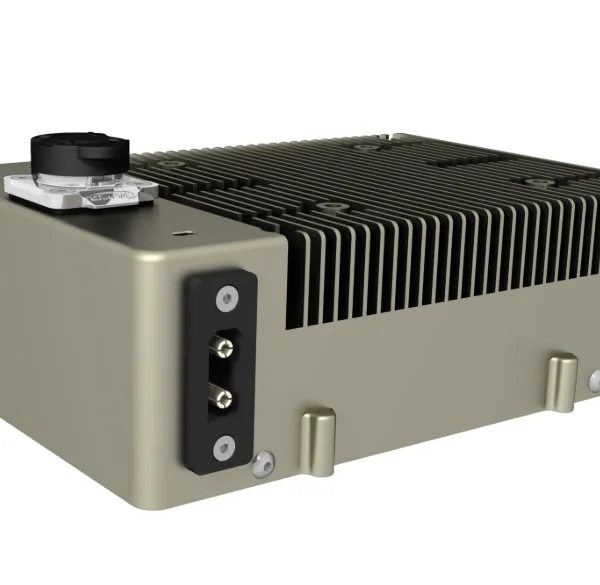

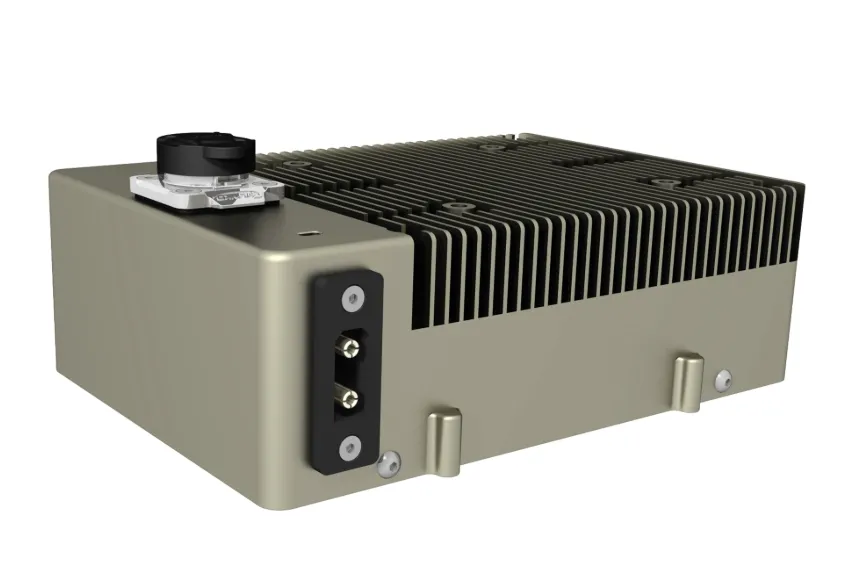

| Onboard Power Supply | |
Input Voltage |
600–850 VDC, wide-range input |
Output Voltage |
50 VDC or 58 VDC, constant regulated output, customizable voltage |
Output Power |
Rated continuous output 6000W, short-term peak output 7000W |
Installation |
Pre-drilled threaded mounting holes, screw-mounted |
Connectors |
Input LP16, Output XT90×2 |
Dimensions |
160×134×50 mm, excluding mounting ears and connectors |
Weight |
1.4 kg, excluding external connectors and cables |
4. Wide Application Scenarios

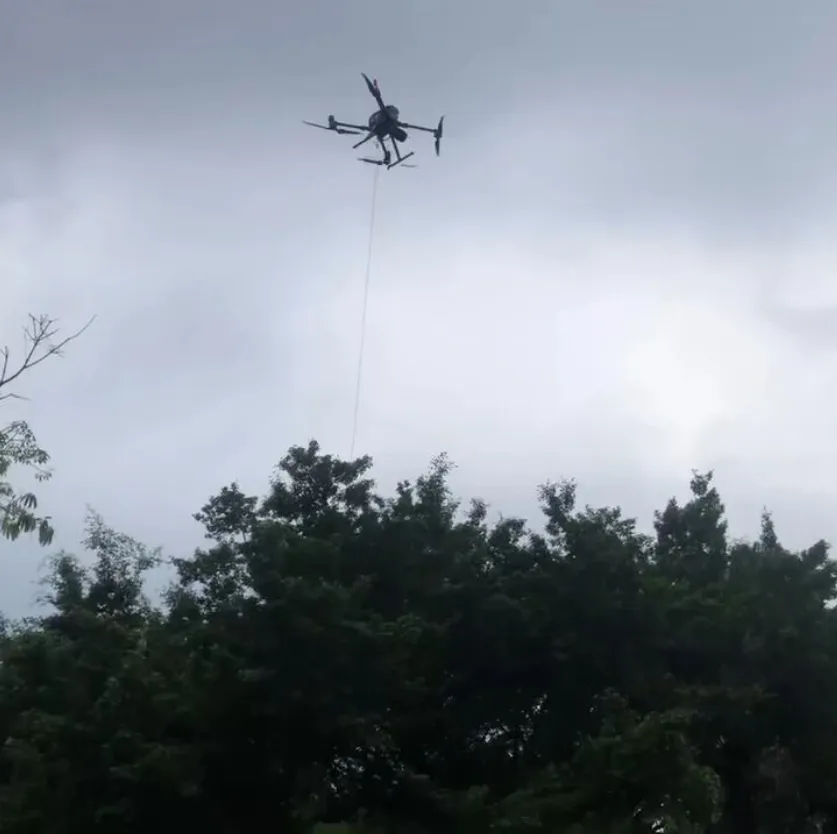

24‑hour persistent aerial monitoring for large industrial zones, mines and ports
High‑altitude power grid, dam and long‑distance pipeline heavy‑payload inspection
Fire‑fighting drone continuous hovering, emergency disaster‑site aerial response
Large‑scale event aerial lighting, broadcast and public safety early warning
Heavy‑payload payload‑carrying drone long‑time field operation
5.Wholesale & OEM Service
Wintooltech provides bulk project‑oriented wholesale and hardware modification service for WT‑6KW tether power system.
✔ Bulk order support for UAV system integrators, engineering contractors, persistent aerial monitoring and emergency‑rescue solution providers
✔ Custom‑configurable heavy‑duty tether cable length beyond standard 110m / 220m for special high‑altitude project requirements
✔ Adjustable output‑power and voltage parameter configuration to match different 15‑30kg heavy‑lift drone platforms
✔ Cabinet‑level hardware optimization for extra‑harsh outdoor field‑working conditions upon large project orders
✔ Stable mass‑production capacity and controllable lead‑time for large‑volume engineering project orders
✔ Complete technical datasheet available for your project evaluation and solution matching
✔ Professional deployment‑oriented technical guidance for all B2B project customers
6. FAQ
Q1: What take‑off weight of drones can WT‑6KW tether power system support?
A1: It is designed for heavy‑lift industrial drones with take‑off weight from 15 kg to 30 kg.
Q2: What tether cable lengths are available for this unit?
A2: Two options are offered: 110 m and 220 m tether cable, you may select when ordering.
Q3: What are the input and output electrical specifications?
A3: Input:190‑240VAC; Output:600‑850VDC, output power selectable at 6000W or 7000W.
Q4: Can I get wholesale price or request OEM customization?
A4: Yes, we support bulk wholesale and OEM service, contact sales for further details.
Q5: Do you provide technical guidance after purchase?
A5: Yes, deployment guidance and ongoing technical support are provided for our B2B clients.
