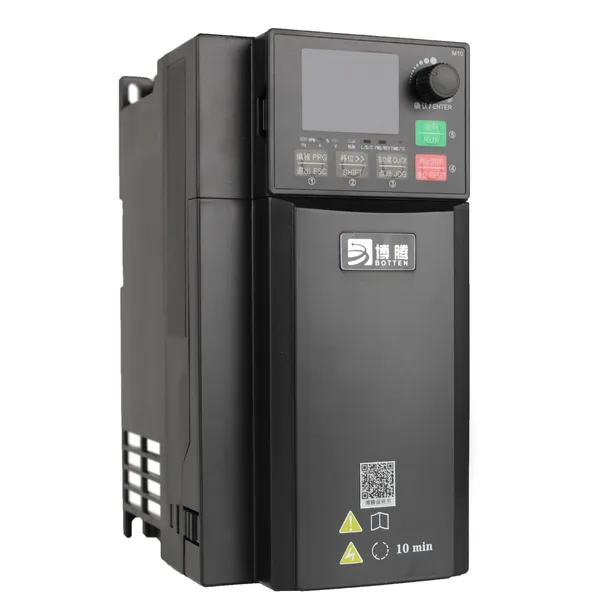

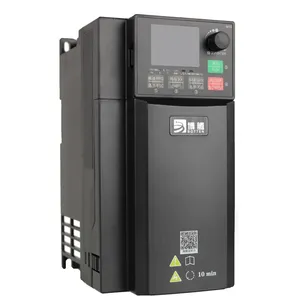

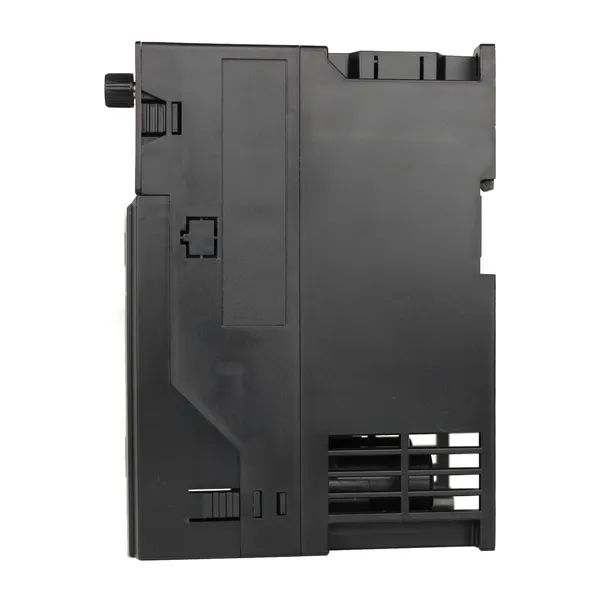

Botten A900plus 11kw 15kw 220V/380V General Purpose Inverter for Water Pump
Product Spotlights
IGBT power modules
heavy-load(G) / normal-load(P)
R485 --communication card
Customizable expansion card-A900PLUS-EX1
Build-in braking module of power below 30KW
Support PLC function for 15 steps
heavy-load(G) / normal-load(P)
R485 --communication card
Customizable expansion card-A900PLUS-EX1
Build-in braking module of power below 30KW
Support PLC function for 15 steps
US$ 133
≥1 Piece
Key Specifications
Get Latest Price
Function:
Simple Type, Constant Torque Universal Type, Other
Application:
High-performance Transducer, Three Phase Transducer, Single-phase Transducer
Output Type:
Triple
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Guangzhou/Ningbo/Shenzhen
Delivery Detail:
5 days
Related Products
-
Botten Variable Frequency Drive in 0.75 to 400kw Power 380V for Water Pump and Ventilation FansUS$ 60MOQ: 1 Piece -
A910 Frequency Converter Botten Brands 0.75kw to 5.5kw for 220V Single Phase 380V for Compressor Motor ControlUS$ 47MOQ: 1 Unit
-
HXWEI-A100H Series Mini VFD in 0.4KW to 5.5kw Power Easy Operation for Fan Water Pump Conveying MachineryUS$ 38MOQ: 1 Piece
-
Chinese Brands Botten AC Drive A900plus Series Frequency Converter 220V/380V Applicate in Plastic Production Machine IndustrialUS$ 60MOQ: 1 Piece
-
HXWEI VFD Industrial Electrical Control Cabinet for Water Supply Tunnel Fan Agricultural Irrigation ApplicationUS$ 500MOQ: 1 Set
Function
Simple Type, Constant Torque Universal Type, Other
Application
High-performance Transducer, Three Phase Transducer, Single-phase Transducer
Output Type
Triple
Brand
Other, Botten
Principle of Work
V/F Control Transducer
Switch Mode
PWM Control
Main Circuit Type
Voltage
Voltage of Power Supply
Low Voltage Variable-Frequency Drive
Link of Transformation
AC-DC-AC Variable-Frequency Drive
Nature of DC Power
Voltage Variable-Frequency Drive
Display
Externally introduced digital tube operation panel
Accessories
A900PLUS expansion card
Transport Package
Carton
Specification
11kw 15kw
Trademark
Botten
Origin
China
Botten A900plus 11kw 15kw 220V/380V General Purpose Inverter for Water Pump

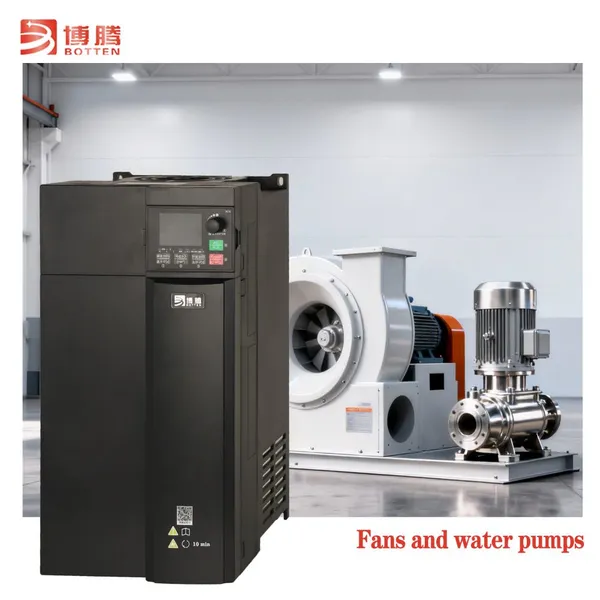

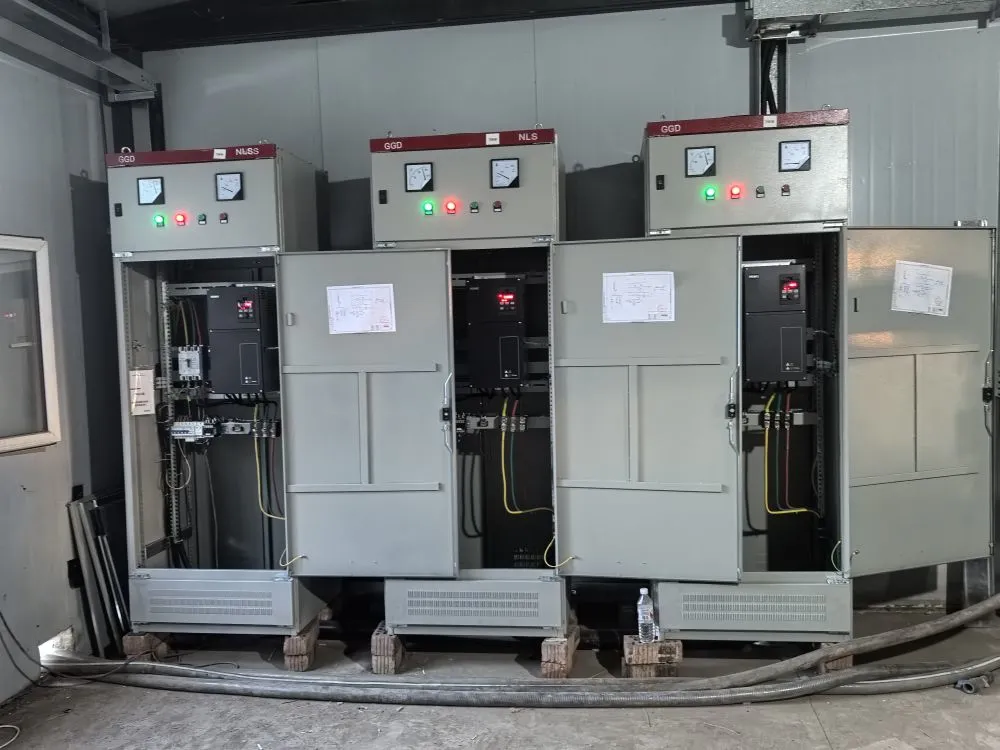

Botten A900pluse VFD for Constant Pressure Water Supply Designed specifically for secondary water supply in communities, farmland irrigation, industrial circulating water and building water supply. Adopting PID closed-loop pressure control, multi-pump linkage and energy-saving speed regulation technologies, it addresses the issues of high energy consumption, unstable pressure and frequent equipment failures in traditional systems, and realizes on-demand water supply.
Botten A900plus 11kw 15kw 220V/380V General Purpose Inverter for Water Pump

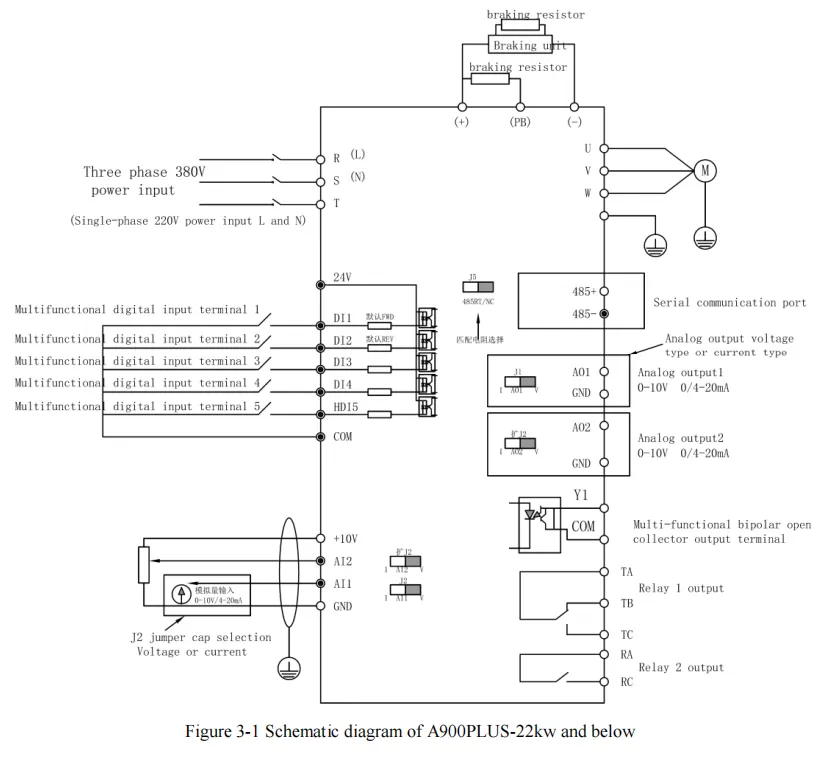

Wiring diagram of the main circuit terminal and the control terminal

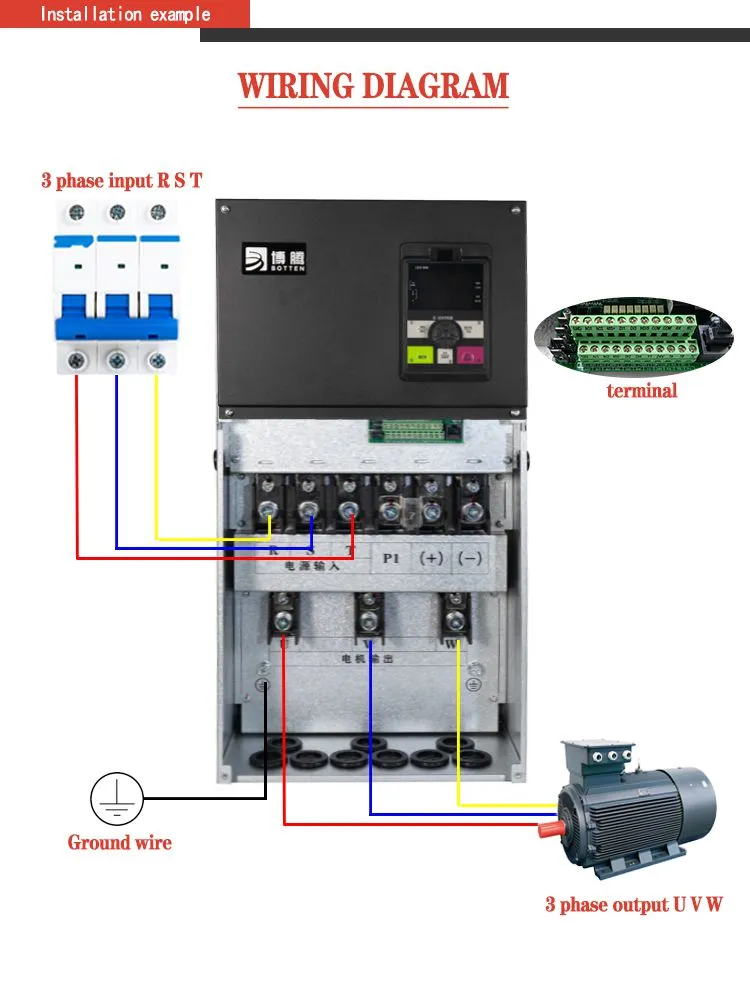

Main circuit terminals and wiring instructions

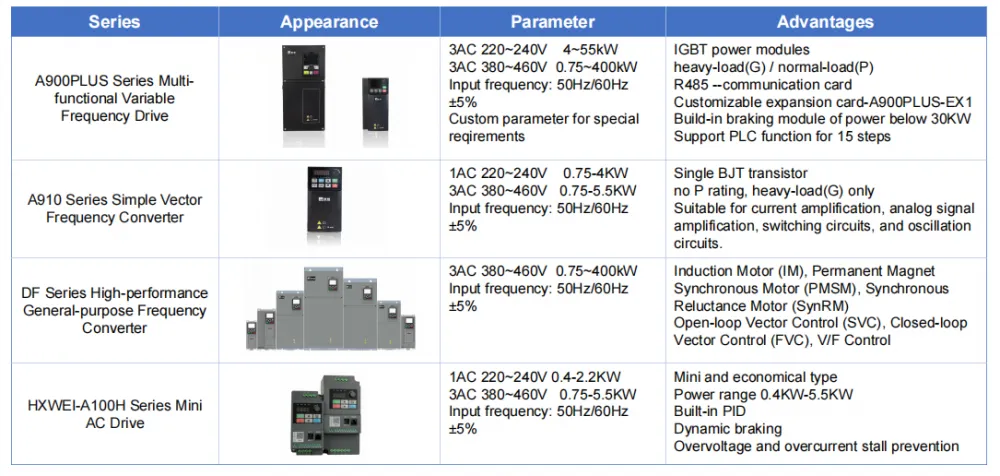

Botten Company List of Frequency Converters Series and Certification
Botten A900Plus VFD Products List
| Power (KW) | Model | Voltage | Power (KW) | Model | Voltage |
| 4kw/5.5kw | A900PLUS-3T4R0GB/5R5PB |
Input: 220±15% VAC,3-phase, 50/60Hz Output: 220±15% VAC,3-phase, 50/60Hz |
18.5kw/22kw | A900PLUS-4T018GB/022PB |
Input: 380±15% VAC,3-phase, 50/60Hz Output: 380±15% VAC,3-phase, 50/60Hz |
| 5.5kw/7.5KW | A900PLUS-3T5R5GB/7R5PB | 22kw/30kw | A900PLUS-4T022GB/030PB | ||
| 7.5kw/11KW | A900PLUS-3T7R5GB/011PB | 30kw/37kw | A900PLUS-4T030G/037P | ||
| 11kw/15KW | A900PLUS-3T011GB/015PB | 37kw/45kw | A900PLUS-4T037G/045P | ||
| 15kw/18.5KW | A900PLUS-3T015GB/018PB | 45kw/55kw | A900PLUS-4T045G/055P | ||
| 18.5kw/22KW | A900PLUS-3T018GB/022PB | 55kw/75kw | A900PLUS-4T055G/075P | ||
| 22kw/30KW | A900PLUS-3T022GB/030PB | 75kw/93kw | A900PLUS-4T075G/093P | ||
| 30kw/37KW | A900PLUS-3T030G/037P | 93kw/110kw | A900PLUS-4T093G/110P | ||
| 37kw/45KW | A900PLUS-3T037G/045P | 110kw/132kw | A900PLUS-4T110G/132P | ||
| 45kw/55KW | A900PLUS-3T045G/055P | 132kw/160kw | A900PLUS-D4T132G/160P | ||
| 55kw/75KW | A900PLUS-3T055G/075P | 160kw/185kw | A900PLUS-4T160G/185P | ||
| 0.75kw/1.5kw | A900PLUS-4TR75GB/1R5PB |
Input: 380±15% VAC,3-phase, 50/60Hz Output: 380±15% VAC,3-phase, 50/60Hz |
185kw/200kw | A900PLUS-Q4T185G/200P | |
| 1.5kw/2.2kw | A900PLUS-4T1R5GB/2R2PB | 200kw/220kw | A900PLUS-Q4T200G/220P | ||
| 2.2kw/4.0kw | A900PLUS-4T2R2GB/4R0PB | 220kw/250kw | A900PLUS-Q4T220G/250P | ||
| 4.0kw/5.5kw | A900PLUS-4T4R0GB/5R5PB | 250kw/280kw | A900PLUS-Q4T250G/280P | ||
| 5.5kw/7.5kw | A900PLUS-4T5R5GB/7R5PB | 280kw/315kw | A900PLUS-Q4T280G/315P | ||
| 7.5kw/11kw | A900PLUS-4T7R5GB/011PB | 315kw/355kw | A900PLUS-Q4T315G/355P | ||
| 11kw/15kw | A900PLUS-4T011GB/015PB | 355kw/400kw A | A900PLUS-Q4T355/400P | ||
| 15kw/18.5kw | A900PLUS-4T015GB/018PB | 400kw/450kw | A900PLUS-Q4T400/450P |
