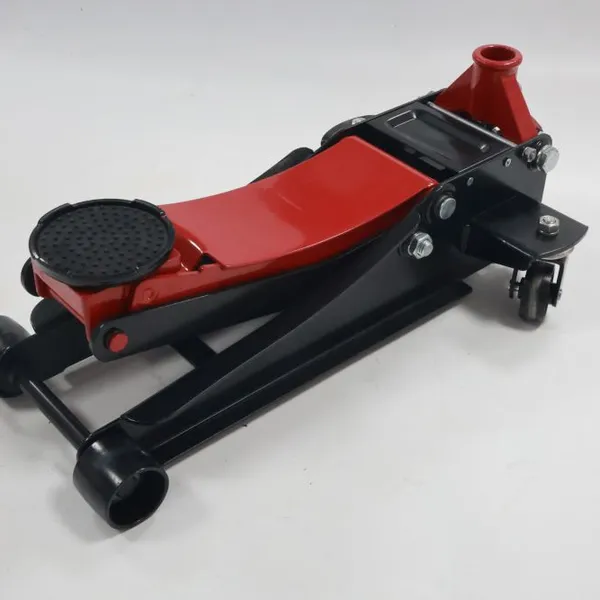

Help CenterMinivan Repair 2 Ton Hydraulic Trolley Jack With Sliding Saddle for Fleet Garage Applications
Product Spotlights
Related Products
-
2 Ton Hydraulic Trolley Jack With 360-Degree Swivel Casters and 220V Electric Pump OptionNegotiableMOQ: 50 Pieces -
2 Ton Hydraulic Trolley Jack With 1500kg Rated Capacity and 450mm Reach for Vehicle ServiceNegotiableMOQ: 50 Pieces
-
Compact 2 Ton Hydraulic Trolley Jack With 660-1520mm Saddle Height for Trucks and SUVsNegotiableMOQ: 50 Pieces
-
Hydraulic Floor Jack 5 Ton Capacity With 90mm Minimum Height and 500mm Lifting RangeUS$ 11 - 13MOQ: 50 Pieces
-
Hydraulic Floor Jack 2 Ton Capacity With Dual Pump System for Quick Lift in Auto Repair ShopsUS$ 11 - 13MOQ: 50 Pieces
Jiaxing Weiying Industry And Trade Co., Ltd., a manufacturer with a 10,000–30,000 square meter facility in Jiaxing, Zhejiang, has been producing garage equipment since 2004. Our 2 Ton Hydraulic Trolley Jack with Sliding Saddle is purpose-built for minivan repair and fleet garage applications, giving technicians a dependable tool for fast, safe, and accurate lifting. The thoughtful combination of a 2-ton hydraulic system, compact trolley frame, and adjustable sliding saddle makes this jack an ideal addition to any professional workshop servicing minivans and light fleet vehicles.
Designed for Professional Fleet Maintenance
Minivans and modern light vehicles present unique challenges: low ground clearance, elongated chassis, and factory-designated lift points that do not always align with a conventional jack saddle. Our sliding saddle directly solves this problem by allowing the support block to move across the top beam after the jack is already positioned. This saves time, avoids unnecessary pumping, and reduces the risk of damage to structural seams. The result is a more productive workshop in every tire rotation, brake service, or exhaust repair.
- Reliable lifting power: With a rated capacity of 2 tons (4,000 lbs), the jack covers the weight range of most minivans and fleet vehicles. The sealed hydraulic unit provides consistent lifting stroke and smooth resistance across repeated use.
- Sliding saddle advantage: The saddle can be positioned horizontally to match the exact lift point of the vehicle, preventing misalignment and providing a stable contact surface every time.
- Compact and maneuverable: The trolley design, combined with front swivel casters and rear rigid wheels, lets operators navigate narrow service bays and reposition the jack under the vehicle with minimal effort.
- Protective rubber pad: The saddle includes a replaceable rubber pad that grips the vehicle's pinch weld without leaving marks, an important detail for commercial fleets that care about vehicle resale value.
- Safety-first hydraulics: A built-in overload valve and precision lowering valve help prevent overloading and allow full control during descent.
- Minimal maintenance: The hydraulic unit is sealed and pre-lubricated at the factory, reducing the need for frequent oil refills and protecting against contamination in dusty garage environments.
- Durable finish: The frame is powder-coated in a standard industrial finish, with custom colors available for fleet programs and branded workshop tool lines.
Technical Specifications
The following specifications are based on the standard configuration. Since we are a manufacturing facility, certain parameters such as saddle size, minimum height, and handle style can be adjusted to your ordering requirements.
| Parameter | Specification |
| Rated Capacity | 2 Tons (4,000 lbs) |
| Minimum Lifting Height | Approx. 130 mm (configurable) |
| Maximum Lifting Height | Approx. 380 mm (configurable) |
| Overall Frame Length | Approx. 720 mm, varies by model |
| Overall Frame Width | Approx. 350 mm, varies by model |
| Saddle Size | Approx. 100 × 100 mm, optional sizes available |
| Saddle Type | Horizontal sliding saddle with rubber pad |
| Handle Length | Approx. 560 mm, ergonomic grip |
| Net Weight | Approx. 28 kg, depends on configuration |
| Hydraulic System | Sealed unit with overload safety valve |
| Finish | Powder coating, standard blue/black or custom colors |
Key Benefits for Your Garage
- Higher efficiency: Sliding saddle adjustments take only seconds, so your technicians can move from one vehicle to the next without extra steps. In a busy fleet facility, this saved time adds up quickly.
- Safely positioned loads: When a jack saddle is not centered on the vehicle's lift point, the load can shift unexpectedly. Our flat, wide saddle combined with horizontal sliding motion keeps the contact area exactly where you place it, improving stability during lifting.
- Wide vehicle coverage: The frame geometry and sliding saddle allow this unit to be used on unibody minivans as well as body-on-frame light trucks, making it a versatile tool for mixed fleet operations.
- Lower operating costs: Sealed hydraulics and a robust steel frame reduce breakdowns. Essential spare parts such as the rubber saddle pad and casters can be replaced easily, extending the useful life of the jack.
- Better workshop organization: The two-piece handle and compact footprint make it easy to store the jack on a shelf or beside a service bay when not in use.
Typical Applications
This trolley jack is commonly used for minivan tire rotation, brake disc and pad replacement, steering and suspension checks, exhaust system repairs, oil pan access, and general underbody inspections. It is also a suitable lifting tool for utility vans and shuttle fleet vehicles in the light commercial weight class. Whether you are running a dedicated minivan repair center or maintaining a mixed fleet garage, the adjustable saddle offers the flexibility your shop needs.
Why Buy from Jiaxing Weiying?
Jiaxing Weiying Industry And Trade Co., Ltd. has been a reliable source for workshop equipment since 2004, supported by a production area of 10,000–30,000 square meters and a team of 51–100 employees. Our annual export value of US$1 Million to US$1.5 Million reflects the trust placed in us by customers across North America, South America, Eastern and Western Europe, Southeast Asia, the Middle East, and South Asia. We hold ISO9001, ISO14000, and OHSAS18001 certifications, and we ship regularly from Shanghai, Ningbo, Guangzhou, and Qingdao ports. Every 2 Ton Hydraulic Trolley Jack we deliver represents our commitment to reliable lifting, practical design, and responsive service. Contact our sales team today to request detailed drawings, sample availability, or a quotation tailored to your fleet garage program.
Frequently Asked Questions
Q1: What is the maximum load this trolley jack can lift?
The rated capacity is 2 tons (4,000 lbs), which covers nearly all standard minivans and light fleet vehicles. Always verify the gross vehicle weight before lifting, and never exceed the rated capacity printed on the jack label.
Q2: How does the sliding saddle improve the lifting process?
The saddle slides horizontally along the top beam, allowing you to fine-tune the contact point once the jack is under the vehicle. This eliminates the need to move the whole jack to match the factory lift point, saving time and reducing the risk of damage to the vehicle body.
Q3: Can it lift low-clearance minivans?
Yes, the trolley frame is designed with a low approach profile. The minimum closed height is approximately 130 mm in the standard configuration, and we can adjust this during production to suit specific vehicle models in your fleet.
Q4: Is this jack suitable for everyday use in a professional garage?
Yes. The heavy-duty steel frame, sealed hydraulic pump, and replaceable wear parts are selected for daily professional use. Fleet garages benefit from its quick adjustment and robust build quality.
Q5: What safety features are built in?
The jack includes an overload safety valve, a machined release valve for controlled lowering, and a wide stable base. Always engage a jack stand immediately after lifting, and never place any part of your body under a vehicle that is supported only by a jack.
Q6: Can the handle be removed for storage?
Yes, the two-piece handle design allows easy detachment, which is useful for transporting the jack between bays or storing it in a compact space after work hours.
Q7: Do you offer custom colors or branding?
Certainly. We can apply custom powder-coat colors and add your company logo for fleet programs or tool brands. Please share your brand guidelines with our sales team for a tailored proposal.
Q8: What are the shipping options?
We have frequent shipments from Shanghai, Ningbo, Guangzhou, and Qingdao ports. Depending on your destination and order size, we can arrange sea freight, air freight, or express courier service. Our export team will recommend the most economical and reliable option for you.
