Help CenterCONTROL LINE Ball Valve 372001-01 Brass Manual Ball Valve
Product Spotlights
Related Products
-
HO-MATIC Pinch Valve 40050 304 Stainless Steel Body IP65 Waterproof for Industrial Flow ControlNegotiableMOQ: 1 Piece -
HO-MATIC Pinch Valve 20032 PTFE Lined Sleeve Low Maintenance Standard CompliantNegotiableMOQ: 1 Piece
-
HOERBIGER S9 Piezo-Pneumatic Switching Valve Explosion-Proof Pneumatic Control ValveNegotiableMOQ: 1 Piece
-
HOERBIGER PS 11048-640A-02 Pneumatic Proportional Control ValveNegotiableMOQ: 1 Piece
-
GEMU R480 Victoria Metal Soft-Seated Center-Supported Butterfly Valve DN25-DN600 EN ISO 5211NegotiableMOQ: 1 Piece
Product Introduction

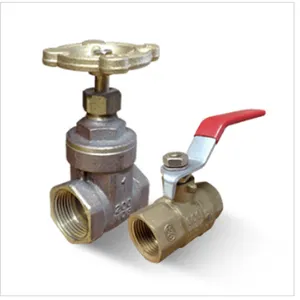

Gate valves and ball valves feature chrome-plated balls, blowout-prevention stem designs, reinforced TFE seats, and adjustable packing gland covers. A bronze ball valve is a type of valve that controls fluid flow by rotating the ball. It has a compact structure and consists primarily of a valve body, ball, stem, and seals. The valve body is typically made of bronze, which offers high corrosion resistance and thermal conductivity. The ball rotates 90 degrees to control fluid flow: when the ball is aligned with the valve body passage, fluid flows freely; when the ball is offset from the valve body passage, fluid flow is shut off, thereby closing the valve.
Performance Features
Chromium-plated steel ball
Reinforced TFE seats and packing rings
Blowout-proof stem design
Adjustable packing gland
Bronze Ball Valve
Threaded, 600 PSIG WOG, cold-start shock-free
150 PSIG saturated steam
Vacuum to 29 inches of mercury
Product Construction and Details
Lever and Handle: Steel, zinc-plated/vinyl
Stem Packing: Reinforced TFE
Reinforced TFE stem bearings
B16 ball, chrome-plated
Seats (2) Reinforced TFE
Retainer B16 (1/4“-1”) B584-C84400 (1-1/4“-3”)
Gland nut B16
Valve stem B16
Lever nut Steel, zinc-plated
Body Seal (1-1/4“-3”) TFE
Valve Body B583-C84400
Technical Specifications
Country of Origin: United States
Order Number: 372001-01
Product Category: Bronze Ball Valve - 200 WOG - PTFE Seat Ring
Construction: Modular Disc Mount

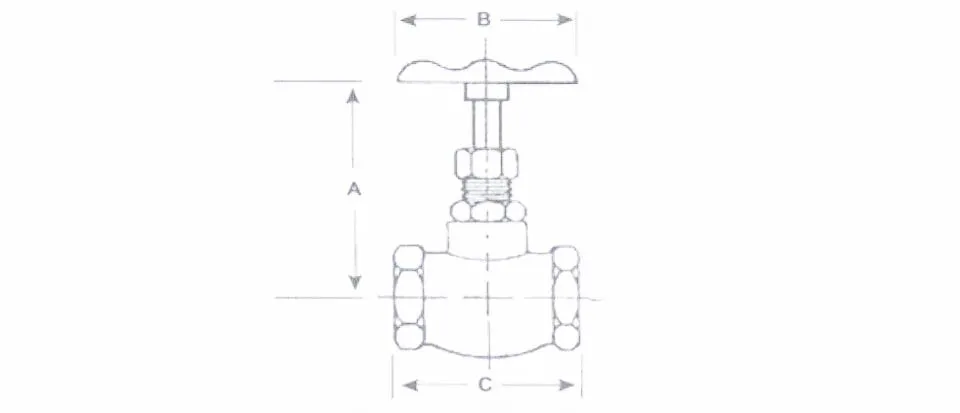

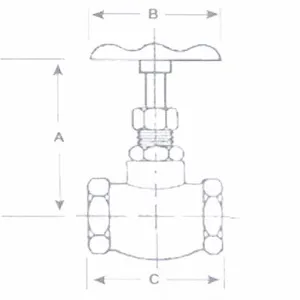

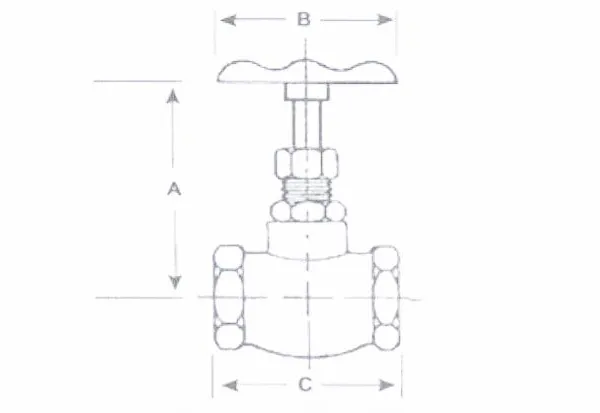

IPS Size: 1/4 inch
Opening: 3-1/6 inches
Die-Cast Handle: 2-9/32 inches
Bronze Handle: 2-17/32 inches
Body: 1-7/8 inches
Handle Type: Die-cast pull handle
Valve Body Material: Complies with ASTM B584 standard
Product Applications
Power transformers, oil circuit breakers, and other electrical equipment, used for filling, sampling, or draining coolant.
