WT‑S 360° Swivel Single‑Tip MAPP/Propane Gas Torch, Stainless Steel Tip Manual Ignition Brazing Torch
1. Product Overview
The WT‑S is a heavy‑duty single‑tip manual‑ignition brazing torch built for professional soldering and brazing projects. Featuring a 360‑degree swivel stainless‑steel tip, this MAPP / Propane / LPG gas torch fits standard 14.1‑16 OZ gas containers with CGA600 connection standard. It outputs max flame temperature above 3600℉ with MAPP gas, supporting soft solder up to Φ2'' copper tubing and brazing up to Φ1'' copper tubing. Robust mechanical structure guarantees stable flame and consistent ignition for long‑time site operation for tradesmen and wholesale clients.
2. Key Features & Highlights
Stainless‑steel tip end, high‑temperature resistant and drop‑proof for long service life
Precision‑adjustable valve enables fine pressure control for stable flame output
Built‑in thruster accelerates gas flow and completes gas‑air mixing to achieve high working temperature
Premium manual igniter ensures reliable ignition performance for every operation
Precision‑machined orifice keeps consistent flame performance across every WT‑S gas torch unit
360° full swivel torch tip for flexible angle adjustment to handle multi‑angle complex working conditions
3. Core Performance Parameters
Gas Type |
MAPP, Propane, LPG |
Connection |
CGA600 |
Container |
For use with 14.1-16 OZ Containers |
Regulator Ratings |
2.59M Pa (375psi) Maximum Gas Pressure |
|
Copper Tubing Size Capability (With Mapp Gas) |
Soft Solder: Max. Φ2"(5cm) |
Brazing: Max. Φ1"(2.5cm) | |
Max Flame Temperature |
>3600°F (tested with MAPP gas) |
Caution |
Low flame setting will result in overheat of the tip |

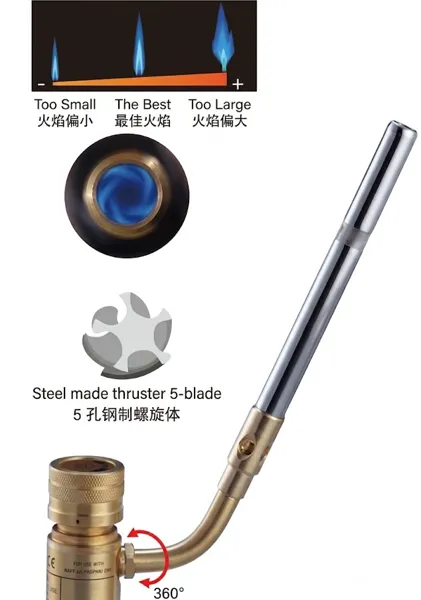

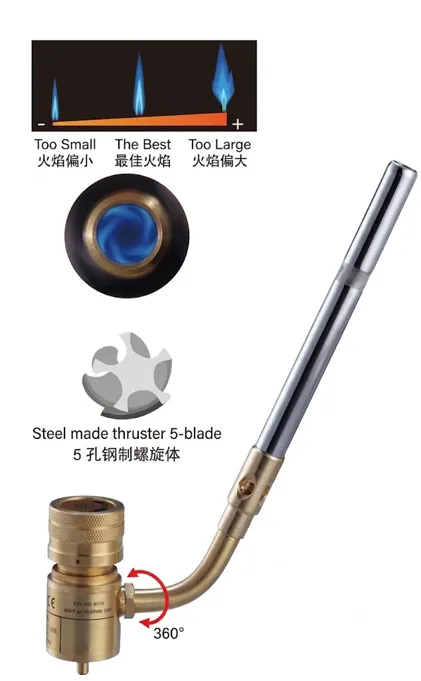

Stainless steel tip end to withstand high temp and dropping
Specially designed valve to adust pressure precisely
Thruster to speed up the gas flow and complete mixture for high temperature
High quality igniter to gurantee successful ignition every time
Accurate orifice size to make sure every torch has the same flame
Tip spins 360°for various jobs
4. Wide Application Scenarios
HVAC & refrigeration: copper pipe soldering and brazing for air‑condition and refrigeration maintenance
Jewelry processing: precious‑metal soldering and heating work
Electrical industry: metal component soldering & connection
Transportation industry: vehicle‑related metal brazing & repair jobs
5. FAQ
Q1: What gas can this WT‑S brazing torch use?
A1: It supports MAPP gas, Propane gas and LPG gas; MAPP gas can reach maximum flame temperature above 3600℉.
Q2: What gas bottle fits this torch?
A2: It adopts CGA600 connection standard, suitable for 14.1‑16 OZ standard gas containers.
Q3: What size copper tubing can it solder & braze?
A3: Soft solder supports max Φ2'' copper tubing; brazing supports max Φ1'' copper tubing.
Q4: Can the torch tip rotate freely?
A4: Yes, the tip supports full 360‑degree swivel to adapt narrow and complex working positions.
