Help CenterElectrical Insulation Thermal Sheet Silicone Insulator Pad for Electronic Compoments
Product Spotlights
2. Low thermal resistance
3. Tear and puncture resistant
4. High dielectric strength
5. High breakdown voltage
6. Thermal conductive and electrical insulation
7. Low mounting pressure, easy to die cutting
8. Specific dimensions can be die-cutted.
Related Products

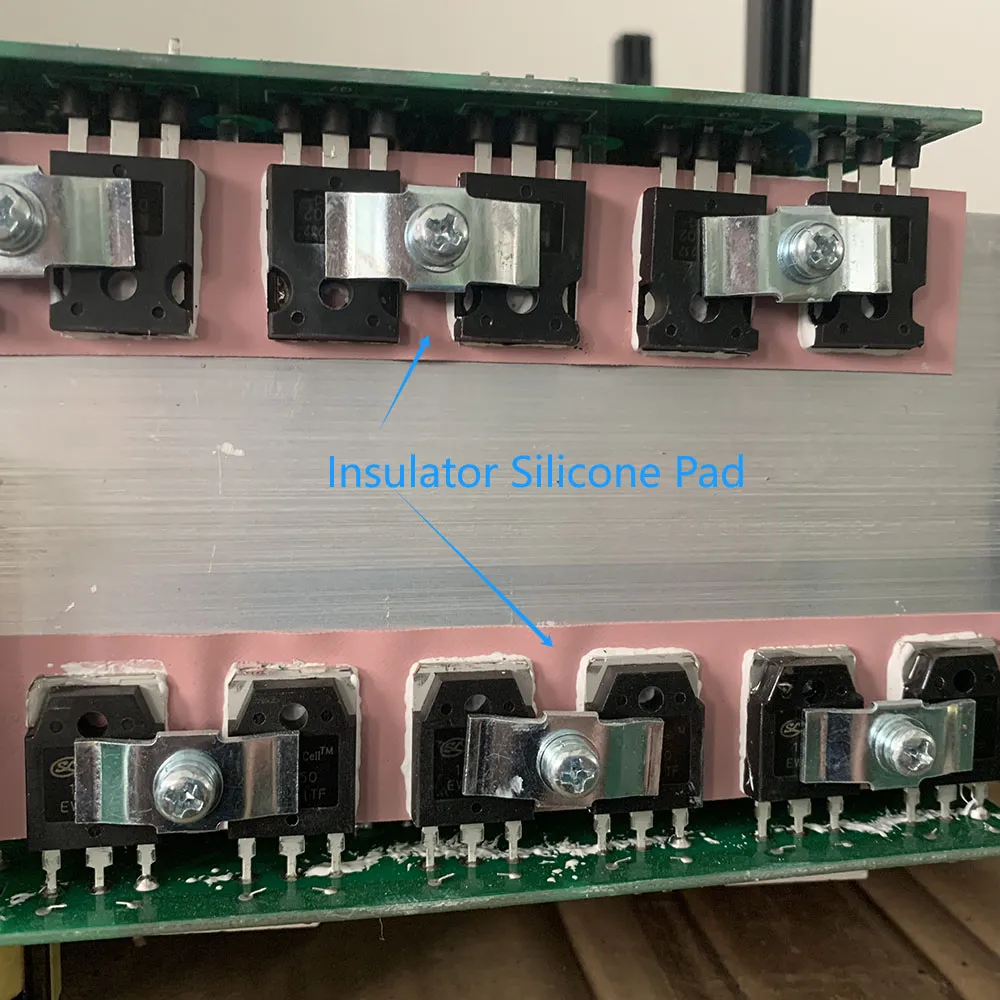

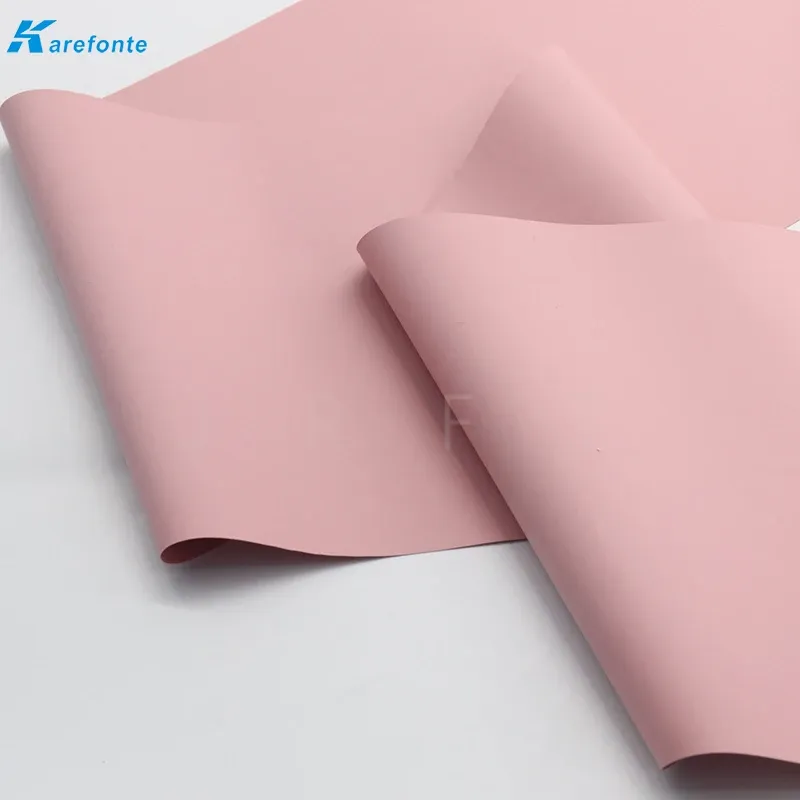

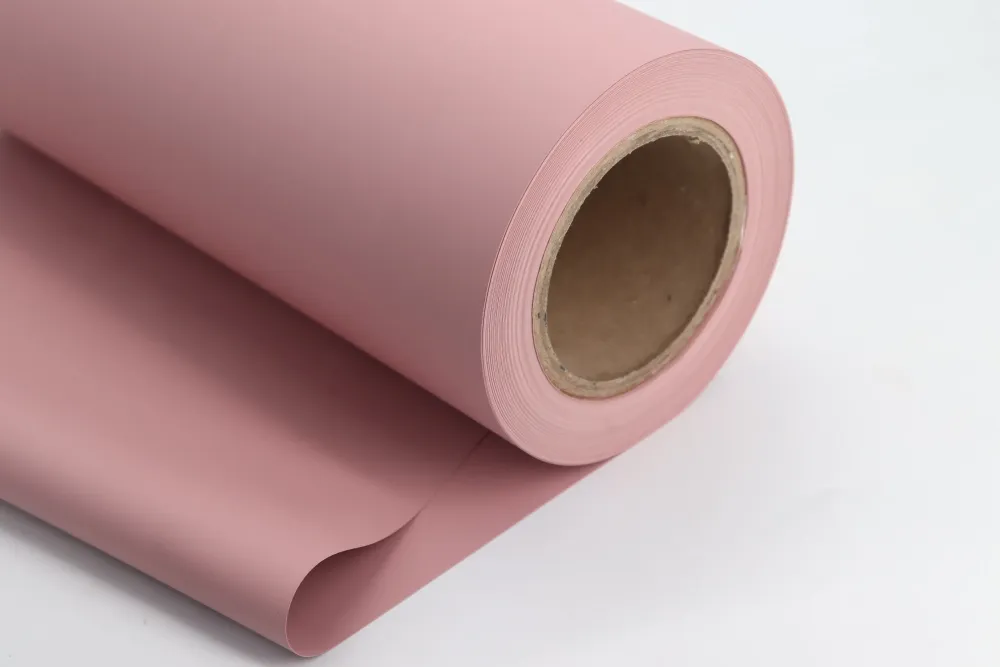

BM900S Insulator silicone Pad is silicone-coated with fiberglass reinforced ,also known as thermal conductive silicone cloth,tearing resistant silicone sheet. This material can effectively reduce thermal resistance between the electronic component and the heat sink,and with good electrical insulation, high dielectric strength, good thermal conductivity performance.It can resist high voltage and metal parts pierced problem lead to a short circuit, it's a good thermal insulation material to replace the traditional mica and silicone grease.
It has soft surface, good thermal conductivity and toughness, tear resistance, high dielectric strength, strong wear resistance,high breakdown voltage,no viscosity on the surface, suitable for the insulation and thermal conductive of power device.

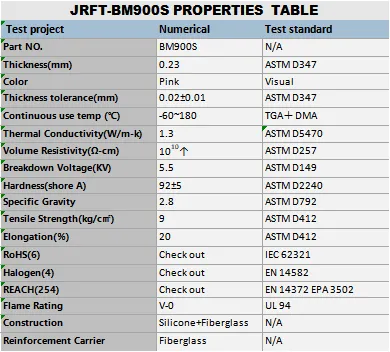

PROPERTIES TABLE
APPLICATIONS:
1.Automotive electronic control modules
2.Power supply/motor control systems
3. IGBT
4. Inverters , converters
5. Other electronic components
Specifications Available:

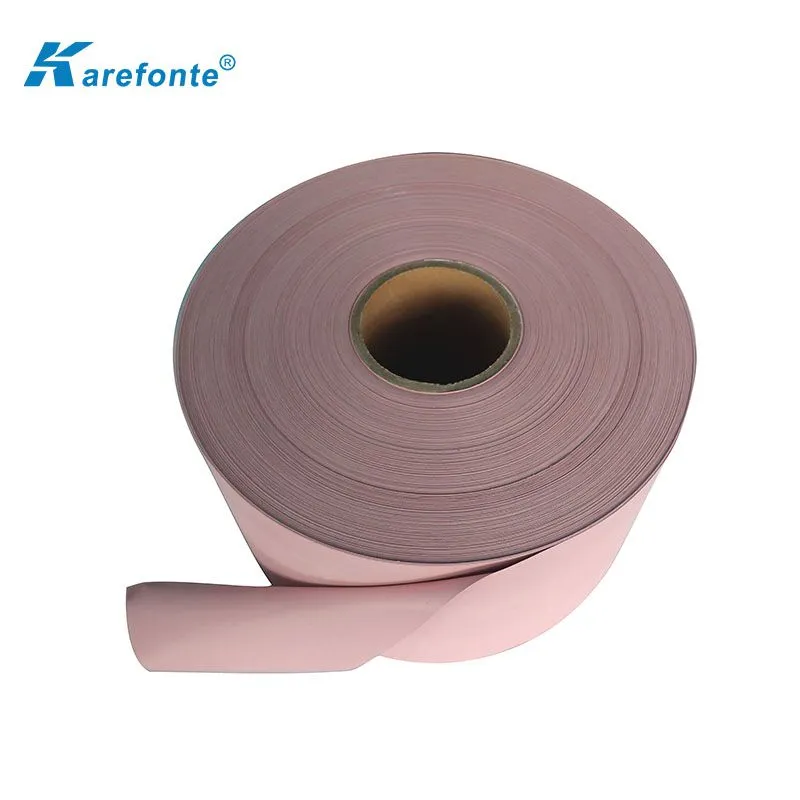

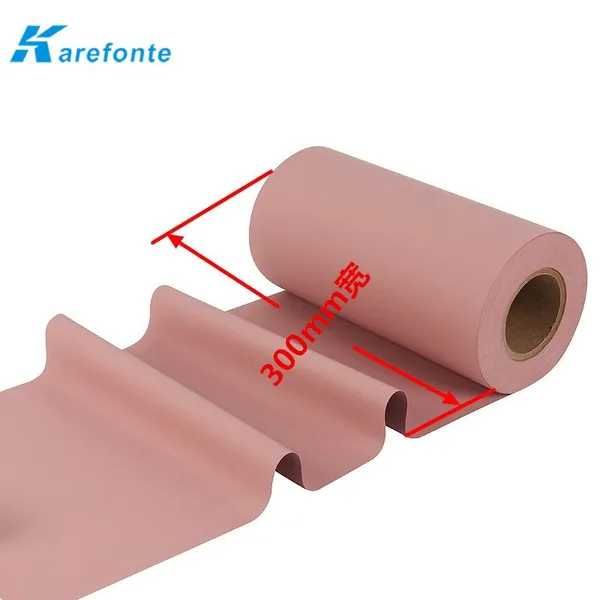

1. Standard roll format : 300mmx50m (width: 300mm, length:50meters)
2. Sheet format
3. Die-Cut parts
4. With or without pressure sensitive adhesive can be supplied
5.Thickness: BM900S Silicone Pad is 0.23mm thickness.
Our other models have a variety of thickness, preferred 0.16mm, 0.3mm, 0.45mm. 6.We produce thousands of specials.
Tooling charges will be needed for die-cut parts/or sheet form, the tooling charge depends on the size and complexity of the part.

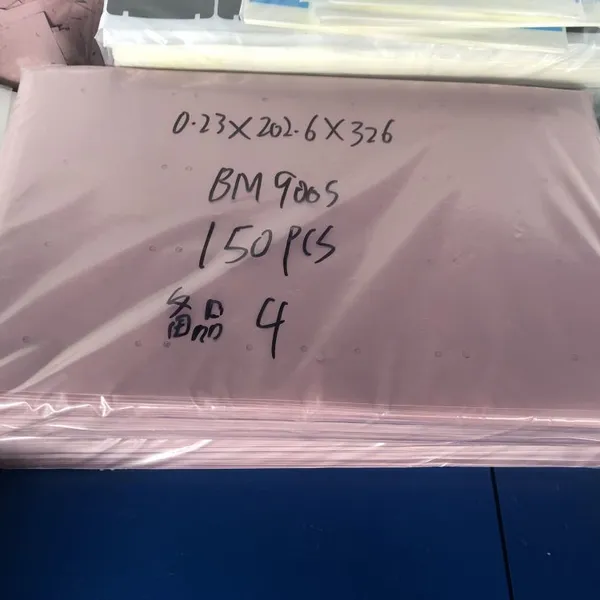

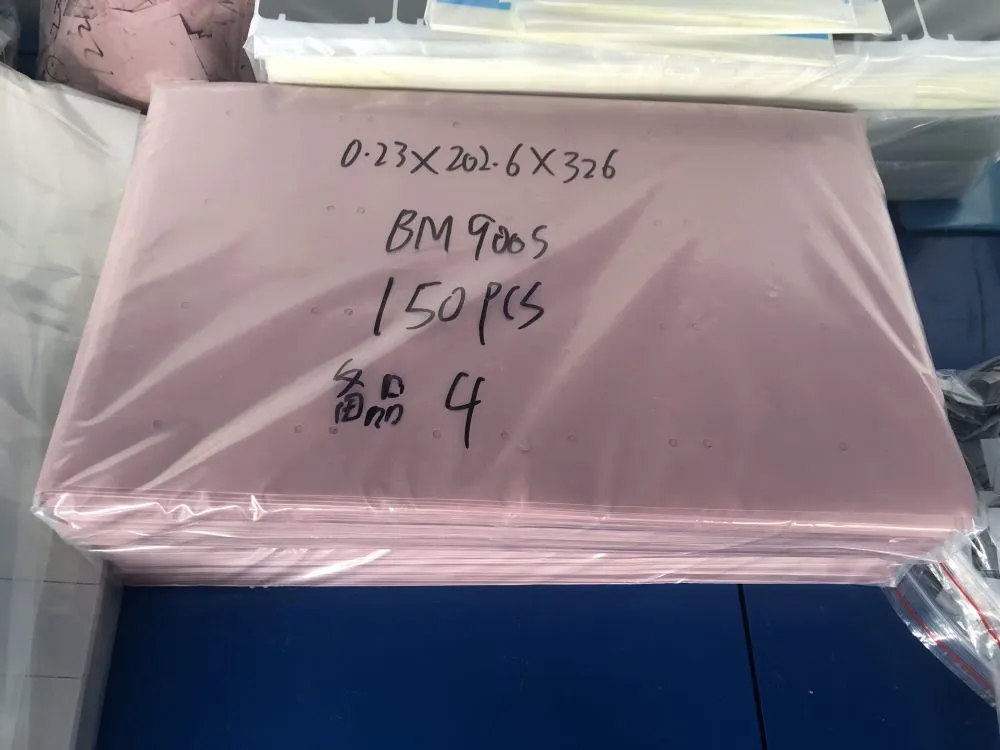

Product Show
