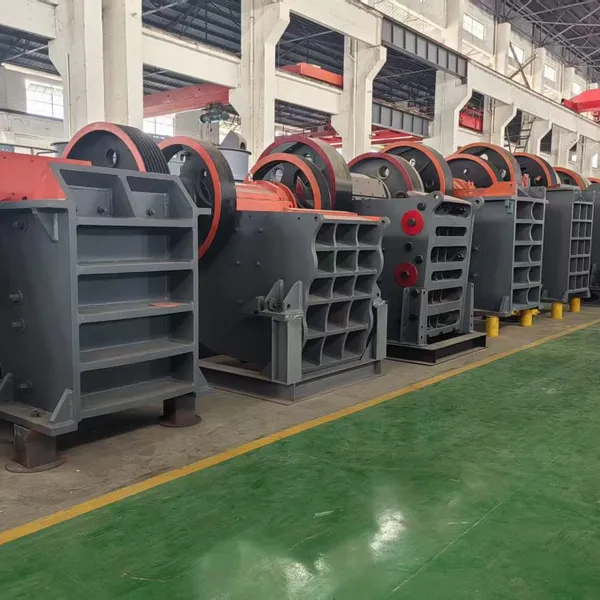

Help CenterC Series Jaw Crusher Mining Crushing Machinery Deep
Product Spotlights
Related Products
-
Gold CIL CIP Processing Plant Leaching and Adsorption 95% Recovery Rate 100-300 TPD Turnkey SolutionNegotiableMOQ: 1 Set -
CIL CIP Gold Processing Plant 100-500 TPD Cyanidation Process 95% Recovery Rate One Stop SolutionUS$ 25000MOQ: 1 Set
-
Gold CIL CIP Processing Plant 100-300 TPD Cyanidation Process 95% Recovery Rate One Stop SolutionNegotiableMOQ: 1 Set
-
Gold CIP CIL Processing Plant Gravity Separation 95% Recovery Rate 50-500 TPD EPC ProjectNegotiableMOQ: 1 Set
-
Gold CIL CIP Processing Plant 50-500 TPD Gravity Separation 95% Recovery Rate One Stop SolutionNegotiableMOQ: 1 Set
Key Performance Highlights
V-Shaped Deep Cavity, Higher Actual Feeding CapacityThe optimized V-shaped cavity structure makes the actual maximum feedable lump size larger than the nominal feed opening. Large pieces of hard rock can be smoothly bitten into the crushing cavity, effectively reducing the pre-screening workload before feeding, and the material blocking rate is greatly reduced.
Non-Welded Modular Frame, Stronger Long-Term ReliabilityThe frame is connected by high-strength pinned bolts instead of traditional full welding. It avoids the fatigue crack risk at the welding heat affected zone, and the stress distribution of the whole machine is more reasonable. Even under long-term 24-hour heavy load operation, the frame will not have structural hidden dangers.
Hydraulic Wedge Discharge Adjustment, More Efficient & AccurateEquipped with fully automatic hydraulic wedge adjustment system, the discharge port size can be adjusted steplessly with one key, which can be completed by a single operator in a few minutes. It no longer needs multiple people to cooperate to disassemble and assemble the gasket group, which greatly reduces the downtime caused by discharge port adjustment, and the product granularity is more stable and controllable.
Large-Sized High-Precision Bearings, Longer Service LifeThe moving jaw is equipped with oversized self-aligning roller bearings, with enhanced sealing and dust-proof design. The lubrication system is more stable, the risk of lubricating oil pollution is greatly reduced, and the overall bearing life is more than twice that of traditional models.
Built-In Overload Protection, Effectively Reduce Unexpected LossesWhen unbreakable foreign matter such as iron blocks accidentally enters the crushing cavity, the hydraulic system will automatically open the discharge port to release the foreign matter, and then quickly reset, which effectively protects the main body of the equipment from impact damage, and avoids major shutdown accidents caused by iron blocking the machine.
Main Model Parameters Reference
Main Model Parameters Reference
Model |
Max Feeding Size (mm) |
Discharge Range (mm) |
Processing Capacity (t/h) |
Matched Power (kW) |
|---|---|---|---|---|
C80 |
410 |
40-175 |
55-370 |
75 |
C96 |
460 |
60-175 |
105-430 |
90 |
C106 |
560 |
70-200 |
150-560 |
110 |
C116 |
610 |
70-200 |
165-580 |
132 |
C120 |
700 |
70-175 |
175-595 |
160 |
C130 |
800 |
100-250 |
270-915 |
185 |
C150 |
960 |
125-250 |
340-970 |
200 |
C160 |
960 |
150-300 |
430-1260 |
250 |
C200 |
1200 |
175-300 |
630-1575 |
400 |
We also provide customized configuration services for different working conditions, which can match the appropriate model according to your material properties, hourly output requirements, finished product size and special site conditions.
