Engineered for Unmatched Primary Crushing Efficiency
The C Series Jaw Crusher redefines heavy-duty primary crushing with its optimized V-shaped deep crushing cavity, where the material is pinched and crushed evenly across the full height of the cavity instead of being concentrated only near the top. This design eliminates dead zones inside the chamber, ensuring every chunk of hard rock, ore or recycled concrete receives consistent squeezing action, leading to higher throughput, more uniform cubical end products and far less material buildup that causes unplanned blockages. Even when fed with large, unprocessed boulders up to 1200mm in size, it maintains a smooth, aggressive feed intake that rarely requires pre-screening ahead of the crushing stage.
Robust Construction Built for 24/7 Continuous Operation
Every structural detail of the C Series is engineered for extreme durability in the most demanding work sites. Its heavy-duty integrated cast steel frame, paired with oversized, precision-machined eccentric shaft and high-quality bearings, delivers exceptional resistance to shock loads and fatigue failure. Unlike lightweight general-purpose jaw crushers, this model is designed to handle the toughest abrasives and hardest materials day in and day out, drastically extending its overall service life while minimizing the risk of unexpected breakdowns that halt your entire production line. The standard protective plates behind jaw dies and replaceable toe wedges also shield key frame components from premature wear, so your core investment stays protected for years.
Smart Cost-Saving Design Across the Full Lifecycle
The C Series is built to drive down your total operating cost from the very first day of installation. Its long, well-aligned stroke at the bottom of the crushing chamber delivers far more effective crushing action per rotation, cutting down unnecessary energy waste and significantly reducing power consumption per ton of finished product. The reversible high-manganese jaw plates double usable wear life, while the lightweight composite safety guards and dedicated maintenance toolset make jaw die, cheek plate and toggle plate swaps faster and far less labor-intensive. The optional Active Setting Control system automatically adjusts the closed side setting when uncrushable objects enter the cavity, preventing overload damage and allowing continuous operation without manual shutdowns for clearing blockages.
Wide Versatility for Diverse Working Scenarios
This full C Series lineup covers models from compact, space-saving units for small to medium quarries up to heavy-duty large-scale versions for high-capacity mining operations, with throughput ranging from 50 t/h all the way up to 1400 t/h. It performs reliably whether deployed in a stationary fixed crushing plant, a semi-mobile processing setup or even an underground mining application with limited headroom. It works seamlessly with subsequent secondary and tertiary crushing stages, and supports custom configurations to match specific site requirements, making it the flexible, future-proof primary crushing core for almost any size of aggregate, mineral processing or construction waste recycling project.

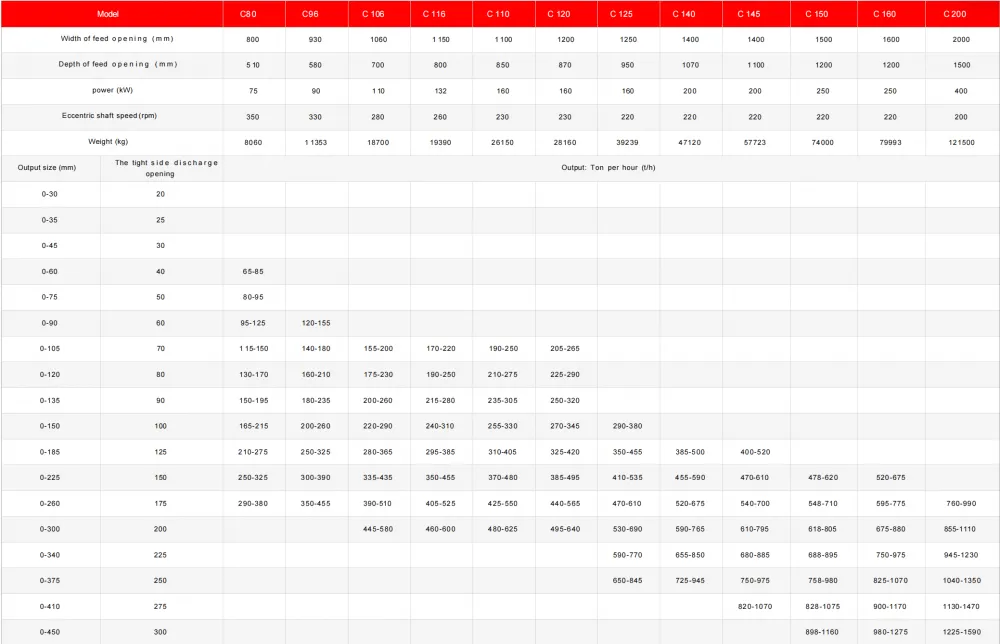

Main Model Parameters Reference
We also provide customized configuration services for different working conditions, which can match the appropriate model according to your material properties, hourly output requirements, finished product size and special site conditions.
Product Tags: high crushing ratio , non-welded frame hard rock , low operation cost primary
