XZFT Attachments excavator rotatory stone grapple:
Product description:

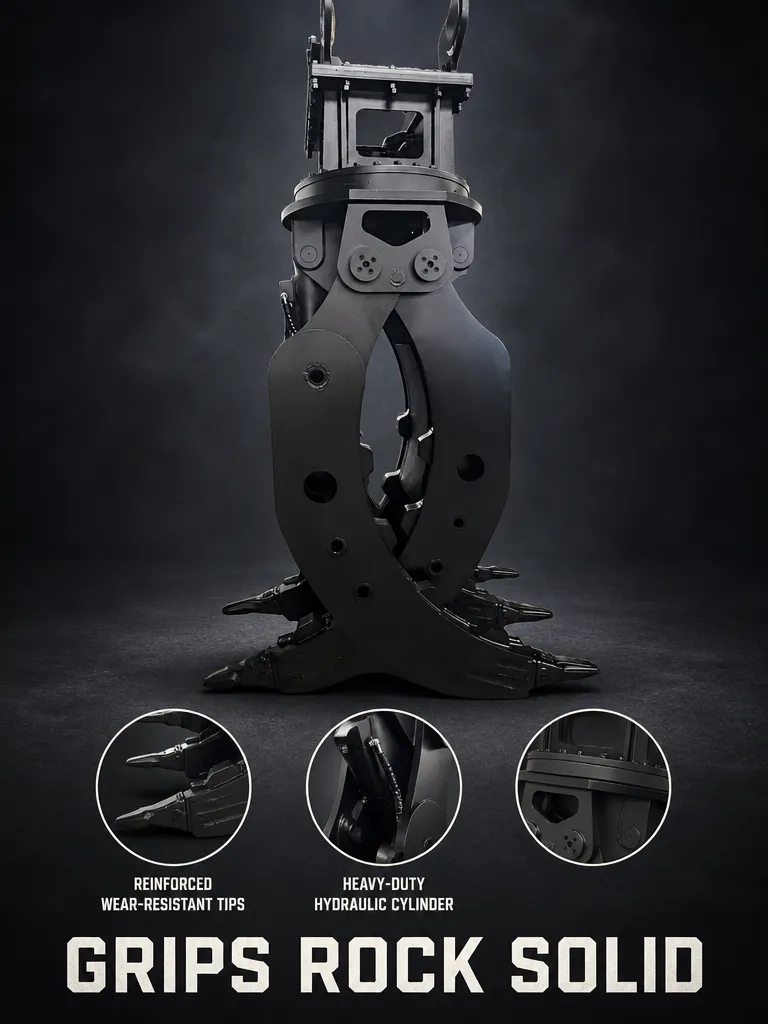

It turns as well as it holds: rotation between the head and the body lets the tines be turned onto the load, which a fixed grab cannot do.
The tine tips are spiked, so the bite into stone is held by the points rather than by friction across a flat edge.
The mounting head is a pin-on bracket with two ears, so the unit hangs under the machine linkage or a coupler at the top.
The rotation unit is bolted between two flanges, so it can be taken off as a separate assembly when it needs service.
Each tine is a curved member pivoted in the body, so the tines move while the load is carried by the body around them.
Advantages:
Made of alloy manganese steel, with high wear resistance and long service life.
Equipped with high-torque hydraulic motor and brake function, enabling flexible and efficient grabbing with large capacity per operation.
Built-in lock valve on the oil cylinder prevents claw drop and material fall, ensuring safer operation.
Product Parameters:
| Item/Model | Unit | XZFT40A | XZFT60A |
XZFT60AP | XZFT150A | XZFT150AP | XZFT220A | XZFT220AP | XZFT300A |
| Suitable forexcavator | ton | 4-5 | 6-9 | 6-9 | 9-16 | 12-18 | 18-26 | 20-28 | 28-35 |
| Weight | kg | 320 | 435 | 510 | 950 | 1200 | 1800 | 2300 | 2130 |
| Opening A | mm | 1060 | 1400 | 1400 | 1600 | 1600 | 2100 | 2100 | 2500 |
|
Working pressure |
bar | 110-140 | 200-240 | 200-240 | 220-260 | 220-260 | 240-280 | 240-280 | 260-300 |
|
Working flow |
lpm | 30-55 | 100 | 100 | 160 | 160 | 200-250 | 200-250 | 220-280 |
|
Rotation diameter |
mm | 360 | 360 | 360 | 593 | 593 | 752 | 752 | 752 |
Application：
Steel mills and smelters: Loading/unloading of steel, ore, scrap steel.
Ports and terminals: Handling and transfer of heavy materials like building materials and stones.
Forestry and lumber yards: Transportation and stacking of wood, stones.
