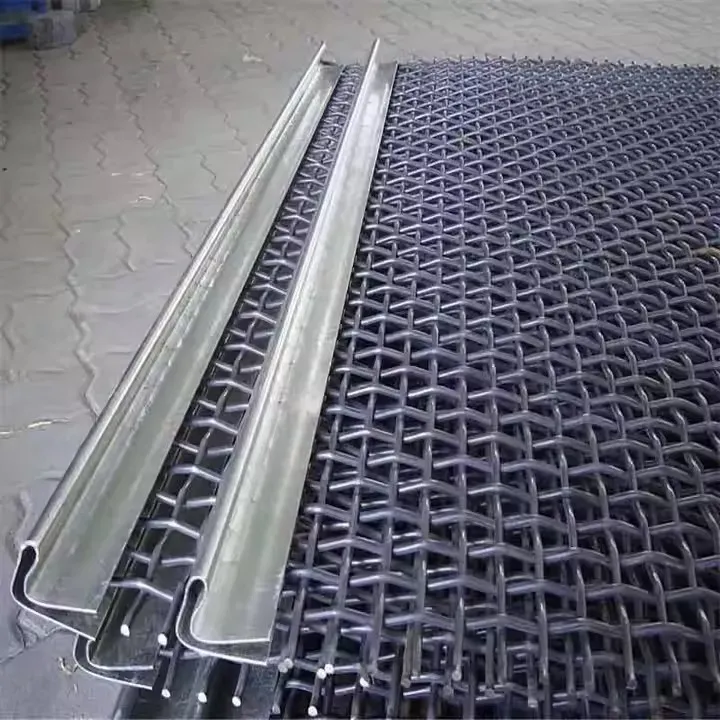

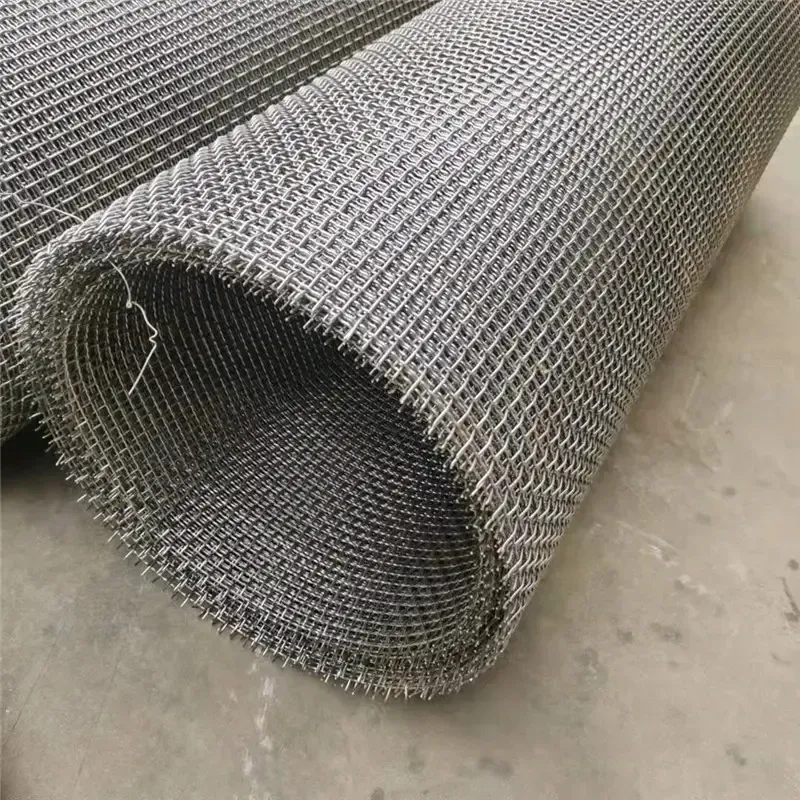

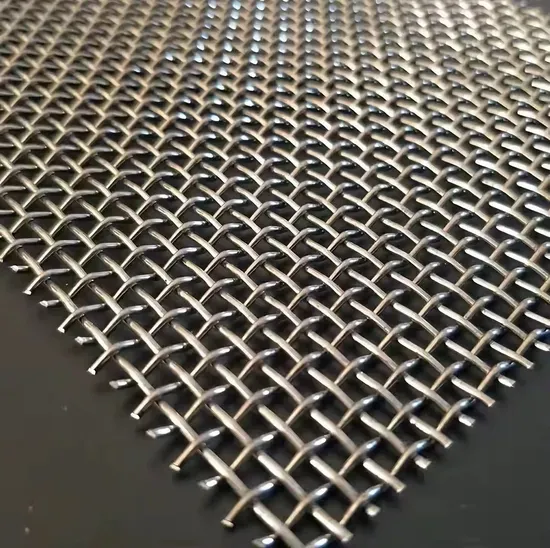

As a trusted manufacturer since 1998, Anping County Boli Hardware Wiremesh Products Factory presents our premium 65Mn Steel Mesh Screen with 3 mm wire diameter and 12 mm square opening, designed to meet rigorous industrial screening standards. Our decades of expertise in wire mesh production ensure that every roll delivers consistent quality, dimensional accuracy, and long-lasting performance. This product is the ideal choice for applications requiring precise screening, sizing, grading, or scalping in mining, quarry, aggregate, coal, and ore processing.
Our 65Mn steel mesh screen undergoes a meticulous pre-crimping process before weaving, which locks the wires in place and creates a stable, flat mesh surface. The use of 65Mn high-carbon steel provides excellent wear and impact resistance, making it suitable for demanding dry and wet screening environments, including abrasive ore and quarry rock applications. With an annual export value of US$5–10 million and shipments to over 15 global markets, we have built a reputation for delivering cost-effective, durable wire mesh solutions.
Below you will find the key technical specifications, detailed product features, and answers to frequently asked questions. We invite you to explore how this 65Mn steel mesh screen can enhance your project or production line.
Technical Specifications
| Material | 65 Mn |
| Wire Diameter | 3.0 mm-15mm (±0.05 mm) |
| Opening Size | 10mm × 10mm--150x150mm (square opening) |
| Feature | Corrosion resistance, Heavy impact resistance, Long service life, High temperature resistance, High tensile strength and toughness |
| application | Power plants,Mining industry,Paper and pulp industry,Coal industry,Chemical industry,Cement industry,Quarrying industry,Iron ore and steel industry,Stone crushing industry |
| Weave Type | Double crimped, intermediate crimped, flat top crimped, lock crimped. |
| Surface Treatment | Anti rust oil painted. |
| Available Sizes | Customizable: width 1m–2m, length 30m–50m rolls; sheets available on request |
Product Features & Benefits
Wire diameter: 0.8mm-12.7mm
Mesh hole: 2mm to 100mm
Angle: 30 degrees, 45 degrees,60 degrees
Crimped Wire Mesh Shape: v-shaped, u-shaped
Hook Type: C or U hook for 30°-180°
Weaving Type: Double crimped, intermediate crimped, flat top crimped, lock crimped.
Mesh Type: Square, rectangular slot, long slot.
Surface Treatment: Anti rust oil painted.
Edge Preparation: Plain, bent, reinforced shroud, welded shroud, bolt shroud.
Features: wear-resisting, high temperature resistant, high toughness, anti - seismic tensile resistance, not disturbing, the sieve permeability is better than steel, iron screen.
Applications: Applies to vibrating screens or stone crusher for sieving of mine and aggregates, as well as asphalt mixer plant in road building.It also can be used in filtering and protection of petroleum, chemical industry and ocean industries with acid and alkali environment, making glass reinforce, various baskets for life and industrial use, art crafts, baskets used in the kitchen and the refrigerator.
Typical Applications
Industrial screening and sieving (aggregates, grains, minerals)
Liquid filtration (municipal water, wastewater, chemical processing)
Security and safety guarding (machine guards, window grilles, partitions)
Architectural mesh (facade cladding, sunshades, decorative panels)
Agricultural fencing (poultry cages, rabbit hutches, plant trellises)
Marine and offshore applications (filters, walkway mesh)
Mining and quarrying (vibrating screens, rock sizing)
With over 25 years of manufacturing experience and a global export network spanning North America, South America, Europe, Asia, Africa, and Oceania, Anping County Boli Hardware Wiremesh Products Factory has supplied millions of square meters of crimp wire mesh to satisfied customers worldwide. Our annual export value of US$5–10 million reflects the trust and repeat business we have earned. We ship from major Chinese ports (Tianjin, Qingdao, Shanghai, Foshan) with flexible delivery options.
Every batch of our 304 stainless steel crimp wire mesh undergoes in-house inspection for wire diameter, opening size, and tensile strength before packaging. We are committed to providing consistent quality, competitive pricing, and responsive customer service. Whether you need a standard roll or a custom-cut sheet, we can fulfill your order efficiently.
Contact us today to request a quote, discuss your specifications, or order a sample. Let our expertise support your success.
Contact us for inquiry now
Frequently Asked Questions (FAQ)
Can I order custom dimensions (width/length)?
Yes, we offer customizable sizes. Standard rolls are 1m wide × 30m long, but we can produce widths up to 2m and lengths up to 50m per roll. Sheet cuts are also available.Is this mesh suitable for outdoor use?
Absolutely. 304 stainless steel provides good corrosion resistance in most outdoor environments. For coastal or highly corrosive conditions, we recommend 316 stainless steel (available upon request).What is the maximum load capacity?
Load capacity depends on the mesh size, support structure, and installation method. For general guidance, 1mm wire diameter with 10mm opening can support moderate static loads. Please contact us for specific load calculations.Do you offer samples before bulk order?
Yes, we provide small samples (e.g., A4 size) for evaluation. The sample cost is typically waived for serious inquiries, but shipping charges may apply.What standards does this mesh comply with?
Our mesh is manufactured to meet common industrial specifications for wire diameter tolerance, opening size, and mechanical properties. We do not claim specific certification unless explicitly requested and verified.How is the mesh packaged for export?
Rolls are wrapped in waterproof kraft paper, then plastic film, and secured with steel straps. Plywood pallets or crates are used for larger orders to prevent damage during transit.What is the typical lead time for a standard order?
For standard specifications, lead time is 10–15 working days after order confirmation. Custom sizes or special treatments may require 20–25 working days.Can I get a discount for large quantities?
Yes, we offer volume discounts for orders over 500 rolls or 10,000 square meters. Contact our sales team for a tailored quotation.
