Thyssenkrupp Escalator Temperature Sensor Phase Sequence Relay / MPD-A MPD-C MPD-D
Negotiable
MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Drive Mode:
DC
Persons:
>20
Use of Occasions:
Public Traffic
Payment & Shipping
Payment Methods:
Port of Shipment:
JINAN
Delivery Detail:
2 days
Related Products
-
Low Price China Escalator for Shopping Mall From China FactoryNegotiableMOQ: 1 Unit -
KONE Elevator Buttons From NovusNegotiableMOQ: 2 Units
-
China Best Quality FUJI Passenger Elevators 450kg MRL Villa Elevator | Machine Roomless Passenger Lift With PM Gearless Traction MachineUS$ 6000MOQ: 1 Unit
-
Thyssenkrupp Escalator Temperature Sensor Phase Sequence Relay / MPD-A MPD-C MPD-DNegotiableMOQ: 2 Pieces
-
IFM KN5121 Capacitive High Temperature Sensor Sensor for Low Dielectric MediaNegotiableMOQ: 1 Piece
Drive Mode
DC
Persons
>20
Use of Occasions
Public Traffic
Guide Rail
T Guide
Type
Control System
Suitable for
Elevator
Speed
>3.50m/s
Control Type
Microcomputer Frequency Control
Load Capacity
5000kg
Lift Mechanism
Lift Chain

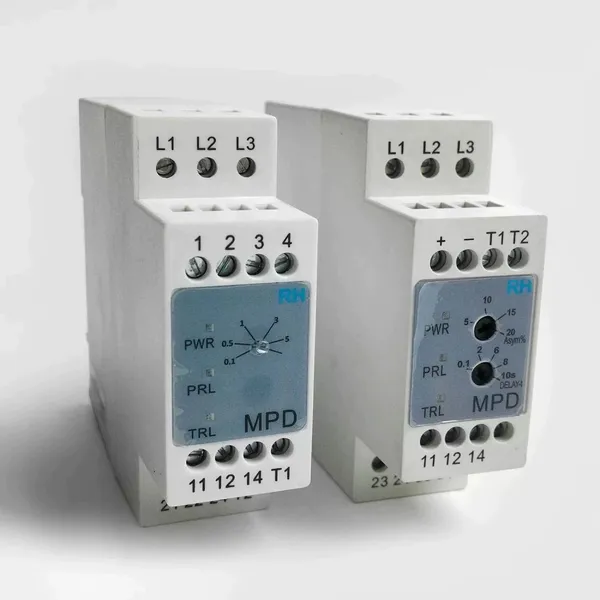

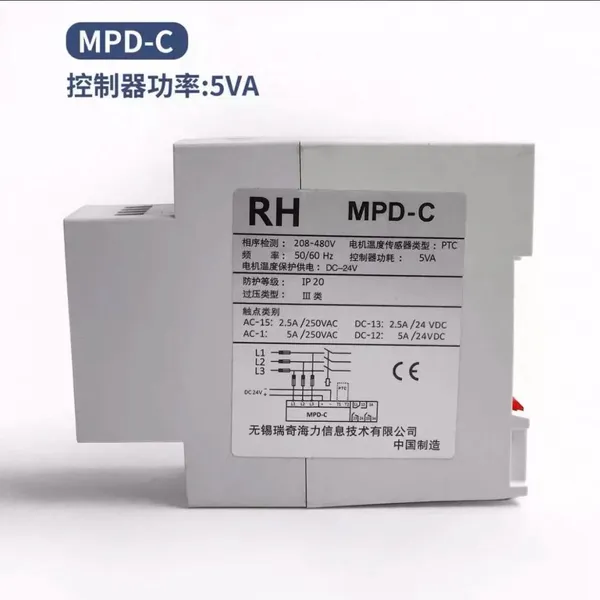

MPD-A MPD-C MPD-D Phase Monitoring and Motor Protection Module for ThyssenKrupp Escalators
The MPD-A protection module is used in ThyssenKrupp escalator control systems for three-phase supply monitoring and motor temperature protection. It supports a phase monitoring voltage range of 208–480 V AC at 50/60 Hz and connects to a PTC motor temperature sensor.
The module provides relay contacts for integration into the escalator control circuit. Before ordering, please confirm the module model, terminal layout and electrical specifications against the existing unit.

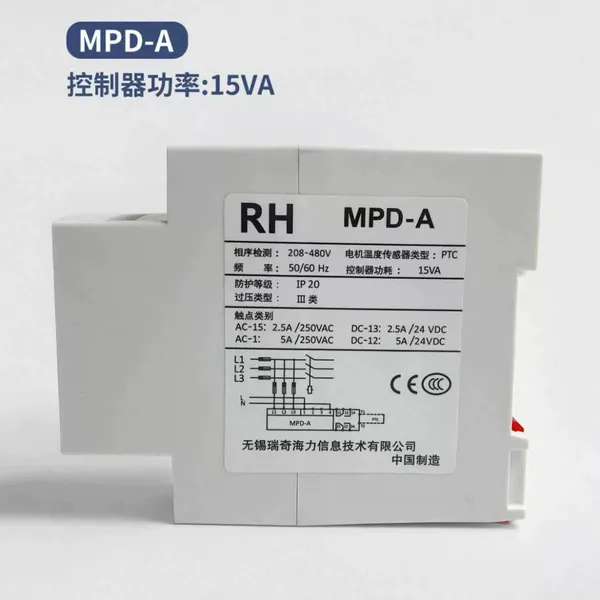

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | MPD-A |
| Application | ThyssenKrupp escalators |
| Phase monitoring voltage | 208–480 V AC |
| Frequency | 50/60 Hz |
| Motor temperature sensor type | PTC |
| Controller power consumption | 15 VA |
| Protection rating | IP20 |
| Overvoltage category | III |
| AC-15 contact rating | 2.5 A / 250 V AC |
| AC-1 contact rating | 5 A / 250 V AC |
| DC-13 contact rating | 2.5 A / 24 V DC |
| DC-12 contact rating | 5 A / 24 V DC |
| Country of manufacture | China |
Please send a photo of your existing module and the escalator model so we can check compatibility and provide a quotation.
