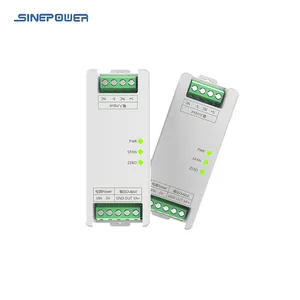

Help CenterSPS2-NC DC Current Isolated Transmitter
Product Spotlights
Related Products
-
SPS3-NC Shunt Signal Isolator Isolated Shunt Signal TransmitterNegotiableMOQ: 1 Piece -
Single Phase Thyristor Control Card/ SCR Firing Card/ Power Regulator With RS485 Communication FuinctionNegotiableMOQ: 1 Piece
-
Power Measurement Module Power Parameter Acquisition Module/ Energy Data CollectorNegotiableMOQ: 5 Pieces
-
SPE8-ME Three-Phase Power Parameter Acquisition ModuleNegotiableMOQ: 5 Pieces
-
12 Pulse Battery Charge Thyristor Control Panel With Boost Charging & Flow Charging & Equalizing ChargeNegotiableMOQ: 1 Piece
Wiring and indication
Installation Instructions
This module uses the DIN35mm rail mounting method. The rail should comply with the installation dimension specifications for the TH35- 7.5 type rail according to the national standard GB/T19334-2003. Users can easily install or remove the module on the rail. Installation must be stable and secure. This module also supports screw mounting without a rail.
Basic Parameters | |
Power Supply |
DC12～36V(DC24V recommended) |
Power Consumption |
|
Transmission Accuracy |
±0.1%F.S (+25 °C) |
Temperature Drift |
≤200ppm/ °C |
Response Time |
≤1mS |
Non-Linearity |
Maximum 0.075% at 5V |
Power Protection |
Reverse Power Voltage |
Isolation Voltage |
3000VDC |
Dielectric Strength |
1500VAC/1 minute (power, input, output) |
Insulation Resistance |
≥100M Ω (power, input, output) |
Electromagnetic Compatibility |
Complies with GB/T 18268.1 (IEC61326-1) |
Input | |
Input range |
DC 0-1000V (see product name for input range) |
Input impedance |
≥1M Ω |
Input bandwidth |
DC-20kHz |
Input overload capacity |
1.2 times the nominal measured voltage |
Output Terminal | |
|
Output Signal |
0-5V |
0-10V |
|
4-20mA |
|
0-20mA |
|
Load Capacity |
Voltage Output RL ≥ 2kΩ |
Current Output RL ≤ 500 Ω |
|
Output Ripple |
≤ 10mV (250 Ω load) |
Environmental Conditions | |
Operating Temperature |
-20℃~+60℃ |
Storage Temperature |
-40℃~+85℃ |
Relative Humidity |
10%～90%RH (non-condensing) |
Atmospheric Pressure |
80kPa～106kPa |
Terminal Mark |
Function Description |
VIN |
Power supply positive terminal, DC12-36V input |
OV |
Power supply negative terminal |
GND |
Voltage output negative terminal |
OUT |
Voltage output positive terminal or current output negative terminal |
VA+ |
Current output positive terminal |
S+ |
Input signal positive terminal |
NC |
No pin |
S- |
Input common negative terminal |
NC- |
No pin |
Indicator Mark |
Function Description |
PWR |
Power indicator |
SPAN |
Full-Scale Output Adjustment Position |
ZERO |
Zero Output Adjustment Position |
Product Naming Rules
Using the SPS1010-NC20L as an example: One-input, one-output signal isolation module, input 0-10V, output 0-5V, transmission accuracy 0.1% F.S., N-shaped form factor, module DC12-36V power supply. | ||||||||
SPS |
1 |
01 |
0 |
N |
C |
2 |
0 |
L |
|
Product Type |
Input signal |
Channel configuration |
Output signal |
Product appearance |
Transmission accuracy |
Isolation level |
Input range |
Power Supply |
|
Signal isolation transmission module |
1 DC Voltage 2 DC Current 3 Shunt 4 AC Voltage 5 AC Current 6 Resistance 7 Temperature 9 Other |
01 1-input 1-output 02 1-input 2-output 03 2-input 2-output |
0 0-5V 1 0-10V 2 4-20mA 3 0-20mA 9 Other |
N Form Factor K Form Factor M Form Factor W Form Factor F Form Factor R Form Factor |
A 0.5%F.S B 0.2%F.S C 0.1%F.S D 0.05%F.S |
0 None 1 1500V Isolation 2 3000V Isolation 3 Other Voltages |
0 0-5V 1 0-10V 2 0-50V 3 0-10V 4 0-250V 5 0-500V 6 0-750V 7 0-1000V 9 Other Voltages |
L DC12-36V H AC220V C +12V D +24V Z Passive |
