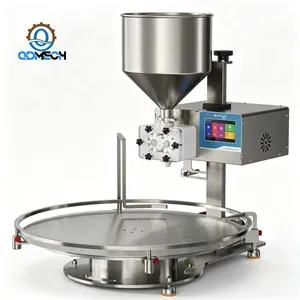

Rotary Turntable Honey Filling Machine Mo902 650mm Turntable 50kg Load for Small Batch Bottling
Application:

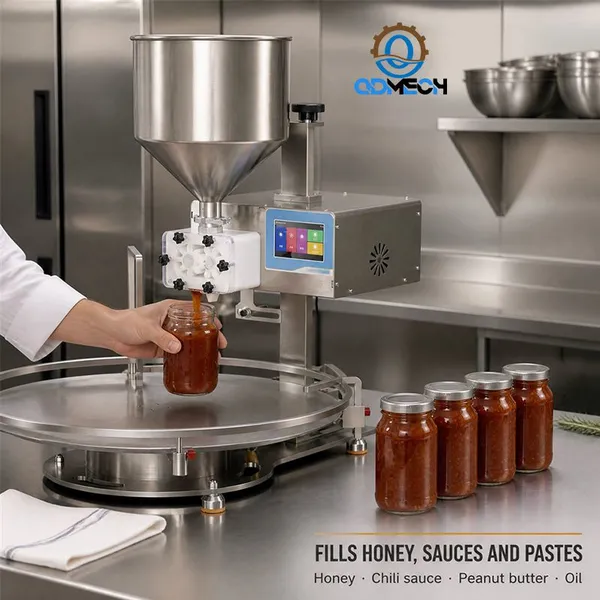

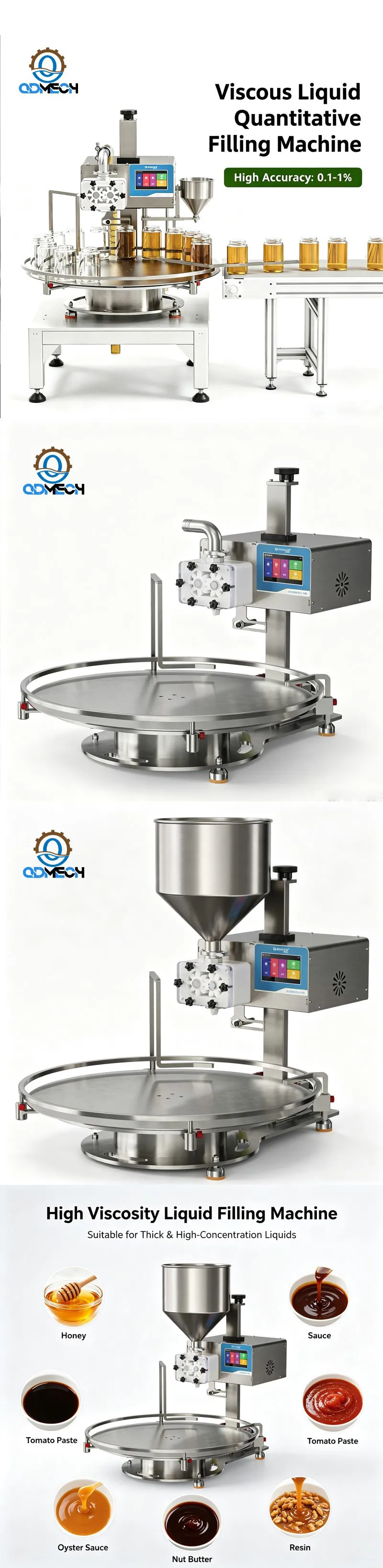

This self-priming gear pump filling machine is specially designed for high-viscosity liquid filling. Widely used in food processing workshops, health product factories, condiment production plants and chemical raw material workshops. It can fill honey, paste cream, fruit jam, tomato sauce, peanut butter, oyster sauce, high viscosity yogurt and resin. Suitable for small and medium batch quantitative filling of bottled products, compatible with bottle height within 25cm. It supports two feeding modes: hopper feeding and self-suction feeding, ideal for product trial production, semi-automatic packaging and supporting use with assembly line.
Advantage :
1. High filling accuracy, precision reaches ±1g, accuracy range 0.1%-1%, stable filling volume for thick & sticky liquid.

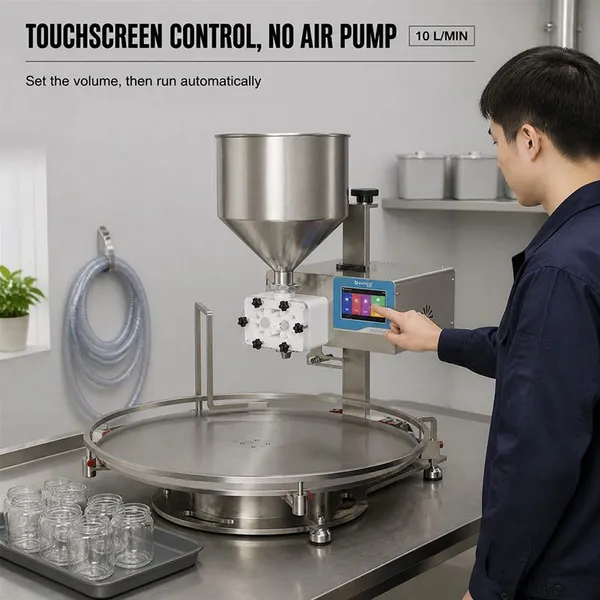

2. PLC control with 5-inch touch screen, simple operation, supports manual & sensor auto start-stop.
3. Wide viscosity adaptability, handles liquid from 1000CP to 180000CP, works well for heavy viscous materials like honey and nut butter.

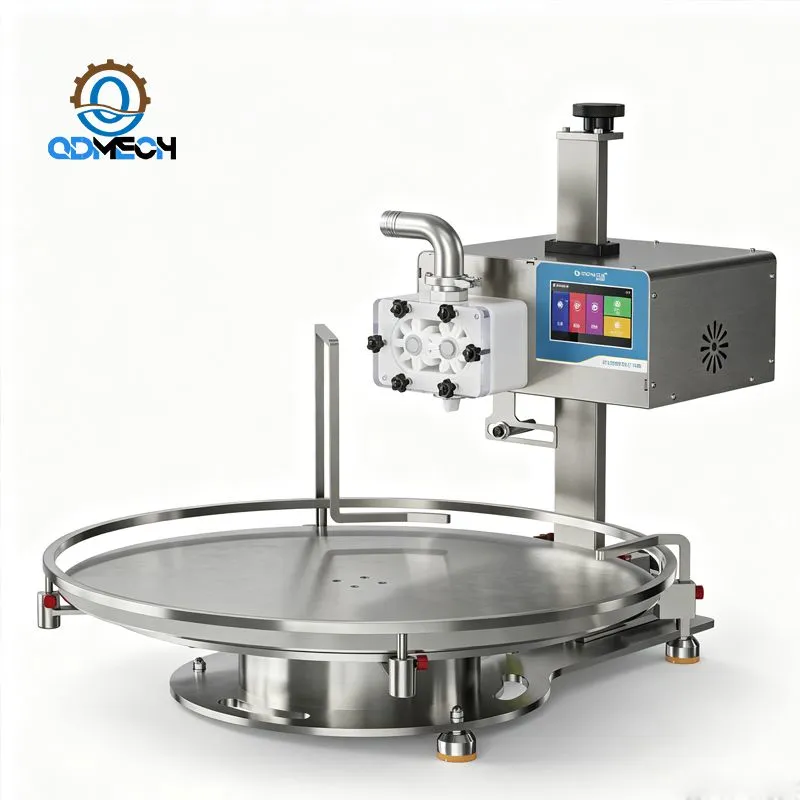

4. Built-in rotary turntable, 0-3 adjustable rotation speed, 50kg loading capacity, improve bottle feeding efficiency.
5. Wide voltage AC100-240V, no air pump required, low power consumption ≤400W, easy to match global power supply.
6. Two feeding options: hopper type or self-priming type, max suction lift 1.5m.

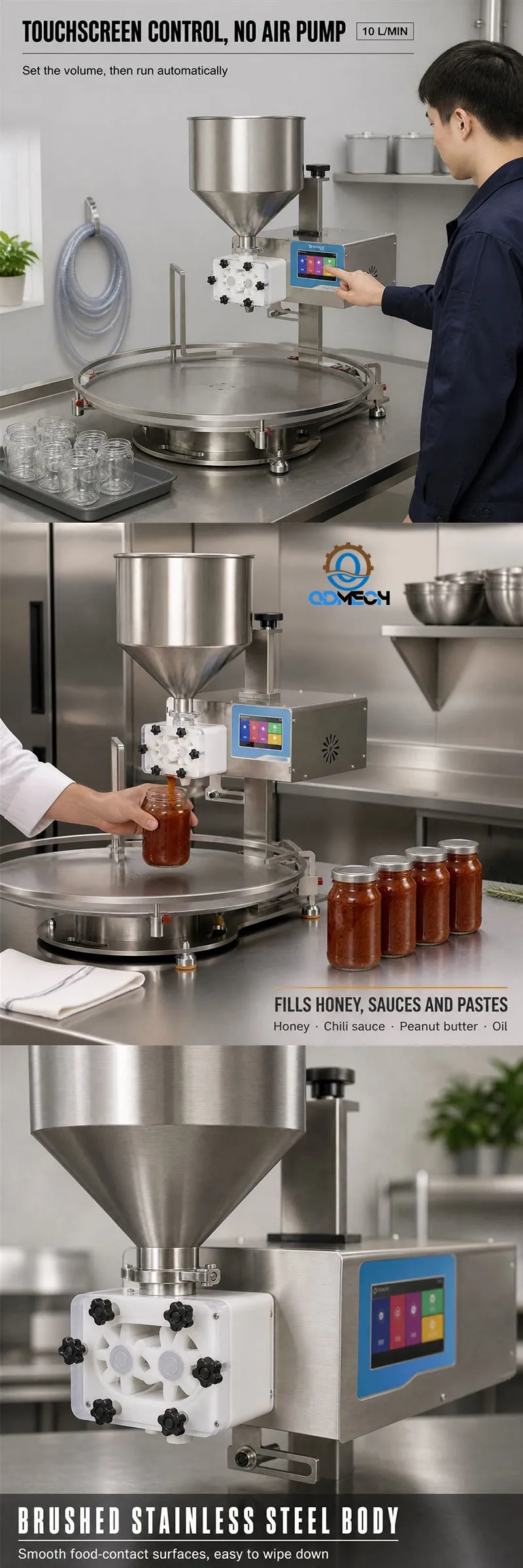

7. Compact stainless steel body, easy to disassemble, clean and maintain.
8. Filling range from 5g to 2000g, strong versatility for different filling weight requirements.
Technical Parameter:
Parameter |
Value |
Equipment Model |
QD-8-X-3 |
Pump Type |
Gear Pump |
Control Mode |
PLC Control |
Overall Dimension |
855mm*670mm*635mm (Without barrel) |
Start/Stop Method |
Sensor/Manual |
Flow Rate |
10L/min |
Expansion Equipment |
Turntable |
Filling Accuracy |
±1g |
Liquid Feeding Method |
Suction/Hopper |
Display |
5-inch Touch Screen |
Power |
≤400W |
Rated Voltage |
AC100-240V |
Suction/Lift Head |
≤1.5m |
Turntable Load Capacity |
50kg |
Turntable Diameter |
650mm |
Gross Weight |
72kg |
Turntable Speed |
0-3 rpm Adjustable |
Net Weight |
56kg |
Applicable Capacity |
5g-2000g |
Applicable Bottle Height |
≤240mm |
Applicable Viscosity |
1000CP-180000CP |
Applicable Humidity |
≤70%RH |
Applicable Honey Baume |
Liquid 34-43 |
Applicable Liquid Temperature |
≤70℃ |
Product Detail :
Company Profile:
Packing & Shipping
FAQ
Q:Are you a manufacturer or trade company?
A:We are a manufacturer also with trading business. located in luohe city, Henan Province, China, have been in this industry over 18yrs and Verfied by SGS CE Interek Company every year.
Q:What's your company after-sales service?
A:Our machines undergo three inspections before shipment to ensure they are free of defects. Should issues arise due to improper operation: 1. For operational errors, we will resolve all usage difficulties via video call. 2. For machine component issues, we will ship replacement parts to ensure normal operation. 3. Additionally, our engineers travel overseas annually to assist customers with problems they cannot resolve independently.
Q:How about warranty ?
A:One-year warranty. Frankly speaking, our machines are built to last. Each unit undergoes at least three rounds of testing before leaving our factory to ensure it arrives in peak condition. Minor issues that may arise are often due to inexperienced operation, which is why we provide comprehensive English instructional videos and troubleshooting guides to help users master the equipment. Should any questions arise during use, we're always available for video calls to assist.
Q;How to transport without customs clearance experience ?
A:We have reliable forwarder agent which can ship items to you by sea/air/Express to your home. We will help you choose the most suitable shipping service.
Q:Does your company provide training?
A:Yes, we provide a series of instructional videos and after-sales service videos, supporting Chinese, English, French, Spanish, and Arabic.
Q:What is your company Differences from other brands in China ?
A:We seek long time cooperation. We are not only selling machines, we pay more attention to after-sales service. We have always believed that the customer's reputation is the best advertisement. We hope to really help our customers use machines and bring growth to their business. You can view our customers' feedback, facts speak louder than words.
Q:What are your Price Terms?
A:Price can be based on FOB, CFR, or CIF, EXW, FCA,DAP, DDP,etc.
Q:Can I print my Logo on the machine?
A:Yes, sure.we can add your logo to help u gain market repution.
