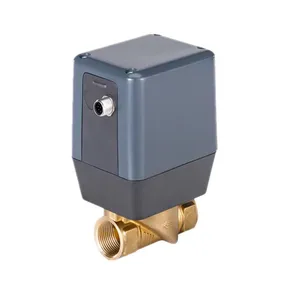

Help CenterBURKERT 3285 Motorized Disc Control Valve DN 15-25 Kvs 1.8-9.6 Ceramic Seat 0-6 Bar Stepper Actuator 24 V DC Brass SS Body
Product Spotlights
Related Products
-
BURKERT 117 Direct Acting Plunger Solenoid Valve DN 1.2-2.4 PTFE Separated Diaphragm ETFE Housing Aggressive Media IP65 20 msNegotiableMOQ: 1 Set -
BURKERT 0255 Direct Acting Solenoid Valve DN 1.0-6.0 High Pressure Temperature Brass SS Body FKM PTFE Seals to 210 C IP65NegotiableMOQ: 1 Set
-
BURKERT 6212 Servo Diaphragm Solenoid Valve 2/2 DN 10-20 Media Separated NC NO Brass SS Plastic Body Soft Closing 24 V DC IP65NegotiableMOQ: 1 Set
-
BURKERT 6712 Media Separated Whisper Valve DN 0.8 Volume 2 ul Noise 36 dB PEEK PPS FFKM EPDM 30 Million Cycles DispensingNegotiableMOQ: 1 Set
-
BURKERT 0142 Servo Diaphragm Valve DN 15-50 PVC Body PVDF Internals NC NO Convertible Manual Override Corrosive Media ValveNegotiableMOQ: 1 Set
Product Overview
The BURKERT Type 3285 motorized disc control valve delivers an excellent control range with fast response and low power consumption for liquids and gases. The actuator is isolated from the flow path, and versions are available as standard on/off valve, with positioner or with process controller. Engineering ceramic seat sealing and brass or stainless steel bodies cover a broad spectrum of process duties at 0-6 bar.
Key Features
Actuator isolated from the flow path, wide range with fast response
Nominal sizes DN 15 to 25 (NPS 1/2 to 1), Kvs 1.8 to 9.6 m3/h
Working pressure 0-6 bar(g); vacuum version down to -0.9 bar(g) optional
Engineering ceramic valve seat, NBR / EPDM / FKM seal options
Brass or stainless steel body; flow over the seat
Versions: standard switching, control valve, positioner or process controller
Technical Specifications
Country of origin: Germany
Nominal sizes: DN 15 to DN 25, NPS 1/2 to 1
Kvs value: 1.8 to 9.6 m3/h; flow direction over the seat
Working pressure: 0 to 6 bar(g); vacuum option to -0.9 bar(g)
Closing time: 4 s; position control dead band ±0.5% (rangeability 1:100)
Seals: NBR (liquids), EPDM (liquids and special gases e.g. ammonia, acetylene), FKM (neutral gases)
Seat seal: Engineering ceramic
Body: Brass or stainless steel; disc switching / disc control design
Media temperature: EPDM -30 to +70 °C; FKM and NBR 0 to +70 °C
Working voltage: 24 V DC ±10% (ripple max. 10%); power
Weight: approx. 0.8 kg (DN 8) to 1.5 kg (DN 25)
Protection class: IP50; ambient -10 to +60 °C; LED status display; UPS module optional
Applications
Control of neutral gases and liquids in process dosing loops for semiconductor manufacturing, laboratories, gas analysis and food processing applications.
