Product Overview

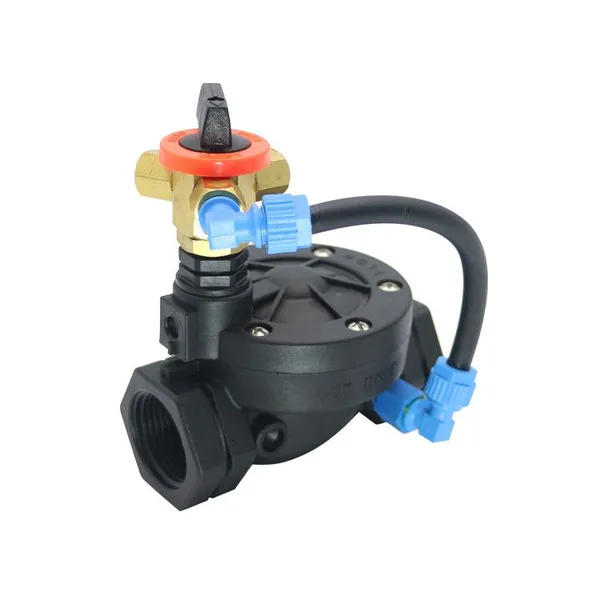

The BACCARA G75-SM is a 2-way NC irrigation valve supplied with a 3 W 1.2 mm G75 solenoid and finger filter with accessories. The reinforced nylon body with NR diaphragm covers 3/4" to 2" BSPT ports at 0.3-10 bar with a minimum pressure differential of 1 bar. Manual control offers three modes: auto for solenoid operation, manual to hold the valve open, and closed to keep it shut - covering agriculture and irrigation, landscaping, mining, water treatment and process automation.
Key Features
2-way NC function, 3/4" to 2" BSPT ports, 0.3-10 bar
Supplied with 3 W 1.2 mm G75 solenoid (all voltages: AC, DC and latching)
Three-mode manual control: auto / manual (held open) / closed
Reinforced nylon body with NR diaphragm and NBR seals
Finger filter and accessories included
Min pressure differential 1 bar
Technical Specifications
Country of origin: Israel
Function: 2-way NC
Port sizes: 3/4", 1", 1-1/2", 2" BSPT
Pressure range: 0.3 to 10 bar
Min pressure differential: 1 bar
Solenoid: G75, 2W NC, 3 W, 1.2 mm; all voltages AC/DC/latching
Fluid temperature: 5 to 50 °C (non-freezing)
Ambient temperature: -10 to +50 °C
Manual control: Reinforced nylon, three modes
Main valve material: Reinforced nylon
Armature material: Stainless steel AISI 300/400 series
Diaphragm: NR
Seal material: NBR
Spring: Stainless steel AISI 300 series
Voltage tolerance: ±10 % of rating
Applications
Agriculture and irrigation, landscaping and horticulture, pipelines, mining and scientific instruments, water treatment, process automation.
