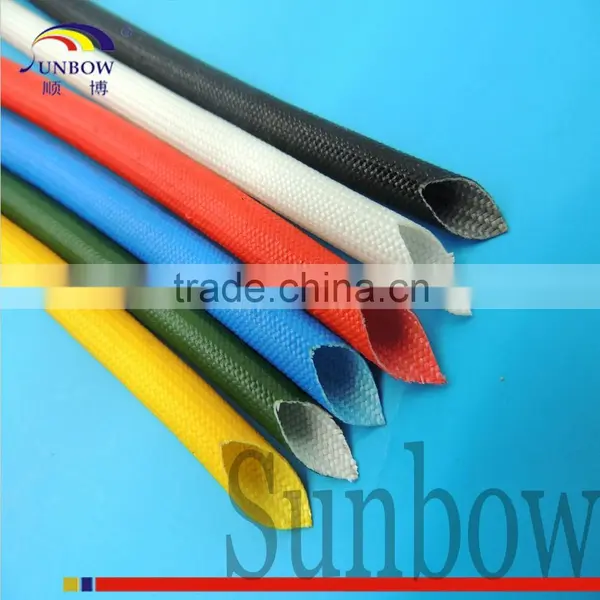

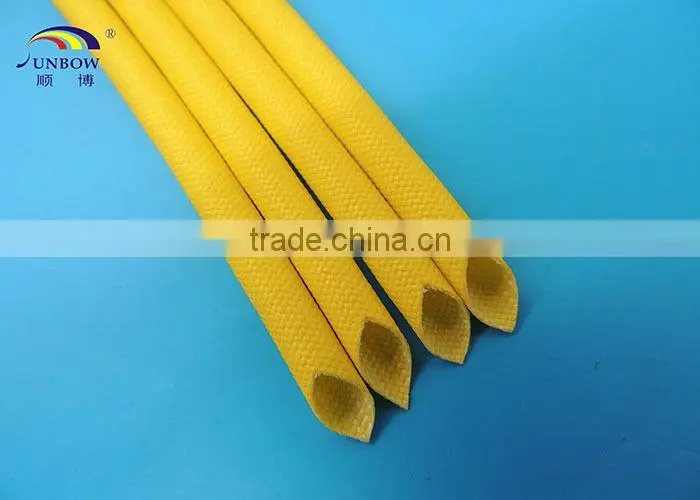

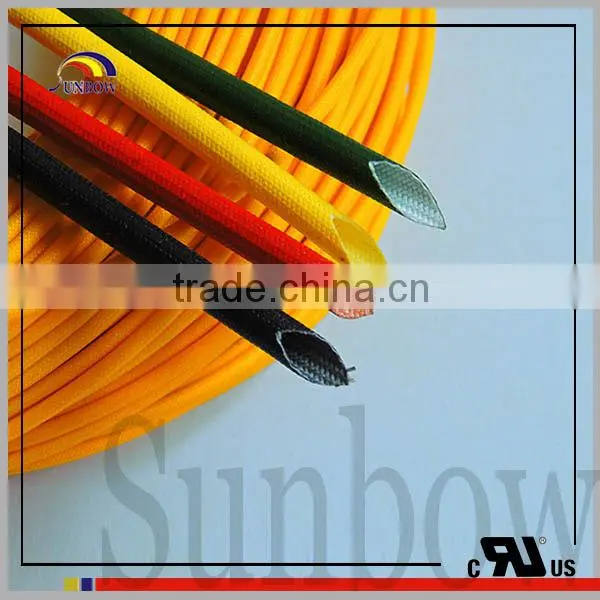

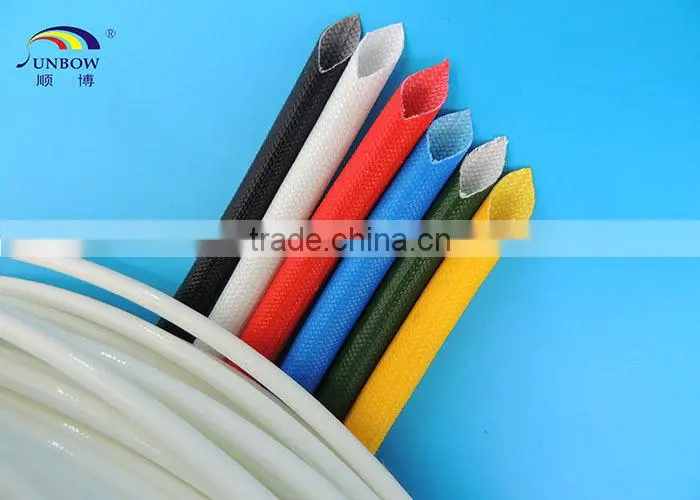

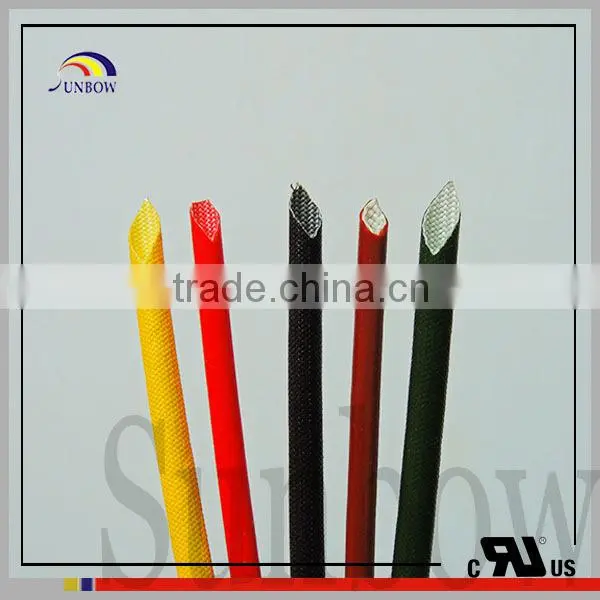

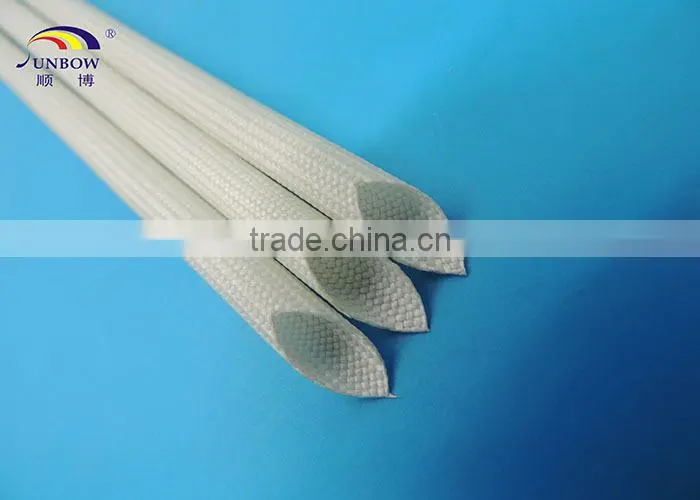

UL Listed Flame Retardant Insulation Silicone Fiberglass Sleeving
1. Model
SB-SGS-12
2. Working Temperature
200C
3. Structure
UL Listed Flame Retardant Insulation Silicone Fiberglass Sleeving is braided with non-alkali fiberglass and then coated by silicone resin processed in high temperature.
4. Characteristics
1) working temperature: 200C
2) breakdown voltage: 1200V
3) thermal endurance: no crack (245±5C 6hrs aging)
4) fire resistance: VW-1 UL1441
5) certifications: CUL, REACH, RoHS, SGS, MSDS, CQC
5. Dimension
INSIDE DIAMETER |
WALL THICKNESS (mm) |
STANDARD PACKAGE (m/roll) |
|
NOMINAL(mm) |
TOLERANCE(mm) |
||
φ0.5 |
+0.2, -0.1 |
≥0.27 |
200 |
φ1.0 |
+0.2, -0.1 |
≥0.27 |
200 |
φ1.5 |
+0.2, -0.1 |
≥0.27 |
200 |
φ2.0 |
+0.2, -0.1 |
≥0.27 |
200 |
φ2.5 |
+0.3, -0.1 |
≥0.32 |
200 |
φ3.0 |
+0.3, -0.1 |
≥0.32 |
200 |
φ4.0 |
+0.3, -0.1 |
≥0.37 |
200 |
φ4.5 |
+0.3, -0.1 |
≥0.37 |
100 |
φ5.0 |
+0.3, -0.1 |
≥0.37 |
100 |
φ6.0 |
+0.3, -0.1 |
≥0.37 |
100 |
φ7.0 |
+0.3, -0.1 |
≥0.42 |
100 |
φ8.0 |
+0.3, -0.1 |
≥0.42 |
100 |
φ9.0 |
+0.3, -0.1 |
≥0.52 |
100 |
φ10.0 |
+0.3, -0.1 |
≥0.52 |
100 |
φ12.0 |
+1.0, -1.0 |
≥0.52 |
50 |
φ14.0 |
+1.0, -1.0 |
≥0.52 |
50 |
φ16.0 |
+1.0, -1.0 |
≥0.52 |
50 |
φ18.0 |
+1.0, -1.0 |
≥0.52 |
50 |
φ20.0 |
+1.0, -1.0 |
≥0.62 |
25 |
φ25.0 |
+1.0, -1.0 |
≥0.62 |
25 |
φ30.0 |
+1.0, -1.0 |
≥0.62 |
25 |
6. Application
UL Listed Flame Retardant Insulation Silicone Fiberglass Sleeving has good insulation dielectric strength, flexibility and resistance property. It can be widely used in insulated, uninsulated and partially insulated conductors, bus bars, leads and electrical components.
