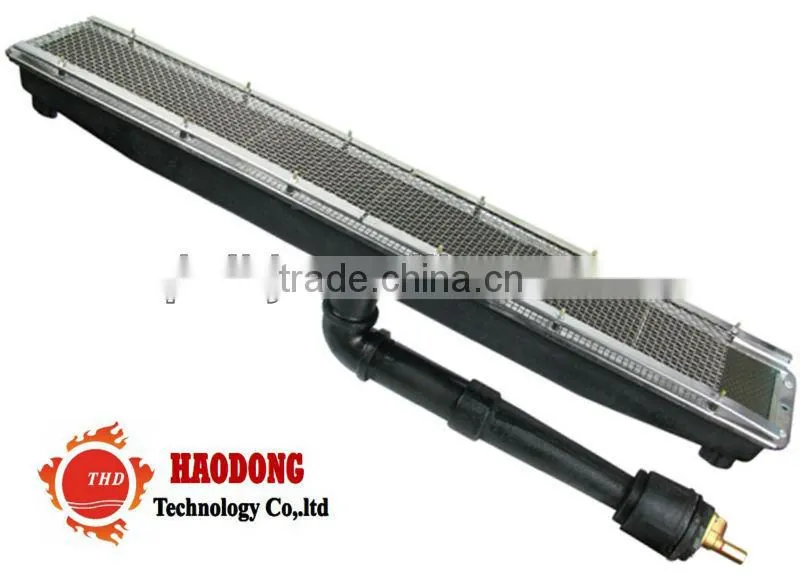

Infrared Gas Heater for Plastic & Rubber machine HD242
Model |
Length (mm) |
Width (mm) |
Hight(mm) |
Weight (kg) |
Consumption |
Heat Output |
Inlet Port (Inch) |
||
NG |
LPG |
||||||||
m3/h |
kg/h |
KW/h |
Kcal/h |
3/8 |
|||||
HD242 |
840 |
130 |
175 |
11.9 |
0.75 |
0.68 |
9.4 |
8120 |
|
Material Descriptions
Shell:gray cast iron
Upper cover:stamped stainless iron
Burning net:Fe-Cr-Al material
Nozzle:brass
Core components:cordierite honeycomb burner plates with rare-earth catalyst-coated
The Technical datas
Table 1:The use of technical parameters
Items |
Technical parameters |
|
Types |
natural gas (NG),liquefied petroleum gas (LPG) |
Light-off temperature |
≤350 |
complete combustion temperature |
≤380 |
|
Heat source temperature
|
around 850 |
Baking temperature range |
30---850 |
Wavelength range |
1.9m--15m |
|
Furnance pressure natural |
gas 150mmAq;liquefied petroleum gas 280mmAq
|
Table 2:
Comparison table for different kinds of fuels and heater's energy consumption
|
Furnace type
Parameters |
Electronic cooker |
Oil furnace |
Coal-fired furnace |
Infrared catalytic heaters |
|
Energy requirement |
10,000Kcal |
10,000Kcal |
10,000Kcal |
10,000Kcal |
Temperature |
180 |
180 |
180 |
180 |
Energy consumption |
Electricity(15 kW/h) |
Electricity (1Kw/h)+ diesel (2Kg) |
Coal (10Kg) |
LPG(0.9Kg) |
Heating time |
20 minutes
|
40 minutes |
90 minutes |
5-8 minutes |
Advantages :
- Energy saving: conversion rate≥90%
- Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
- Whole combustion: 95% of energy released in the form of infrared ray; heating the objects directly
- Long useful time: above 11000hr
- Easily installed
Applied Range:
Plastic & Rubber industry: Rubber Preformer,vulcanizing machine,molding machine etc.
Food Industry: Rice Biscuit, grilled chicken, oven for roast duck, smokeless oven, middle eastern oven, bakery oven etc.
Painting Industry: Liquefied or powered painting assembly line, warm-up, preliminary treatment of heating, desiccating wood, galvanization drying assembly line, phosphatization drying assembly line
Fiber industry: Carpet latex dryer, dyeing dryer, printing dryer, textile dryer, industrial clothes dryer, latex gloves drying assembly line
Glass and ceramics industry: Enamel firing dryer, glass oven, heat-setting machine, mould drying, fritting, parching
Paper industry: All kinds of paper dry lines and auxiliary drying heat wall
Farming and animal husbandry: Heating of barton, heating of crops, grain dryer
We also have igniter, ignition pin and solenoid valve.
