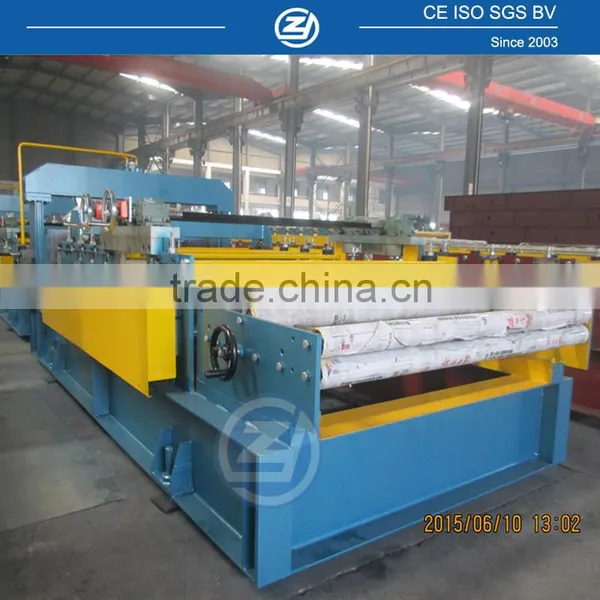

Coil Sheet Slitting & Cut to length Machine
Why choose this machine?
1. Certificate: ISO 9001, CE,
2. Lifetime services
3. Introduced Mitsubishi PLC with touch screen to machine controll system.
4. Roller cover with 0.05mm chrome; 72mm diameter solid steel shaft. Lifetime>10years.
5. One worker operation (minimum)
6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8.Technician overseas installing and training available
1.Technical parameter
Item |
Specification |
|
|
Material |
Type |
Pre-painted steel coil |
Thickness |
0.3-0.7mm |
|
Width of steel sheet |
Maximum 1250mm |
|
Yield strength |
235-345Mpa |
|
Slitting width |
80mm-1250mm |
|
Slitter material |
Cr12 mould steel |
|
Cutter material |
Cr12 mould steel |
|
Numbers of Slitting blade |
6 pairs |
|
Working speed |
15times/min |
|
Type of cutting |
length-set cutting |
|
Size of machine |
2500mmX1700mmX1400mm |
|
Control mode |
Mitsubishi PLC |
|
Operating mode |
Button + Mitsubishi Touch screen |
|
Electric condition |
380V/3Phase/ 50HZ |
|
Main motor power |
5.5 KW |
|
Hydraulic station power |
2.2 KW |
|
2. Components of Steel Sheet Slitting Machine With Optional Automatic Decoiler
Guiding device |
1set |
Leveling system |
1set |
Hydraulic cutting system |
1set |
Controlling system |
1set |
Slitter device |
1set |
Cutter device |
1set |
3. Process flow:
Decoiling material→covering film →Guiding system →Slit sheet into pieces →Cut to length
Steel Sheet Slitting Machine With Optional Automatic Decoiler
Automatic decoiler for option
Slitters (Slitting width is adjustable)

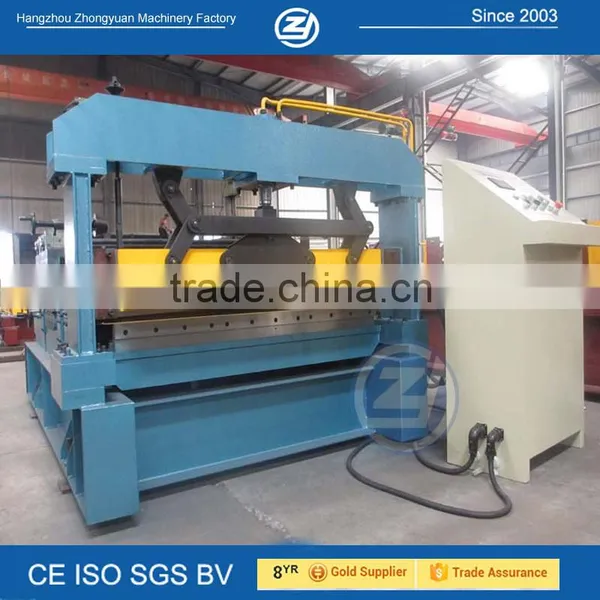

Detail view of cutter
