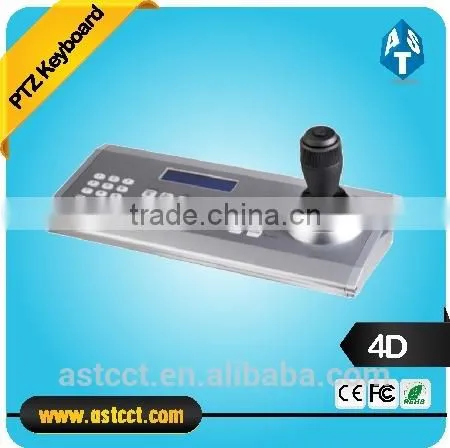

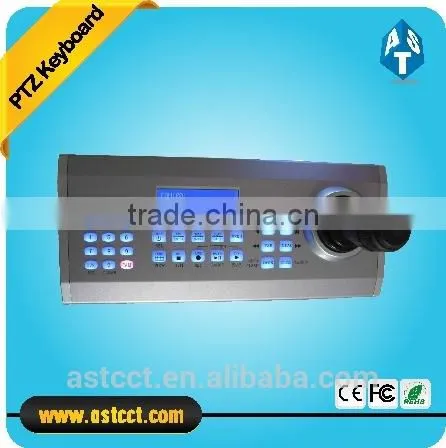

High Speed Dome Camera 4D PTZ Joystick Keyboard Controller
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
AST
Model Number:
ASKB03
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Network IP PTZ 4D High Speed Dome Camera Joystick Network Keyboard ControllerNegotiableMOQ: 1 Piece -
Rs485 3D Ptz Keyboard Controller Mini Joystick Keyboard for Speed Dome Camera Cctv KeyboardNegotiableMOQ: 1 Piece
-
8" TFT-LCD Large Screen High Speed Dome Camera 3D PTZ Keyboard Controller Control VEHICLE PTZ CameraNegotiableMOQ: 1 Piece
-
High Speed Dome Camera 3D PTZ Camera Keyboard Controller Support Pelco-d, Pelco-d, Panasonic, Hikvision Protocol RS485 ControlNegotiableMOQ: 1 Piece
-
Low Price ir High Speed Dome Camera Low Cost Keyboard Controller High Speed Dome CameraNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
AST
Model Number
ASKB03
Product Overview:
The keyboard is a product for professional use in security systems. The keyboard is applied to remotely control digital multiplexers, DVR,NVR,speed dome cameras and IP Camera. It’s ergonomic construction guarantees comfortable operation for security personnel.
1. Protocol:PELCOD/PELCO-P/Panasonic/Samsung/AD(TYCO)/DH/VISCA
2.Bute rate:1200/2400/4800/9600/19200 ;
3. USB 2.0 HID protocol for IP Camera
Main Features:
1..The keyboard can be applied to control CCTV systems, speed dome cameras, DVR,NVR,IP camera , and personal computer monitoring terminal devices.

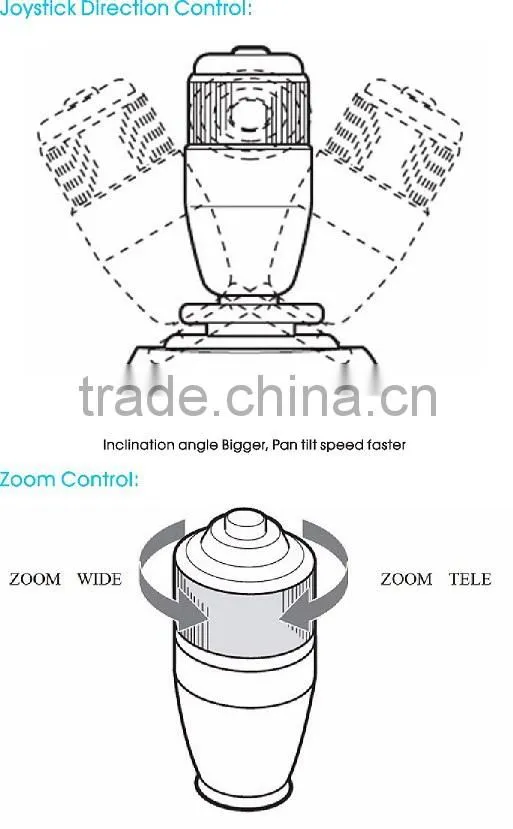

2.. Joystick: 3-axis+1button;
3.LCD: two lines of 20 characters, backlight.

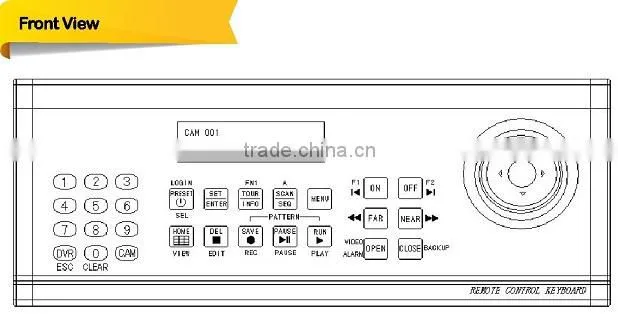

4. 28 keys, silicon rubber + keystroke, one million times long lifetime, backlight;
| Mode | ASKB03 |
| Item | Technical parameters |
| Joystick | 3 axis + 1 buttons, optical sensors, high precision |
| Buttons | 28 ALPS keys, double color backlighting, brightness is adjustable |
| Display | LCD, 2 rows, 20 characters, blue backlight |
| Material | Shell: aluminium alloy; Joystick: aluminium alloy+ABS |
| Dimensions | 355(L) X 150(W) X155(H)mm |
| Weight | 1.47kg (w/o Power supply) |
| 1.89 kg (with Power supply) | |
| 2.4kg (prepared for shipping) | |
| Operating Environment | -10C - 70C/ 0 - 90% (no condensation) |
| Power Supply | DC12V/1A |
| Power consumption | 2.7 W (not loaded line) |
| Interfaces | 1×RJ-45, 1×RS485,1×RS232,1×USB-D |
| Others Function | Support multiple brand camera agreement |
| Baud rate: 1200, 2400, 4800, 2400, 4800kbps | |
| Support auxiliary control functions: lights, windshield wipers | |
| Support 255 DVR/DVR control | |
| Support the camera image parameter Settings in detail(PelcoD-Usb protocol only) | |
| Support USB joystick (game controller) control function, support for Microsoft DirectX |
