Universal Brushless Gavr8A

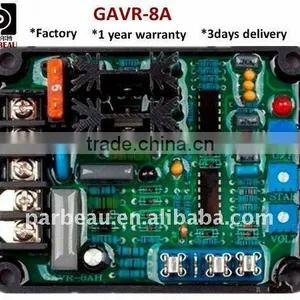

Universal Brushless Gavr8A thumbnail-1
Universal Brushless Gavr8A photo-1
US$ 17 - 20 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Parbeau
Model Number:
GAVR8A
Contact Supplier Request Quote Chat Now
Fuan Parbeau Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou/Shenzhen/Xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Parbeau
Model Number GAVR8A

Specifications

Universal brushless Gavr8A
1.for <50kw generator
2.Factory sales
3.OEM Service is available
4.3days delivery

Universal Brsuhless Gavr8a



Universal 8Amp 1/2 Wave Self Excited Dip-Switch Progmmable avr







Features



  • Voltage Regulation < ±1%
  • 220/440VAC Programmable Input
  • Rugged Compact Desigh
  • Soft Start Voltage Ramping
  • With Under Frequency Roll Off Protection
  • EMI Suppression
  • Built-in High Capacity 8Amp Fuse



Sensing input Voltage  110/220/400VAC , 1 phase 2 wire
Power Input voltage 100-260VAC , 1 phase 2 wire
Output voltage max 90 VDC at 240VAC input
Current Continuous 3 A , intermittent 5A for 10secs
Resistance Min.15 ohm , Max 100ohm
Voltage Build-up residual voltage at avr terminal >5VAC
Voltage Regulation <±1% with 4% engine governing
Operating Temperature (-40°C to +60°C
Storage Temperatue (-65°C to +85°C
External Volts Adjutment ±7% with 1k ohm 1 watt trimmer
EMI Suppression Internal electromagnetic interference filtering
Unit Power Dissipation Max.8 watt
Under Frequency Protection 60Hz system presets knee point at 55Hz
  50Hz system presets knee point at 45Hz
Dimensions 107mmL*82mmW*50mmH

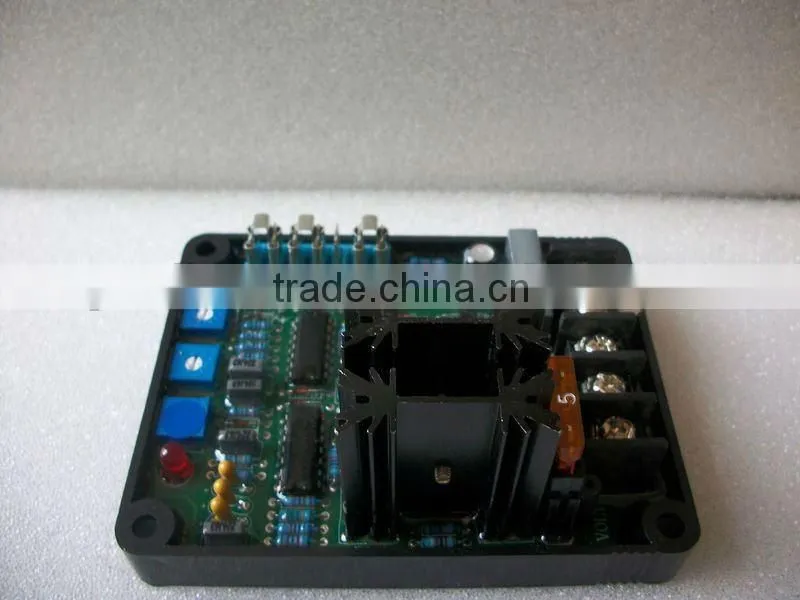

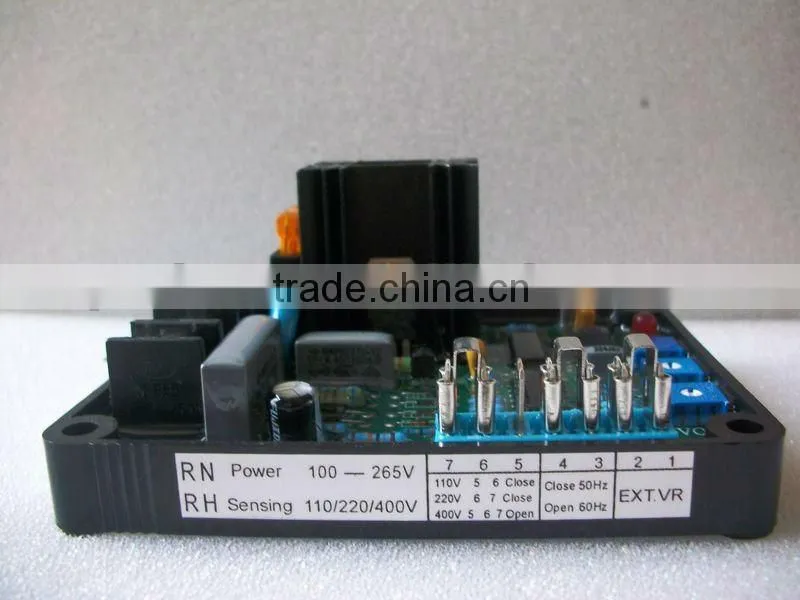

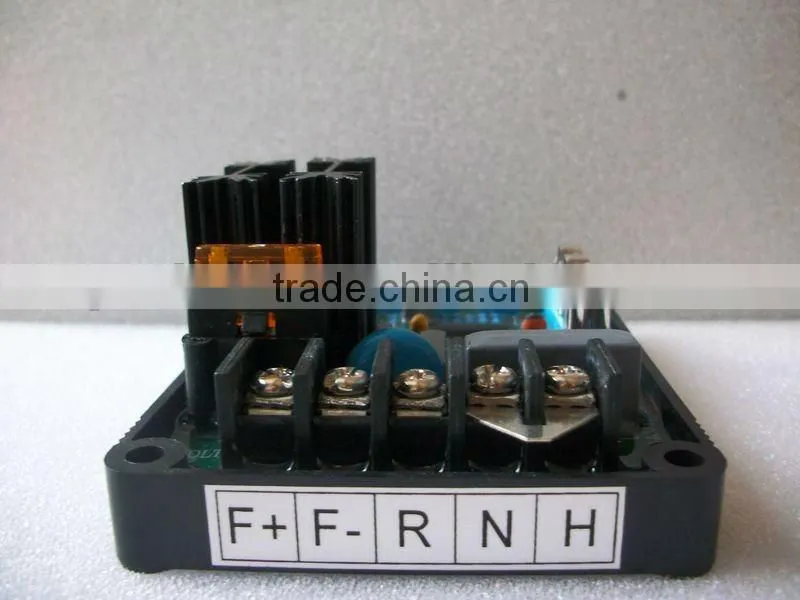

 Products Pictures:



Universal brushless Gavr8AUniversal brushless Gavr8AUniversal brushless Gavr8A
