Automatic Curing Press

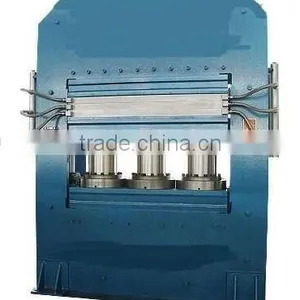

Automatic Curing Press thumbnail-1

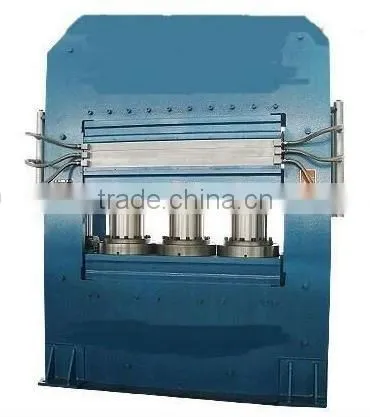

Automatic Curing Press photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Eenor
Contact Supplier Request Quote Chat Now
Qingdao Eenor Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Eenor

Specifications

1.curing press has four column,frame type,jaw type and lateral wall.
2.total pressure:25T-8000Tons.
3.warranty:1 year.

Good quality with reasonable price. Easy operation with convenient maintenance. Low labor

intensity and low energy consumption.





Automatic curing press



Type

XLB-DQ1200×1200×2

XLB-DQ1300×2000×1

XLB-Q1200×2500×1

XLB-Q1500×2000×1

XLB-Q2000×3000×1

XLB-Q1400×5700×1

Total pressure(MN)

315t

560t

750t

1000t

1800t

2800t

Plate size(mm)

1200×1200

1300×2000

1200×2500

1500×2500

2000×3000

1400×5700

Daylight(mm)

200

400

400

400

400

400

Layer

2

1

1

1

1

1

Piston stroke(mm)

400

400

400

400

400

400

Plate unit area pressure (kg/ cm2)

22

21.5

25

33.5

30

35

Main motor power(KW)

3

8

9.5

11

26

43.5

Overall dimension (L×W×H)(mm)

1685×1320×2450

2000×1860×2500

2560×1700×2780

2810×1550×3325

2900×3200×2860

2400×5800×3600

Weight (kg)

9500

17000

20000

24000

66000

110000



1.This vulcanizing machine is used for all kinds of vulcanizing mould, rubber and plastic mould products, and non-mould products.
Being a frame structure and downward pressing type, the heating plate opens by the self-weight of the heating plate, platform and plunger. The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure.
2.This engine base is combined together with the cylinder and base frame, which is made of ductile iron to increase the cylinder intensity and a brad ability. The cylinder is fitted with the sealing washer made of the oil-resisting rubber for the sealing purpose.
By moving the operational handle of the control valve to the two different positions, the heating plate can open and close.
It uses the electric pipe for heating, thus makes the workshop clean with easy and reliable operation.

Besides,we can device and manufacture all kinds frame structure press according to customers’ requirement.
