Home > Industrial Equipment & Components > Boiler & Furnace > Boiler > Factory Price Low Pressure Coal Steam Boiler

Factory Price Low Pressure Coal Steam Boiler

Name: Factory Price Low Pressure Coal Steam Boiler
Brand: TONGHAI
SKU: 103961749

Factory Price Low Pressure Coal Steam Boiler thumbnail-1

Factory Price Low Pressure Coal Steam Boiler thumbnail-2

Factory Price Low Pressure Coal Steam Boiler thumbnail-3

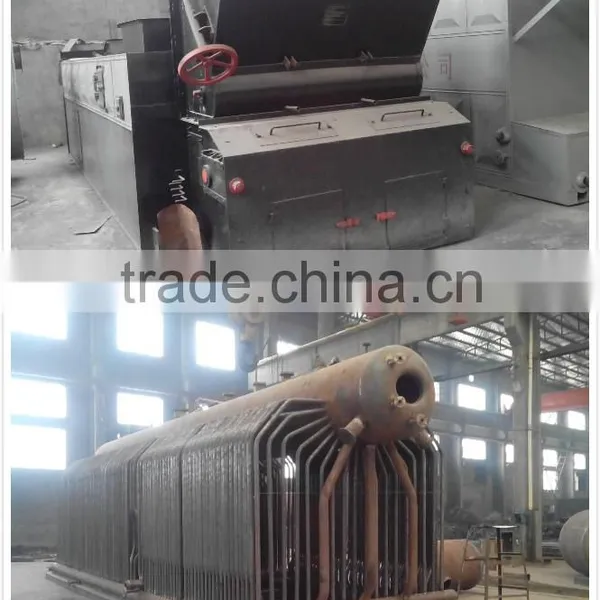

Factory Price Low Pressure Coal Steam Boiler photo-1

Factory Price Low Pressure Coal Steam Boiler photo-2

Factory Price Low Pressure Coal Steam Boiler photo-3

US$ 3000.00 - 3000.00 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Natural Circulation

Usage:

Industrial

Contact Supplier Request Quote Chat Now

Qingdao Tonghai Industrial Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO TIANJIN SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Natural Circulation

Usage Industrial

Structure Fire Tube

Pressure Low Pressure

Style Horizontal

Fuel Coal-fired

Place of Origin Shandong, China

Brand Name TONGHAI

Model Number DZL

Output Steam

Dimension(L*W*H) Customization

Weight Customization

Certification ISO,ASME,CE,SGS

After-sales Service Provided Engineers available to service machinery overseas

Company Information

Tong Hai Power the pioneer industrial boilers of China market, and we have various boilers for worldwide customers.

Product Description

1,The DZL series quickly installed steam boiler is the most advanced water-fire tube boiler in Chinese market, with high efficiency, small in size and long working life for 20 years.

2,The boiler after improvement takes use of structure of wing type smoke duct, one-way screwed smoke tube, arched tube plate, smoke and gas separation room and several other advanced technolog, which has increased the water circulation speed and safety factor.

3,This boiler series is well designed, compact structure, quickly installed, monolayer arrangement, so that the civil engineering and investment could be saved. These improvement ha extend boiler's working life and make it the national energy saving product.

Techincal specification:

Model/Parameter/Item			DZL 2-0.7-AII	DZL 2-1.25-AII	DZL 4-1.25-AII	DZL 4-1.6-AII	DZL 6-1.25-AII
Rated capacity		t/h	2	2	4	4	6
Operation pressure		Mpa	0.7	1.25	1.25	1.6	1.25
Steam temperature		C	169.6	194	194	203	194
Water-inlet temperature		C	20	20	20	60	20
Heating efficiency		%	77.4	77.4	81	81	77.4
Area of stoker		m2	3.04	3.2	5.4	5.4	7.48
Steam valve diameter		mm	PN1.6 DN80	PN1.6 DN80	PN1.6 DN100	PN2.5 DN100	PN1.6 DN125
Water inflow valve diameter		mm	PN1.6 DN40	PN1.6 DN40	PN1.6 DN50	PN2.5 DN50	PN1.6 DN50
Fuel	Coal available		II type bitumite,lcv:17700-21000KJ/kg
Fuel	Consumption	kg/h	290	290	580	580	960
Dimension of biggest parts for shipment (LxWxH)		m	5.822.13.22	5.822.13.22	6.52.663.52	6.52.663.52	7.133.65
Weight of biggest parts for shipment		t	18	19	27	29	32
Overall dimension of Assembled boiler (LxWxH)		m	6.54.03.7	6.54.03.7	7.24.54.0	7.24.54.0	7.94.54.1
Water supply	Model		11/2GC-5*4	1 1/2GC-5*4	11/2GC-5*7	1 1/2GC-5*7	2GC-5*6
Water supply	Motor power	kw	3	7.5	7.5	11	15

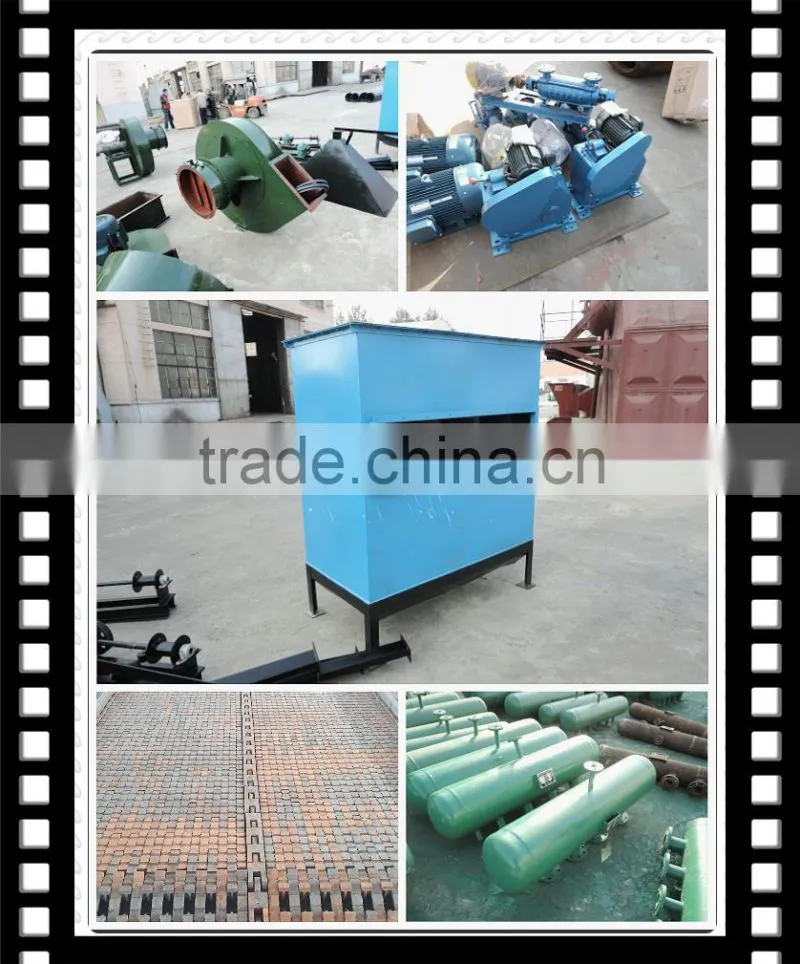

Auxiliaries boiler:

chain grate:

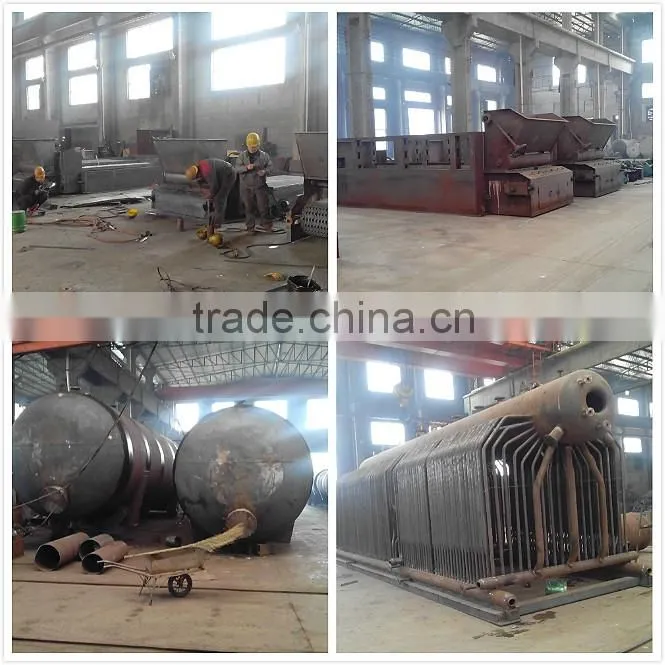

working shop:

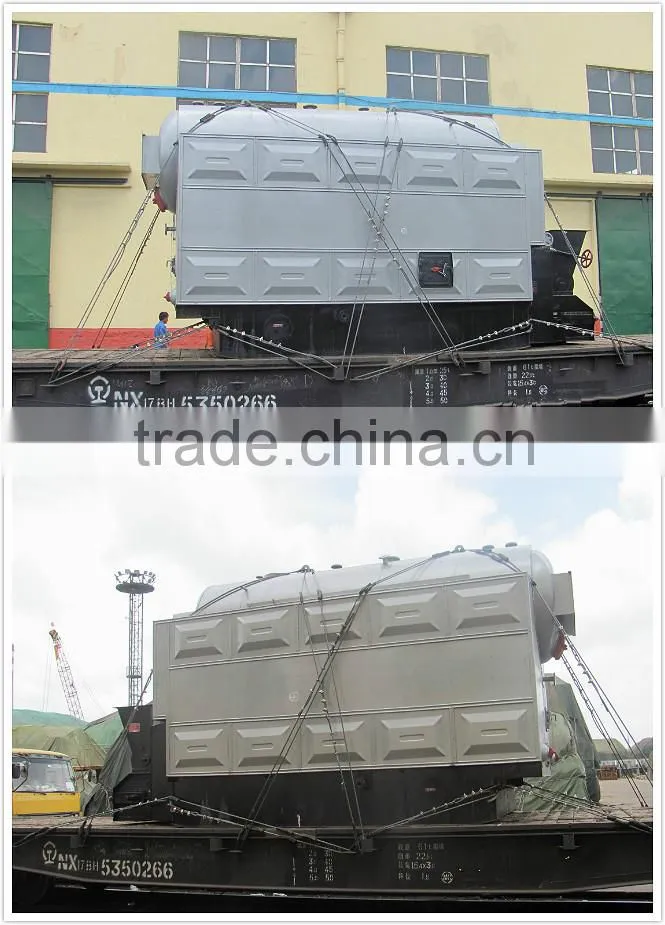

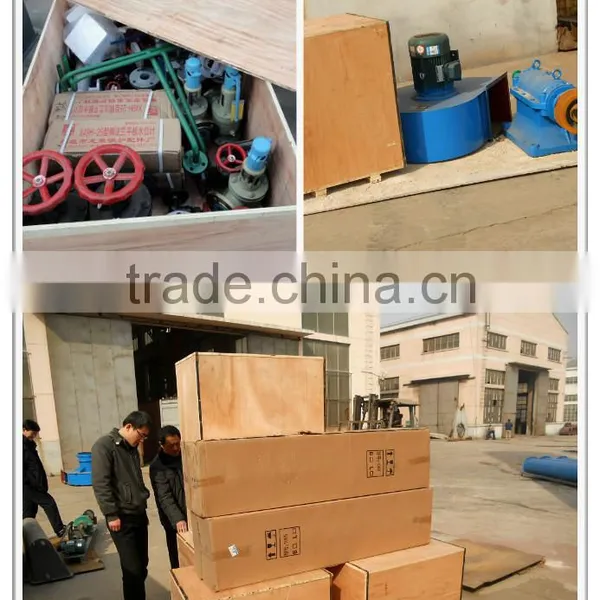

Packaging & Shipping

Our Services

------We can help design and manufacture boilers according to customers’ special requirements.

------Engineers are available service overseas

------boiler body warranty 2 years

------Engineers 24hours online

FAQ

How to install a boiler?

Tonghai Boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance.

How many years is the boiler’s life?

The boiler is designed for 20years life.

How to choose a boiler model?

Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, Tonghai Boiler will suggest a suitable model based on your usage

How is the warranty term?

If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.
