1.The boiler adopt double drum, monolayer arrangement, compact structure, sufficient output, safe and reliable operation, short construction period, and low installation cost ect.
2.The design of cyclone reburning chamber in furnace resulted in the decrease of dust contained in the flue gas. At the same time, incandescent carbon black particles shall burn further, enhancing the boiler thermal efficiency, and decreasing gas blackness, as a result, the gas emission concentration shall meet the requirements of grade A environmental protection area.
3.The grate employ the technology patent of small roller structure, boundary grate and so on, improving the operation reliability of the boiler.
4.Since the adoption of technology patent for the sealed wind chamber and bilateral grate air register, and the application of machining cone seal structure to grate adjusting air equipment, the sensitivity of the grate shall be improved.
5.According to the customers' requirements, other energy saving equipment, shall be matched.
Technical specification:
|
Item Parameter Model |
SZL6-1.25-AII |
SZL8-1.25-AII |
SZL10-1.25-AII |
SZL10-1.6-AII |
SZL15-1.25-AII |
SZL20-1.25-AII |
||
Rated evaporation capacity |
t/h |
6 |
8 |
10 |
10 |
15 |
20 |
|
Operation pressure |
Mpa |
1.25 |
1.25 |
1.25 |
1.6 |
1.25 |
1.25 |
|
Steam temperature |
℃ |
194 |
194 |
194 |
203 |
194 |
194 |
|
Water-inlet temperature |
℃ |
20 |
20 |
105 |
105 |
105 |
105 |
|
Boiler heating efficiency |
% |
80.6 |
81.86 |
81.17 |
82 |
82.34 |
82.95 |
|
Area of boiler heating surface |
m2 |
137.6 |
175 |
210 |
210 |
435 |
578 |
|
Area of stoker |
m2 |
7.23 |
8.6 |
11.72 |
11.72 |
16.4 |
18.87 |
|
Fuel |
Coal available |
II type bitumite,low heat capability:17700-21000KJ/kg |
||||||
Consumption |
kg/h |
900 |
1280 |
1450 |
1450 |
2340 |
3180 |
|

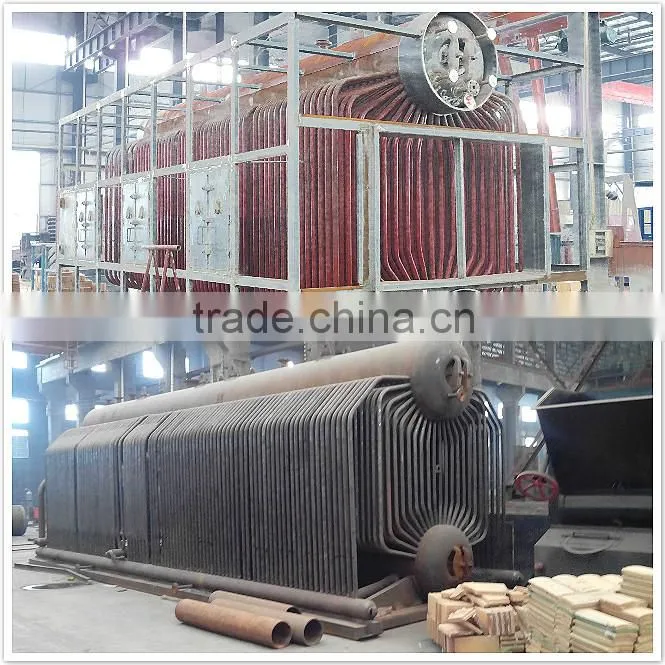

boiler body:
chian grtae:
------We can help design and manufacture boilers according to customers’ special requirements.
------Engineers are available service overseas
------boiler body warranty 2 years
------Engineers 24hours online
How to install a boiler?
Tonghai Boiler provides completed installation drawing and manual, or send engineer abroad for installation guidance.
How many years is the boiler’s life?
The boiler is designed for 20years life.
How to choose a boiler model?
Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, Tonghai Boiler will suggest a suitable model based on your usage
How is the warranty term?
If any problems caused for quality during the warranty period, the Seller will repair or replace the broken parts for free, if the problem caused from the client’s side, the Seller will help supply the spare part at lowest cost.
