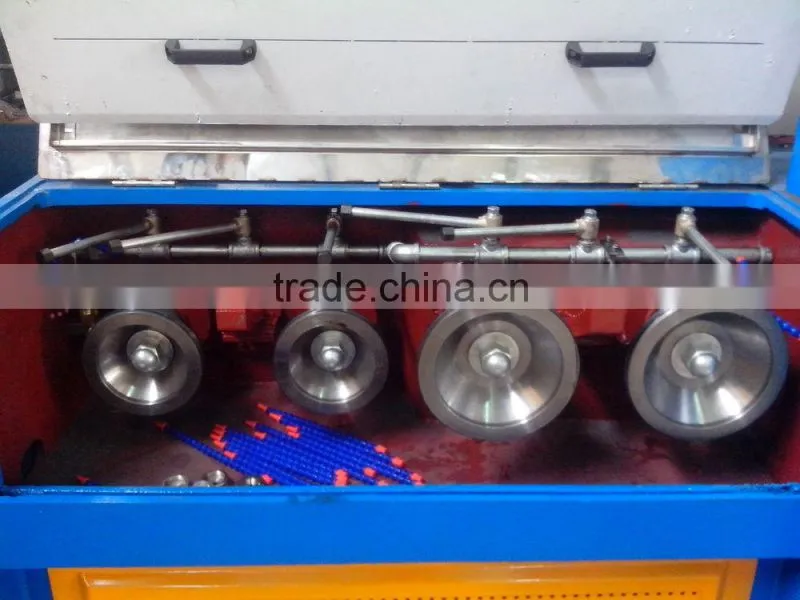

Fine Wire Drawing Machine/cable Machine-equipment for Cable-horizontal Type
US$ 1,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HXE
Model Number:
24DW
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fine Copper Wire Drawing Machine/copper Cable MachineUS$ 1 - 7,000MOQ: 1 Set -
Fine Wire Drawing Machine -horizontal Type /cable Making MachineUS$ 1 - 7,000MOQ: 1 Set
-
Supper Fine Wire Drawing MachineUS$ 10,000 - 10,000MOQ: 1 Set
-
Fine House Wire Drawing MachineUS$ 1 - 2MOQ: 1 Set
-
HXE-22DS Copper Aluminium Wire Drawing MachineUS$ 1 - 2MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
HXE
Model Number
24DW
Usage
Drawing
copper wire drawing machie for single small diameter/ fine wire drawing machine/cable machine
Specification
Inlet size:0.6mm-1.2mm
Outlet size:0.1mm-0.32mm
Speed:2500m/min
Advantages:
1.High quality
2.High productivity
3.Easy operation
Main technical parameter
Input diameter |
1.2mm -2.5mm |
output diameter |
0.1mm-0.4mm |
Speed |
2000m/min, say 0.25mm, 15kg/hour; 0.35mm, 28kg/hour |
Dies number |
24 |
Outer diameter of the dies |
25mm*8mm thickness |
Slip ratio of m/c |
From No.1 to No.23 ---- 13%, No.24 ----8% |
Main motor |
15KW 3 phase motor+ 15KW inverter |
Spool motor |
3.7KW +3.7 KW inverter |
Loading of capacity |
40-60kg |
Bobbin size |
300mm |
Machine dimension |
2300*1250*1800mm(L*W*H) |
