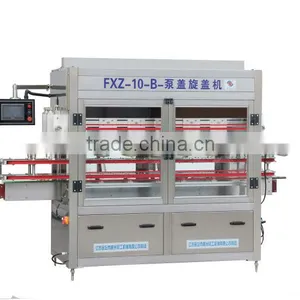

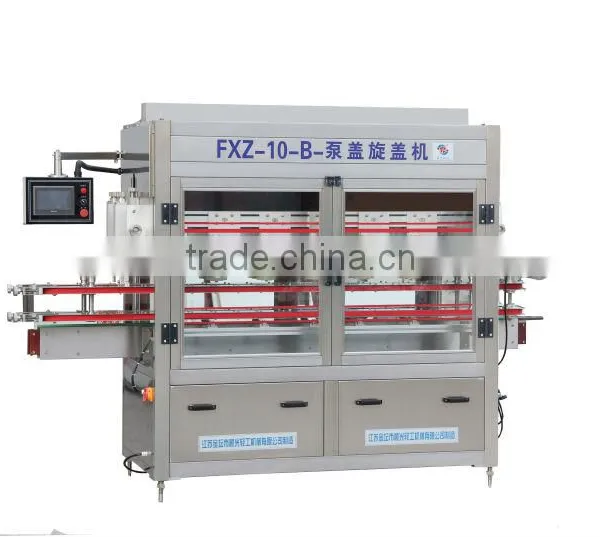

Help CenterDetergent, Shampoo, Body Lotion Pump Cap Spin/ Screw Capping Machine
Related Products
-
FXZ-10B With Pump Capping MachineUS$ 1 - 29,900MOQ: 1 Set -
Automatic Shampoo Lid Screw Capping MachineUS$ 8,000 - 11,000MOQ: 1 Set
-
Lube/ Oil/ DetergentBarrel Automatic Screw Capping Machine FXZ-1W Single-headNegotiableMOQ: 1 Set
-
FXZ-1C Round/ Square/ Flat Bottle Automatic Screw Capping MachineUS$ 1 - 20,000MOQ: 1 Set
-
Automatic Plastic Lid Bottle Capping MachineUS$ 1 - 20,000MOQ: 1 Set
Main performance & Characteristics:
1. Under PLC control system, operation easily done by the color touch screen.
2. It is suitable for various shape of containers, such as Round bottle (barrel), Flat bottle (barrel), Square bottle (barrel), Special shape bottle (barrel). Not only tighten the normal screw cap, but it also have advantage to screw the pump cap.
3. An extra non-foil rejecting device can be selected to reject the caps without the aluminum foil, therefore guarantee the 100% foil inside the cap.
4. Stainless steel S316 & S304 are used to make sure excellent durability and sanitation compliance, can keep long time working service. Machine desgin comply with GMP standards and safety requirements.
Technical Parameters:
Application |
: Round bottle, Flat bottle, Square bottle, Special shape bottle |
Capping Wheel |
: 10 heads (Capping wheel can be made to order) |
Suitable cap diameter |
: Φ 20 ~ Φ 80mm |
Capping speed |
: ≤5,000bottles/ hour |
Capping accuracy |
: 99.99% |
Working Voltage |
: 380V AC three-phase and four-wire |
Power |
: 4 KW |
Air Pressure |
: 0.5 ~ 0.7Mpa |
Material |
: Stainless Steel 316 & 304 (upon request) |
Dimension |
: (L) 2916mm x (W) 900mm x (H) 1964mm |
Weight |
: 500 Kg |
Country Origin |
: China |
Electical Allocation:
- PLC: Mitsubishi/ Japan
- Touch Screen: TouchWin/ Canada
- Valve: AIRTAC/ Taiwan
- Cylinder: SMC/ Japan
- Air source treatment: AIRTAC/ Taiwan
- Sensor: OMRON/ Japan
- Frequency converter: Schneider/ Franch
- Technicial guidance;
- Pre-maintance;
- Quality guarantee for 1 year. Able to send engineer to dubug/ maintance. (Hotel & delivery fee paid by customer);
- You are welcome to share us the sample to test machine;
- Outside: Standard Export Wooden Case Pack
- Inner: Stretch Film
