Product Description
Main characteristic:
Optional device:
Diving function + Self clean function + Heating & Agitating.

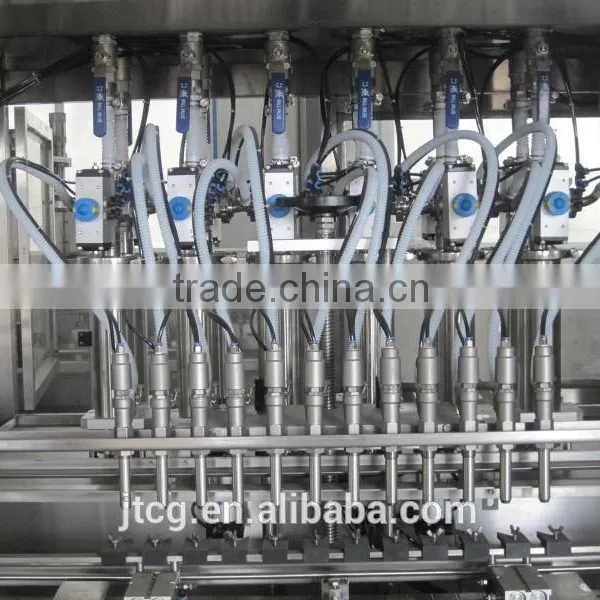

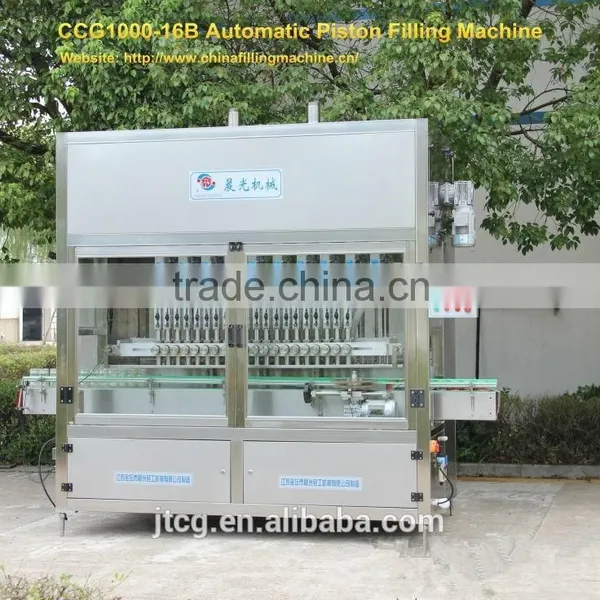

This piston filler is mainly used for viscosity liquid and variety of shape containers in chemical, food, pharmaceutical, oil and other industries. It is composed of piston filler& inside hopper, can be connected with capping, labeling, batch coding and in-line working table to perform a complete production line.

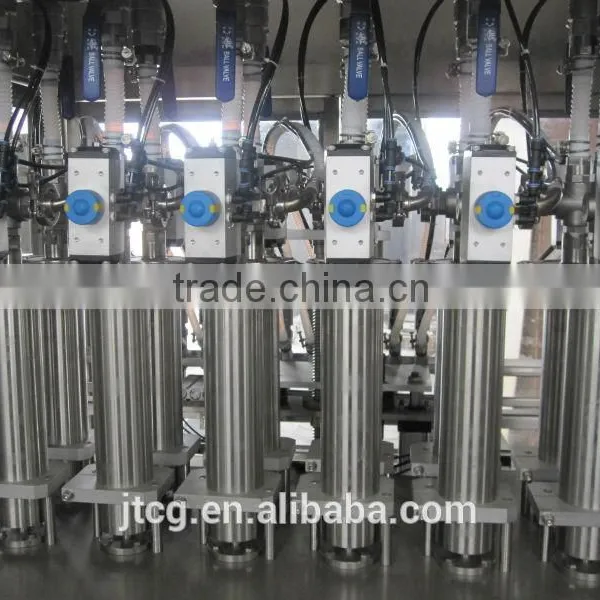

1. Servo ball-screw system applied to drive the piston cylinder, which can fill high viscosity material, such as Oil, Sauce, Honey, Lubricant oil, body lotion, shampoo, etc;
2. According to production, optional to equip Heating & Agitating device inside the hopper to melt & stir evenly the different materials. The max heating temperature is 40 °C. Meanwhile, if filling material is a foamy liquid or the container opening is very small, diving function could be added to aovid overflowing.
3. Machine self-clean function is optional. Use the pneumatic diaphragm pumps draw the clean solvent into filling hopper, by cycle filling to make machine clean.
4. The PLC programmable system and color touch screen to form the control center, automatically adjust filling speed.

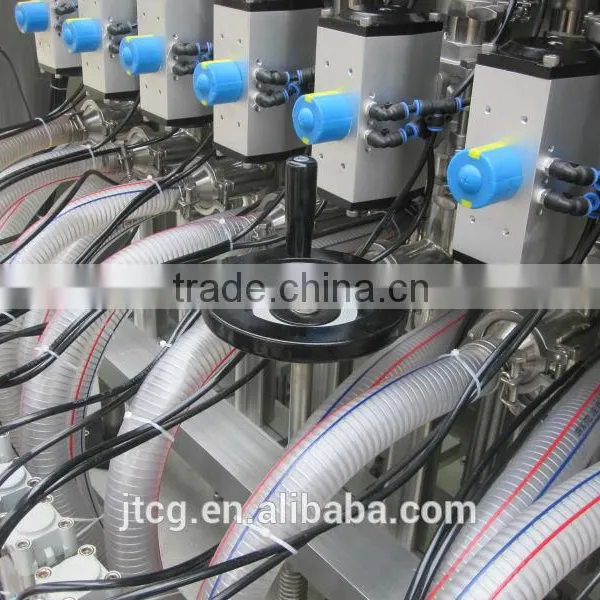

5. Stainless steel, non-poisonous & anti-corrosive PTEF hose are applicated for excellent durability and sanitation compliance. Its frame is made of 304 stainless steel and the 316 quality stainless steel used for parts exposed to filling material. The whole machine is designed according to GMP standards.
Technical Parameters:
Machine Code |
40 ml ~ 500ml |
|||||
CCG500-4B |
CCG500-6B |
CCG500-8B |
CCG500-12B |
CCG500-16B |
CCG500-20B |
|
100 ml ~ 1000ml | ||||||
CCG1000-4B |
CCG1000-6B |
CCG1000-8B |
CCG1000-12B |
CCG1000-16B |
CCG1000-20B |
|
200 ml ~ 2000ml | ||||||
CCG2000-4B |
CCG2000-6B |
CCG2000-8B |
CCG2000-12B |
CCG2000-16B |
CCG2000-20B |
|
300 ml ~ 3000ml | ||||||
CCG3000-4B |
CCG3000-6B |
CCG3000-8B |
CCG3000-12B |
CCG3000-16B |
CCG3000-20B |
|
500 ml ~ 5000ml | ||||||
CCG5000-4B |
CCG5000-6B |
CCG5000-8B |
CCG5000-12B |
CCG5000-16B |
CCG5000-20B |
|
Remarks |
- Mmachine code, number behind “CCG” means size of cylinder, number behind “-” means filling nozzle number. - Cylinder size and filling nozzles number can be custom-made. |
|||||
Filling Nozzles |
4 heads |
6 heads |
8 heads |
12 heads |
16 heads |
20 heads |
|
Filling Speed (Tests by 250ml water) |
≤ 1500 BPH |
≤ 2000 BPH |
≤ 3200 BPH |
≤ 4500 BPH |
≤ 6000 BPH |
≤ 7500 BPH |
Filling Volume |
: 50ml ~ 5000ml |
|||||
Voltage |
: 3 phase 4 wire, 220V/380V |
|||||
Air Pressure |
: 0.1010-0.610Mpa |
|||||
Air Consumption |
: 0.6 ~ 0.9 m3/min |
|||||
Material |
: Stainless Steel 316 & 304 (upon request) |
|||||
Precision |
: ≤±1% |
|||||

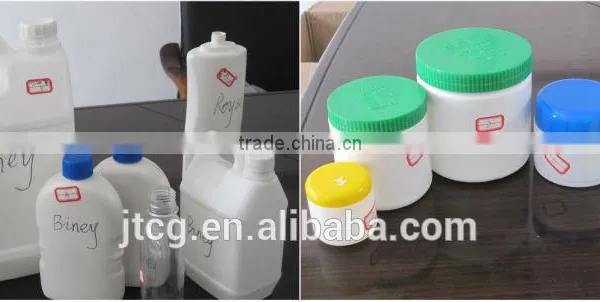

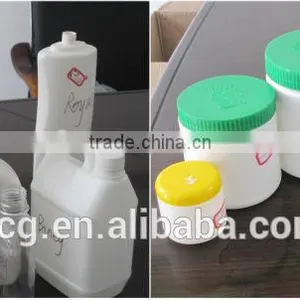

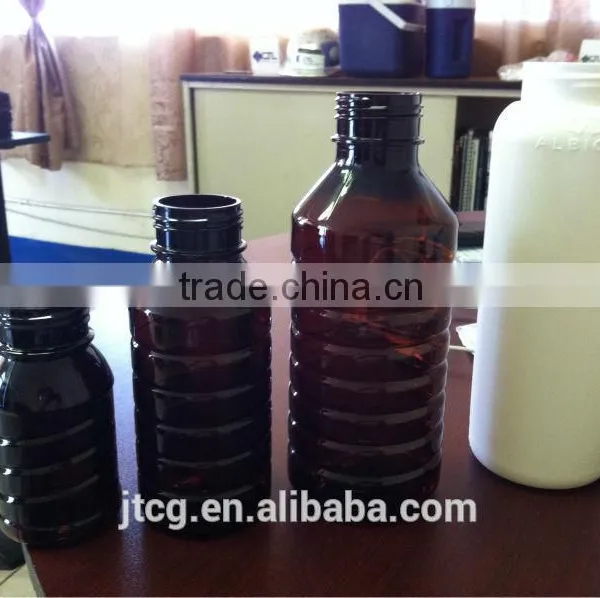

Application:
Stretch Film & Standard Export Wooden Case Pack
- Technical guidance& Pre-maintain;
- 1 year quality warranty and supply more set wearing parts;
- Able to send engineer to maintain. (Hotel & delivery fee paid by customer);
- 24 hours/ 365 days online technical service;
- Welcome to send samples for testing.
