Specifications
Gas Filter SeparatorSize:4''-52'',class 150-2500
Certificate:CS,CE, ISO9001,ASME
Business type:Manufacturer
1,YNTSH-LCN-2 series gas-liquid coalescer filters
Description >>
INOCO LCN-2 gas-liquid coalescing filter effects:liquid content can be reduced to0.003 ppmw, for the removal of solid particles with accuracy 0.3um up to 99.99%
In gas processing, oil refining and chemical processing and other processes,cleaning and excluding fluid mist gas is crucial for equipment reliability and economical efficiency, coalescer filter elements with INOCO patent, a multilayer combination of separation material and the hydrophobic and oleophobic treatment,have max effciency to remove liquid and solid contaminants at a lower pressure and would reduce maintenance and operating costs caused by gas contamination.
2,YNTSH-LCN-1 series dry gas filters
Description >>
INOCO LCN-1 series of dry air filter is to remove dust particles from the gas high efficiency filtration products. It is used to remove dust, solid particles and rust inthe gas. High performance filters pay a crucial role on the protection of precision equipment in gas processing and transportation systems downstream.
Filter uses advanced and reliable elements, in order to ensure performance of the device. A wide selection of filter material, such as ultrafine glass fiber, polyester, multilayer fiberglass, polypropylene, nylon and so on. according to different requirements Select the type of cartridge
Technical parameters>>
Manufactured standard: GB150 or ASME
Vessel material: CS ,stainless steel
Filter accuracy: 0.1μm ,1μm,2μm,3μm,5μm, 10μm
Filtration efficiency: 99.98%
Installation: Vertical or Horizontal

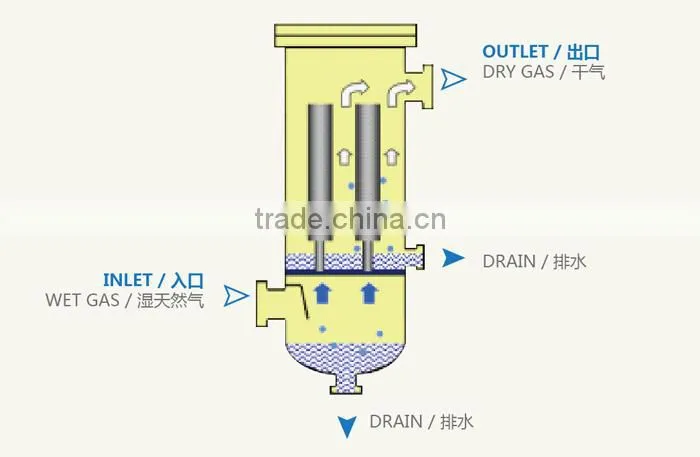

How it works>>
After the containing impurities gas into the filter, large particles collide with deflector inside the filter then start separating from the natural gas. fine solid particles will be removed when the gas flow from the outside through filter element. Finally, the purified gas exiting from the filter.
One end of the device using the quick opening blind or blind flanges, open and close when to replace the filter. Using quick blind can turn on or off real fast, just need one minute so saving time and avoiding some security risk when replace the filter elements

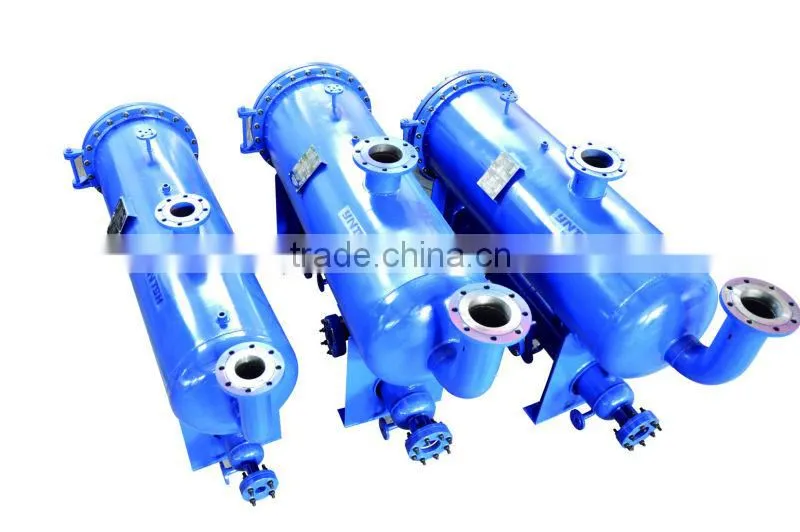

3,YNTSH-SN-500 series wire mesh separator
Description >>
INOCO 500 Series filter separator is mainly used in the need for efficient removal of solid and liquid particles , regardless of the particle size these also can be applied. Filter separator is particularly suitable for removing dust and smoke which is extremely small. Its wide range of applications, including eliminating lubricants from processing air, removing impurity from upstream gas pipelines in regulator stations and compressor stations and removing ethanol from the gas after dehydration and etc. Series 500 Separating filter is combined by YNT mesh demister and YNT coalescence elements. the droplets more than 3-5μm can be 100% separated; between 0.5 ~ 3μm droplets can be 99%separated , and the solid particles 0.5μm are 99% filtered.
Technical parameters>>
1 Work pressure: 0.1~40.0Mpa
2 Work temp: -40~+300℃
3 Separate accuracy: 0.3,1,3,5μm
4 Separate efficiency: 99.98%
5 Max flowrate: 6500000Nm3/h
4,YNTSH-SN-700 series vane separator
INOCO 700 series separating filter is combined by YNT vane separated and YNT coalescence elements ,the droplets more than 5-8 um can be 100% separated ad the solid particles 0.5 um are 99% filtered.

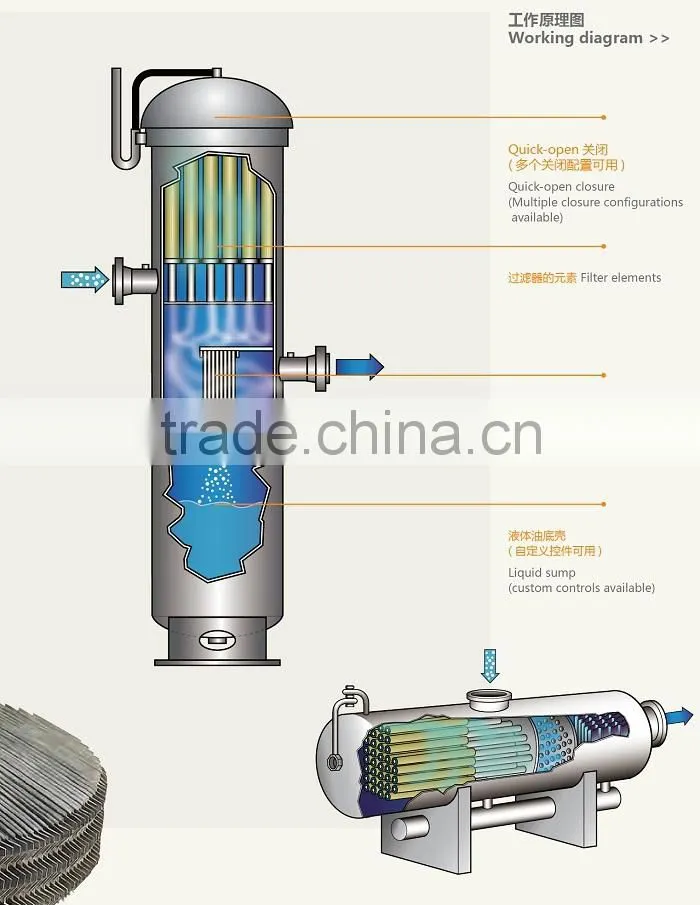

How it works>>
The wire mesh filter separator working process has three stages:
Step 1: Gravity separating Gas flows into the filter body from inlet pipe. With the strong impact towards the shell surface or cartridge frame, impurity substances in big size will be separated;
Step 2: Screening holes separating Rechargeable filtering devices are equipped at the head side of the separator. The type and accuracy level can be chosen with different working requirements. Solid impurity substances in minimal size will be gathered into mist style stuff and removed.
Step 3: Leaf separating
With a mesh demistre, the liquid drop will be collected and stored in the catch basin in the bottom of the filter separator.
5,YNTSH-SN-900 series vane separator
Description >>

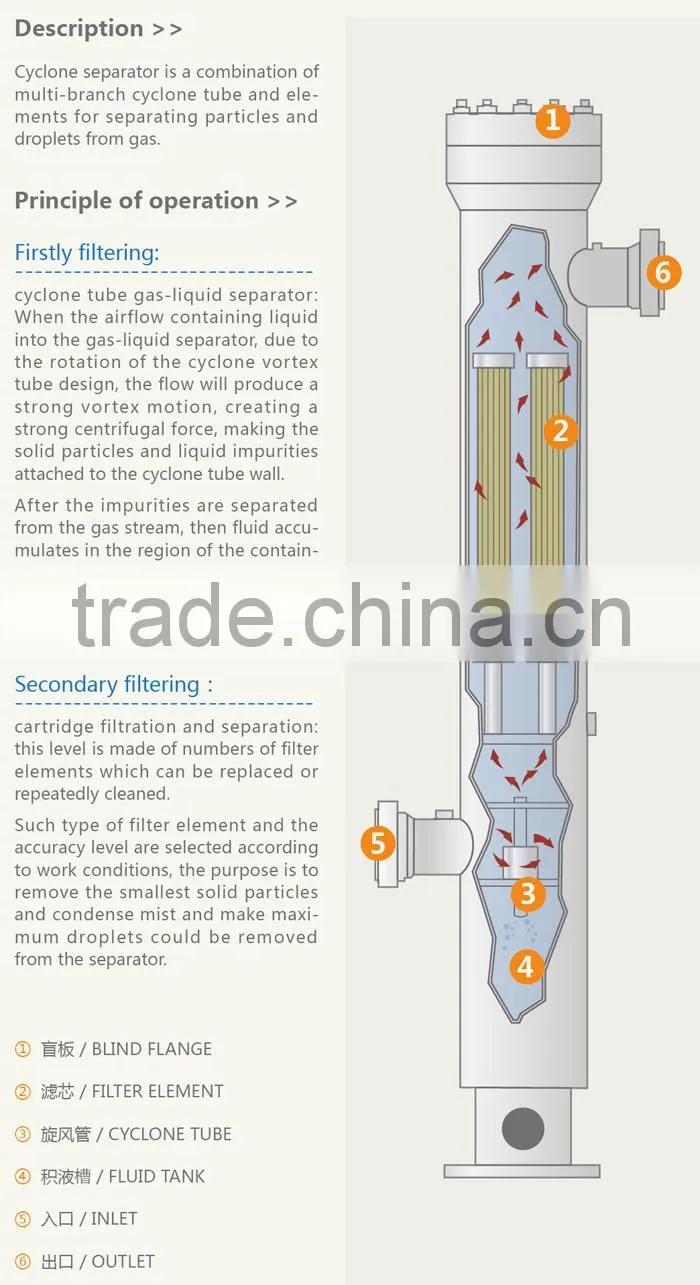

INOCO 900 series cyclone separator is a combination of multi-branch cyclone tube and cartridges for separating particles and droplets from gas.
How it works>>
6,YNTSH-SGA-A series Compressed air filters
Products features >>
1.Extension current route to slow pressure drop
2.High grade aluminium-silicon and carbon steel cartridge
3.Painted surface with epoxy resin for wear resistance and corrosion resistance
4.Screw threads structure at inlet and outlet for easy installation with air flow indication on the cartridges
5.Compact design for flexible trouble shooting
6.Exact pressure indicator to secure element replacement
7.Level indicator to monitor critical level for downstream pollution prevention
8.Reliable automatic drain
7,YNTSH-SGA-D series High pressur gas filters
Products features >>
The working pressure range of INOCO SGA-D series high pressure filter is 25-400 bar,and it is the most security and reliability record range,compared with other products in filter industry ,D series high pressure filter provides considerable technical and economic advantage for high pressure operation system.
Material:
Top shell : carbon steel,stainless steel
Bottom shell:carbon steel ,stainless steel
Sealing:Fluorine rubber
Connection:Flange,thread, butt welding
Filter elements: Polyester filter element; glass fiber filter element, washable stainless steel filter element
Filtration precision:0.003 micron to 10 micron

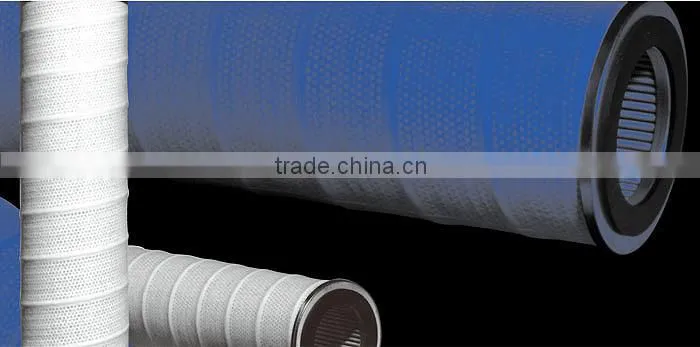

8,Gas filter separator elements:
Products features >>
Gas-solid separation elements, is core component of dry air filter and used to remove particulate impurities from natural gas, liquefied petroleum gas, hydrogen, natural gas and petrochemical plants dry gas and etc. PF series filter elements is using multi folding techniques, compared to ordinary cylindrical cartridge, the filter area is four times or more
Performance parameters>>
Initial pressure drop: ≤ 0.012MPa
Filter structural strength: more than 1MPa
Design temperature range: ≤150 ℃
Filtration precision: 0.3,0.5,1,3,5,10 μm
9,Gas filter separator Mesh demister
Description >>
Wire mesh demister, also known as wire mesh mist eliminator, screen capture demister, demister. Primarily used for the separation of diameter greater than 3μm ~ 5μm droplets. When the gas mist with a certain speed to rise through the filter mesh of the intermediate grid, the inertia of the rising mist, make the filaments collide with the mist and adhere to the surface of the filaments. Mist further spread on the surface of the filament, as for itself gravity, the mist is formed larger droplets and flow along its filament interleaving.Along with wettability of the filaments, capillary action and surface tension of the liquid filaments the droplets increases, until the force of its own weight exceeds the buoyancy of the rising gas and liquid surface tension, the drop was separated.
10, Inoco company capacity
Inoco provide a wide range of filter and filter system for oil production, processing; mining processing, liquefaction, transportation in natural gas industry around the world,used to remove pollutants in liquid or gas. With 18000 companies service experience in worldwide, leading filter laboratory, strong manufacturing capacity, we can provide you with excellent reliability and high performance products. Inoco all gas filtration and separation products are available with ASME "U" seal "U2", we can also accept BureauVeritas, TUV third-party certification.
11,Related products
1. GAS FILTER 2. DRY GAS FILTER 3. GAS-LIQUID COALESCER FILTERS 4. WIRE MESH SEPARATOR 5. VANE SEPARATOR 6. CYCLONE SEPARATOR 7. COKE OVEN GAS FILTER 8. GAS CARTRIDGE FILTER 9. LARGE FLOW CARTRIDGE FILTER 10. COMPRESSED AIR FILTER
11. HIGH PRESSURE FILTER
12. CARTRIDGE DUST COLLECTOR
13. AERATION CONE
14. CERAMIC MEMBRANE DUST REMOVAL FILTER
15. ULTRA PURE GAS FILTRATION SEPARATION
16. GAS MEMBRANE SEPARATION DEVICE
For more details pls contact Inoco sales team.
