Help CenterWire-mesh Separator ( InoNG-Mes )
Related Products
-
Coalescing Separator ( InoNG-Coa )US$ 5,000 - 10,000MOQ: 1 Set -
Gas Filter ( InoNG-Eco )US$ 5,000 - 10,000MOQ: 1 Set
-
Dry Gas Filter ( InoNG-Dry )US$ 5,000 - 10,000MOQ: 1 Set
-
Dust Collector Filter for Large Flow Dust CollectionUS$ 5,000 - 100,000MOQ: 1 Set
-
Fuel Gas Filter (InoGS Serials,gas Filter A516 Gr.70)US$ 2,000 - 10,000MOQ: 1 Set
Specifications
1,Optimum design2,high efficiency
3,customizable design by customer drawings or requirement
Inoco filtration equipment always pay much attention to development in high technology to maintain the world-class quality. And we are the first one operation Project Management in filtration solutions in China. All our project managers are authorized by PMI with PMP certification.
Fast reply service,We established fast reply service center ,the final aim of our company is customer satisfactions.

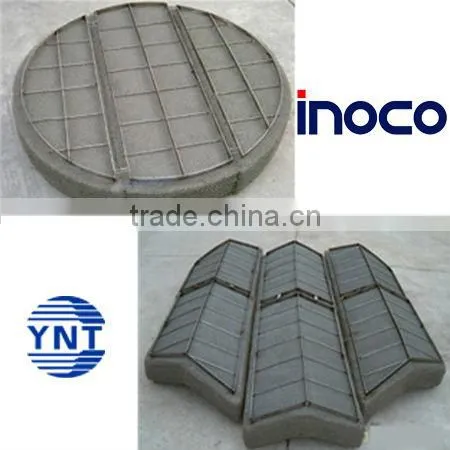

Wire-mesh separator is a compact separating layer with a certain thickness weaved by metal wire. It is horizontally mounted in container for removing liquid impurities from gas. When gas vertically flows through separating layer, liquid impurities are removed.It is recommended not to use demister to process dirty medium which may cause blocking, otherwise separating efficiency will be reduced .

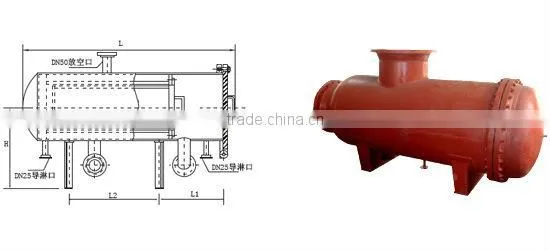

Wire-mesh separator can be vertically or horizontally fabricated .
Production standard: GB150 or ASME VIII-1
Demisting efficiency: Wire-mesh demister can remove 99~99.5% 2μm mist.
Operating principle:
When gas containing mist rises at a certain speed to pass through wire mesh, the mist collides with wire due to inertia effect of mist rising and thus adheres to wire surface.
After mist spreading, condensing and gravity settling on wire surface, bigger liquid drops formed by mist flows along wire to junction point of two wires.
Wettability of wire, surface tension of liquid and capillary action of wire make liquid drops bigger and bigger and when agglomerative drop''''s gravity exceeds the resultant force of gas rising force and surface tension of liquid, the liquid separates from wire and drops.
The separated gas basically does not contain mist.
Wire-mesh demister is widely applied in petroleum and chemical industries to remove liquid impurities such as condensate and lubricant from gas and recycle products for pollution control.
