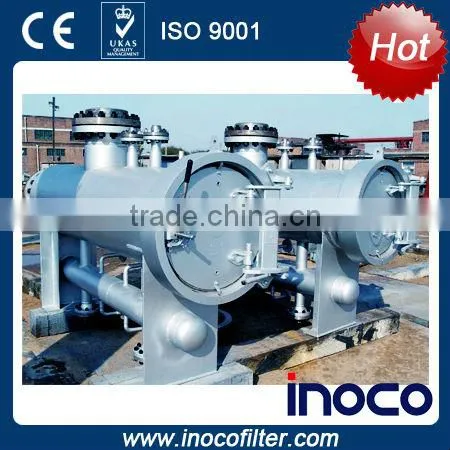

Help CenterVane Type Separator ( InoNG-Van )
Related Products
-
Wire-mesh Separator ( InoNG-Mes )US$ 5,000 - 10,000MOQ: 1 Set -
Coalescing Separator ( InoNG-Coa )US$ 5,000 - 10,000MOQ: 1 Set
-
Gas Filter ( InoNG-Eco )US$ 5,000 - 10,000MOQ: 1 Set
-
Dry Gas Filter ( InoNG-Dry )US$ 5,000 - 10,000MOQ: 1 Set
-
Dust Collector Filter for Large Flow Dust CollectionUS$ 5,000 - 100,000MOQ: 1 Set
Specifications
1,Optimum design2,high efficiency
3,customizable design by customer drawings or requirement
Inoco filtration equipment always pay much attention to development in high technology to maintain the world-class quality. And we are the first one operation Project Management in filtration solutions in China. All our project managers are authorized by PMI with PMP certification.
Fast reply service,We established fast reply service center ,the final aim of our company is customer satisfactions.

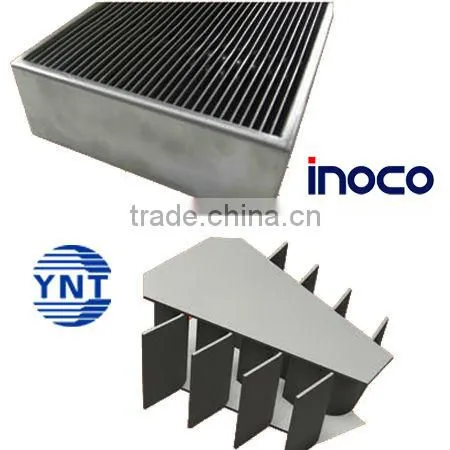

Vane type separator is used for separating liquid impurities from gas ,It comprises a group of vanes which are closely arranged together to form wave or saw-shaped gas flow path.Change of flow direction makes liquid drops contained in gas impact vanes to form bigger drops which are then discharged.
• High efficiency separation of entrained liquid from vapours.
• Vanes provide a compact solution when compared to the traditional wire mesh pad design.
• Vane-type separators will remove 100% of all liquid droplets 8 microns and larger with the outlet gas containing no more than 0.1 USG/million standard cubic feet of gas passing through the separator (13 litres/Million SCM).
• Production standard: GB150 or ASME VIII-1
•Separation of gas, liquid and entrainment for saturated steam and secondary steam to improve steamquality.
•Separation of gas and liquid after cooling tower, washing tower and saturation tower to ensure safe and reliable operation of downstream equipment;
•Separation of condensate and mist for cooled compressed gas to prevent block and damage to downstream equipment caused by condensate and mist;
•Removal of mist from recycling and purifying device to recycle valuable materials and ensure process indicators compliance;
•Separation of mist in hydrogen/nitrogen compressor to avoid catalyst damage caused by mist;
Desulfurization and separation of entrainment in coal gas desulfurizing unit.
