LD 6LTAA Engine Diesel Generator Sale

US$ 11,000 - 13,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangxi, China

Brand Name:

Model Number:

200GF

Liuzhou Long Dao Industrial And Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or Guangzhou Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangxi, China

Brand Name LD

Model Number 200GF

Output Type AC Three Phase

Speed 1500 or 1800 r/min

Frequency 50 or 60 HZ

Rated Power 200kw

Rated Voltage 230/400 V

Rated Current 360A

Specifications

1.DECE Technology & CE & ISO
2.Stamford Technology Alternator
3.Smartgen Controller 6120
4.origin engine parts

Factory HD Power Co., Ltd, has a history of 10 years, we are a professional diesel engine and generator

set manufacturer, our annual production is 20,000 sets, and got through the CE & ISO9001:2008 Quality

Certificate. Our LD engines are designed by our own R & D team with the introduced technology from

Germany, FEV and Yuchai, DECE high quality is proved in the current market.

Diesel Generator Technical Parameters

Genset Model (LD Brand)		200GF
Rated Power/Speed kw/r/min		200/1500

LD Diesel Engine	Engine Model	6LTAA8.9-G2
	Rated Power/Speed kw/r/min	220/1500
	Type	Vertical,inline,water-cooled,four stroke
	Intake Way	Turbo & Inter-cooled
	Number of cylinders×bore×stroke (mm)	6-114x145
	Total displacement(L)	8.9
	Min fuel consumption (g/kw.h)	≤195
	Starting type	Electric
	Speed governor model	Electrical
	Oil capacity(L)	20-22
	Low noise limit dB (A)	98

Wattek Alternator (Stanford Technology)	Alternator model	274K
	Rated voltage (V)	400/230
	Current( A)	360
	Freq( Hz)	50
	Regulator approach	AVR
	Power factor (CosØ)	0.8 Lagging
	Phase	3 Phase 4 Wire
	Insulation Class	F / H
	Protection Class	IP22 / IP33

Genset Packing	Net weight (kg)	2200
Genset Packing	*Genset dimension LWH (mm)*	2800x800x1400

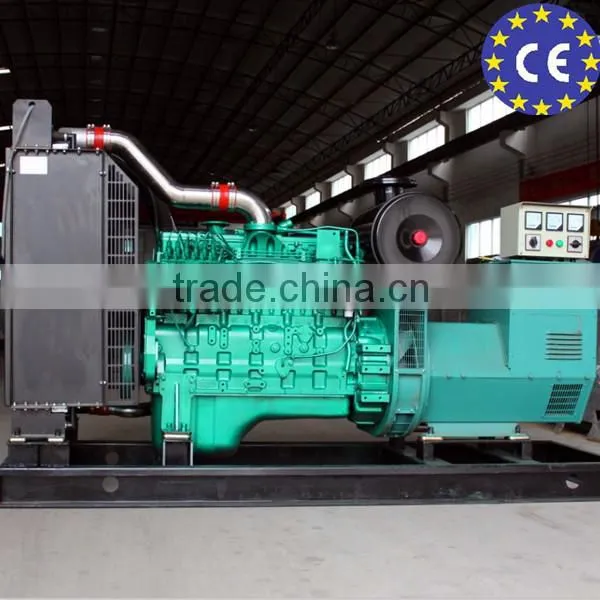

LD 6LTAA Engine, Stanford Alternator, Smartgen Controller 6120

LD 6LTAA diesel engines for generator set is produced by the latest design and technology from, DCEC,

FEV companies, as it is desinged in 6 cylinder, 4 stroke, it is most suitable to equip generator set power

from 200kw-210kw. Due to the superior engine technology we apply, the genset with 6LTAA engine

will characteristic with powerfull, stability, less fuel consumption, long operation hour and life, lower noise.

Besides, we apply Standford Technology produced alternator Watteck brand 274K model to equip with

our engine 6LTAA model. With the same look and shape iwith Origin Standford alternator.

It is the controller Smartgen 6120. Smartgen, just as all generator set manufacture know in China,

it is the best controller products which made in China; and widely use in chinese Genset manufacturer.

LD Diesel Generator Power Range for Option

Genset	400/230V 50/60HZ 3-PHASE		Model
Genset	Prime Power		ENGINE	ALTERNATOR	CONTROLLER
Type	KW	KVA	(LD)	WATTEK (Standford Technology)	SMARTGEN
22GF	22	27.5	4B3.9-G1	184F	6120
30GF	30	37.5	4BT3.9-G1	184H	6120
40GF	40	50	4BTA3.9-G1	224D	6120
50GF	50	62.5	4BTAA3.9-G2	224E	6120
60GF	60	75	6BT5.9-G1	224F	6120
80GF	80	100	6BT5.9-G1	274C	6120
100GF	100	125	6BTA5.9-G1	274D	6120
112GF	112	140	6BTAA5.9-G1	274E	6120
128GF	128	160	6CT8.3-G1	274F	6120
150GF	150	188	6CTA8.3-G2	274G	6120
160GF	160	200	6CTAA8.3-G2	274H	6120
200GF	200	250	66LTAA8.9-G2	274K	6120
