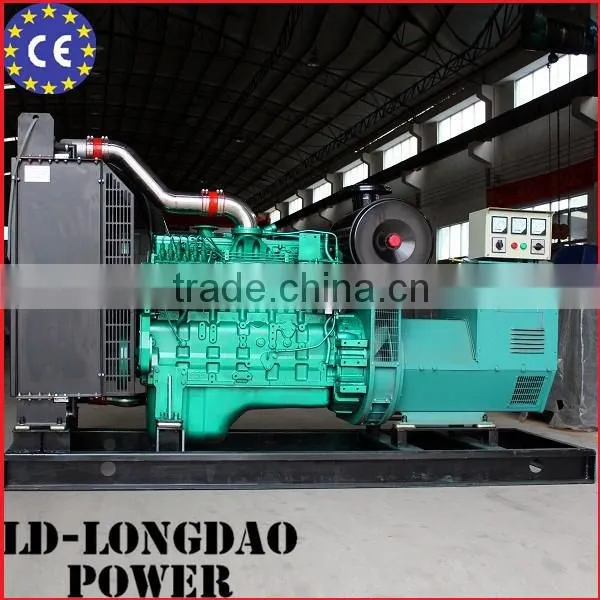

Standby Power Plant Water Cooled Diesel Generator

US$ 4,500 - 7,565 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangxi, China

Brand Name:

Model Number:

200GF

Liuzhou Long Dao Industrial And Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or Guangzhou Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangxi, China

Brand Name LD

Model Number 200GF

Output Type AC Three Phase

Speed 1500 or 1800 r/min

Frequency 50 or 60 HZ

Rated Power 200KW/250KVA

Rated Voltage 230/400 V

Rated Current 360A

Specifications

diesel generator
1.Genuine engine parts
2.Price less 20%-30% than other brand
3.CE & ISO
4.Best after-sales service

Main Product: diesel engine, diesel generator, alternator and spare parts;

Diesel Engine Usage: Widely used for generator set, boat, wheel loader, truck, water pump, sand pump,

fire pump, construction machine, etc;

Diesel Engine Power Range: from 20kw up to 700kw;

Diesel Generator Power Range: from 30kw up to 700kw.

Standby Power Plant Water Cooled Diesel Generator Specification

Genset Model (LD Brand)		200GF
Rated Power/Speed kw/r/min		200/1500

LD Diesel Engine	Engine Model	6LTAA8.9-G2
	Rated Power/Speed kw/r/min	220/1500
	Type	Vertical,inline,water-cooled,four stroke
	Intake Way	Turbo & Inter-cooled
	Number of cylinders×bore×stroke (mm)	6-114x145
	Total displacement(L)	8.9
	Min fuel consumption (g/kw.h)	≤195
	Starting type	Electric
	Speed governor model	Electrical
	Oil capacity(L)	20-22
	Low noise limit dB (A)	98

Wattek alternator (Stanford Technology)	Alternator model	274K
	Rated voltage (V)	400/230
	Current( A)	360
	Freq( Hz)	50
	Regulator approach	AVR
	Power factor (CosØ)	0.8 Lagging
	Phase	3 Phase 4 Wire
	Insulation Class	F / H
	Protection Class	IP22 / IP33

Genset Packing	Net weight (kg)	2200
Genset Packing	Genset dimension LWH (mm)	2800x800x1400

Power Plant Water Cooled Diesel Generator More Power for Option

Genset	400/230V 50/60HZ 3-PHASE		Model
Genset	Prime Power		Engine	Alternator	Controller
Type	KW	KVA	LD Brand	WATTEK (Standford Technology)	SMARTGEN
22GF	22	27.5	4B3.9-G1	184F	6120
30GF	30	37.5	4BT3.9-G1	184H	6120
40GF	40	50	4BTA3.9-G1	224D	6120
50GF	50	62.5	4BTAA3.9-G2	224E	6120
60GF	60	75	6BT5.9-G1	224F	6120
80GF	80	100	6BT5.9-G1	274C	6120
100GF	100	125	6BTA5.9-G1	274D	6120
112GF	112	140	6BTAA5.9-G1	274E	6120
128GF	128	160	6CT8.3-G1	274F	6120
150GF	150	188	6CTA8.3-G2	274G	6120
160GF	160	200	6CTAA8.3-G2	274H	6120
200GF	200	250	66LTAA8.9-G2	274K	6120
