Specifications
1, Training for technical students2, Easy to organize various training projects
3, Expand and upgrade are convenient;

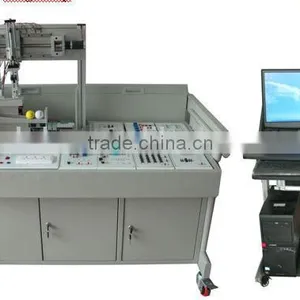

Singlechip Processor Control Practical Training Device, Mechatronics Electrical Electronic Laboratory Equipment
1. Product structure:
This device is practical training bench and training module, module adopts standard structure, high interchangeability; module contents could be chosen according input output or data conversion functions, so can convenient choose needed module. Each module have two wiring ways, one is electron wired way, 8 BIT data bus also can connect by Dupont Line winding connection. Entire connection process is convenient and efficient...
To components with interference properties, all insulate by photoelectricity isolation device to make sure system safety and stability. Connection between module is flexible, could deepen knowledge the principle of singlechip, could finish I/O practical training, A/D training, D/A training, LED LCD dot matrix module, etc.
2. Technical qualification:
2.1 Input power supply: single-phase AC 220V±10%(50Hz;
2.2 Output power supply:
DC±12V±5%/1A;
DC±5V±5%/1A;
DC 24V±5%/1.5A;
2.3 Temperature: -10~40 °C; environment humidity: ≤90%(25°C);
3. Equipments composition:
1 Mainframe module
2, Power module
3. Simulator module
4. Display module
5. Delay module
6. Instruct module
7 ADC/DAC modules
8. AC/DC motor control module
9. Stepper motor control
10. Sensor adapter module (4 ways sensor port)
11. Extended module
12. Temperature sensor module
13. Logic material handling equipment
4. Training project:
1. Marquee experiment
2. Independent button input training
3. Matrix keyboard interface training
4. Photoelectricity isolation input/output training
5. Metal detection training
6. Relay isolation control experiment
7. Static state nixie tube display experiment
8. Dynamic nixie tube display experiment
9. Buzzer perform experiment, etc...
