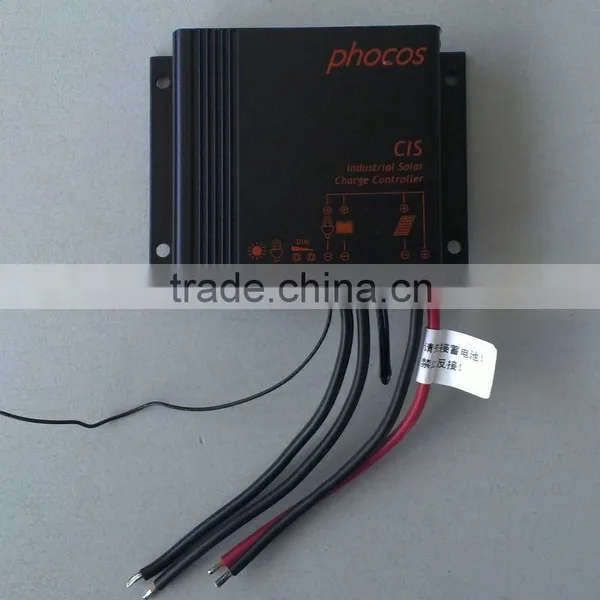

Phocos CIS 05 Solar Street Light Charge Controller

Name: Phocos CIS 05 Solar Street Light Charge Controller
Brand: Phocos
SKU: 110443333

Negotiable MOQ: 50 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

China

Brand Name:

Phocos

Model Number:

CIS 05

Qingdao Commercial Energy Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name Phocos

Model Number CIS 05

Application Lighting Controller

Rated Voltage 12V

Maximum Current 5 A

Specifications

Solar Street Light Charge Controller
1.Intelligent Timer Functions
2.Widely Programmable
3.Dual load or Dimmable Load Output

Phocos CIS 05 Solar Charge Controller

1.Robust Aluminum Housing.

2.Expoxy Encapsulated PCB to Prevent Corrosion.

3.Compact Size.

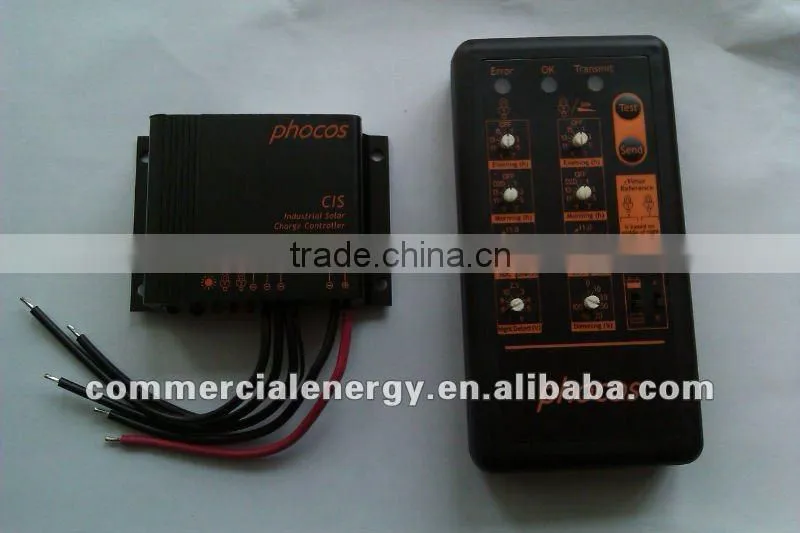

4.Infrared Remote Control Programming Accessory.

5.Intelligent Timer Functions.

6.Widely Programmable.

7.External Temperature Sensor(Optional).

8.4 Stage Battery Charging (Main, Float, Boost, Equalization).

9.Dual load or Dimmable Load Output.

10.Automatic System Voltage Recognition(12V/2V).

Type	CIS 05 CIS -2L 05
System Voltage	12/24 V auto recognition
Max. Charge/Load Current	5A
Float Charge	13.8/27.6 V(25°C)
Main Charge	14.4/28.8V (25°C),30 min (daily)
Boost Charge	14.4/28.8V (25°C), 2h activation:battery voltage< 12.3/24.6V
Equalization	14.4/28.8V (25°C), 2Std. activation:battery voltage< 12.1/24.2 V( at least every 30 days)
Deep Discharge Protection Cut-off Voltage Reconnect Level	11-12 V/ 22- 24 V 12.8/25.6 V
Overvoltage Protection	15.5/31.0 V
Undervoltage Protection	10.5/21 V
Max.Panel Voltage (Overvoltage Protection by Varistor)	55 V
Temperature Compensation(Charge Voltage)	-25 mV/Kat 12 V -50 mV/Kat 24 V
Max.Self Consumption	5-8 mA at 12V 6-10mA at 24V
Grounding	Positive ground possible
Ambient Temperature	-40 to 60°C
Max.Height	4,000m above sea level
Battery Type	Lead acid (GEL, AGM, flooded)
Adjustment Range:Evening/Morning Hours Night/ Day Detection	0-15 h/0- 14 h 2.5 – 10 V
Wire Length	10 cm
Dimensions(B×H×T)	82×58×20 mm
Weight	150 g
Wire Cross Section	1.5 mm²
Type of Protection	IP 68 (1.5 m,72 h)
