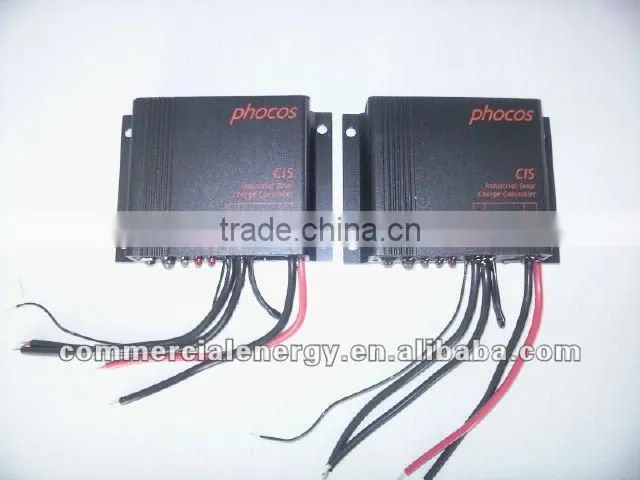

CIS Phocos Solar Charge Controller for Solat Street Light

Name: CIS Phocos Solar Charge Controller for Solat Street Light
Brand: Phocos
SKU: 110443475

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Phocos

Model Number:

CML10 Solar Charge Controller

Qingdao Commercial Energy Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Phocos

Model Number CML10 Solar Charge Controller

Application Charger Controller

Rated Voltage 12V

Maximum Current 5A

Specifications

Phocos Solar Controller
1.Brand:Phocos CIS series
2.CIS 05,10,20
3.12/24V auto detection
4.Intelligent timer Function

CIS 5A Phocos Solar Charge Controller

1.Robust Aluminum Housing

2.Epoxy Encapsulated PCB to Prevent Corrosion (IP68)

3.Compact Size

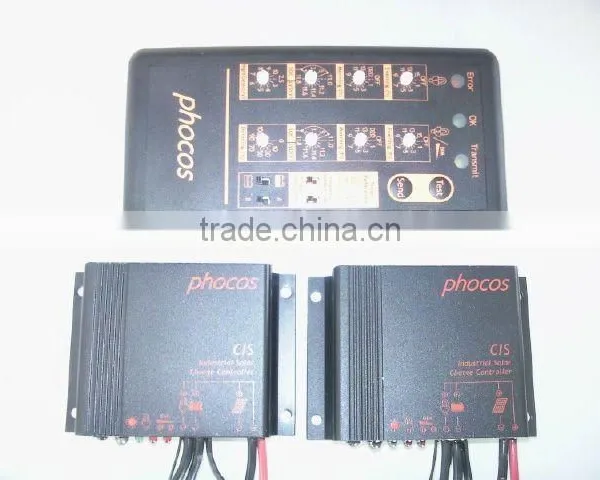

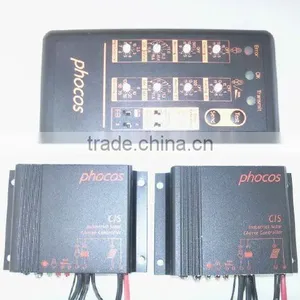

4. Infrared Remote Control Programming Accessory (CU)

5.Intelligent Timer Functions

6.Widely Programmable

7.External Temperature Sensor (Optional)

8.4 Stage Battery Charging (Main, Float, Boost, Equalization)

9.Dual load or Dimmable Load Output

10.Automatic System Voltage Recognition (12/24V)

Type	CIS05,CIS-2L 05
System voltage	12/24V auto recognition
Max.charge/Load current	5A
Float charge	13.8/27.6(25 °c)
Main charge	14.4/28.8 V (25 °c),30 min.(daily)
Boost charge	14.4/28.8 V (25 °c),2 h activation:battey voltage<12.3/24.6V
Equalization	14.4/29.6 V (25 °c),2 Std. activation:battery voltage<12.1/24.2 (at least every 30 days)
Deep discharge protection: Cut-off voltage Reconnect level	11-12 V 22-24 V 12.8/25.6 V
Overvoltage protection	15.5 /31.0 V
Undervoltage protection	10.5 /21 V
Max.panel voltage (Overvoltage protection by varistor)	55V
Temperature compensation (charge voltage)	-25 mV / K at 24 V -50 mV / K at 12 V
Max.self consumption	5-8 mA at 12 V 6-10 mA at 24 V
Grounding	positive grounding possible
Ambient temperature	-40 to + 60 °c
Max.height	4000 m above sea level
Battery type	Lead acid (GEL,AGM,Flooded)
Adjustable range: Evening/morning hours Night/day detection	0-15 h / 0-14 h 2.5-10 V
Wire Length	10 cm
Dimensions (BHT)	825820 mm
Weight	150 g
Wire cross section	1.5mm²
Type of protection	IP68 (1.5m 72h)
Dimming value	0-100% output power
Dimming output voltage	0-5 V (max 1mA)
