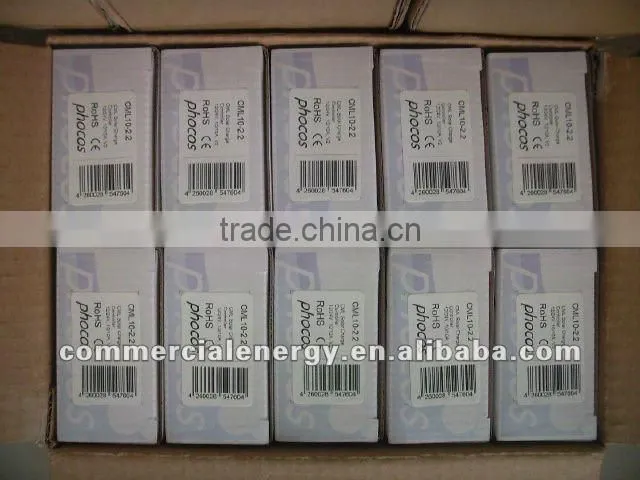

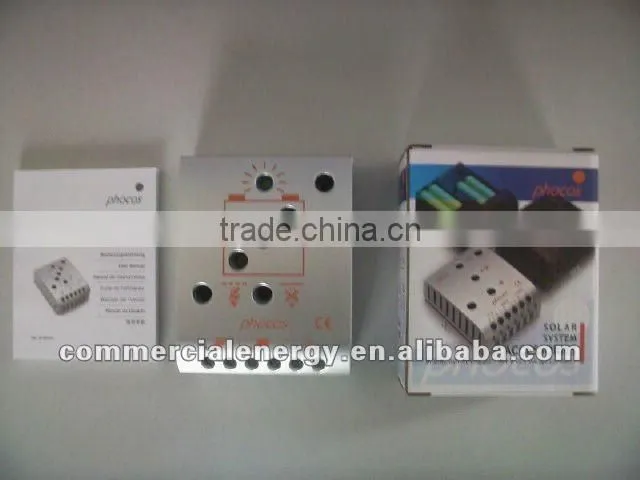

CML10 Phocos Solar Charge Controller

Name: CML10 Phocos Solar Charge Controller
Brand: Phocos
SKU: 110443489

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Phocos

Model Number:

CML10 Solar Charge Controller

Qingdao Commercial Energy Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Phocos

Model Number CML10 Solar Charge Controller

Application Charger Controller

Rated Voltage 12V

Maximum Current 10A

Specifications

CML10A Phocos Solar Charge Controller
1.Brand name: Phocos
2.Battery charging with 3LEDS
3.12/24V auto detection

CML05 Phocos Solar Charge Controller

1. Battery State-of-Charge display with 3LEDS

2. Acoustic load disconnect pre-warning

3 PWM-regulation (series type)

4. Boost, Equalize and Float charging, also for VRLA

5. Automatic 12/24V detection

6. Integrated temperature compensation

6. Large terminals (up to 16 mm wire size)

7. SOC and voltage controlled LVD

8. Fully electronically protected

Type	CML10
System voltage	12/24V auto recognition
Max.charge/Load current	10A
Float charge	13.7/27.4V(25°c)
Boost charge	14.4/28.8(25°c),2 Std. Activation:battery voltage<12.3/24.6 V
Equalization	14.8/29.6V (25°c),2 Std. Activation:battery voltage<12.1/24.2 V
Deep discharge protection: State of charge dependent Voltage dependent Reconnect level	11.4-11.9/22.8-23.8 V 11.0/22.0 V 12.8/25.6 V
Overvoltage protection	15.5/31.0 V
Undervoltage protection	10.5/21.0 V
Max.panel voltage (Overvoltage protection by varistor)	30V in 12V system 50V in 24V system
Temperature compensation (charge voltage)	-25 mV/K at 12 V -50 mV/K at 24 V
Max.self consumption	<4 mA
Grounding	positive prounding possible
Ambient temperature	-40 to +50°c
Max.height	4000 m above sea level
Battery type	Lead and acid (Gel,AGM,flooded)
Wire cross section	<16mm
Weight	160g
Dimensions (WHD)	8010032mm
Type of protection	IP22
