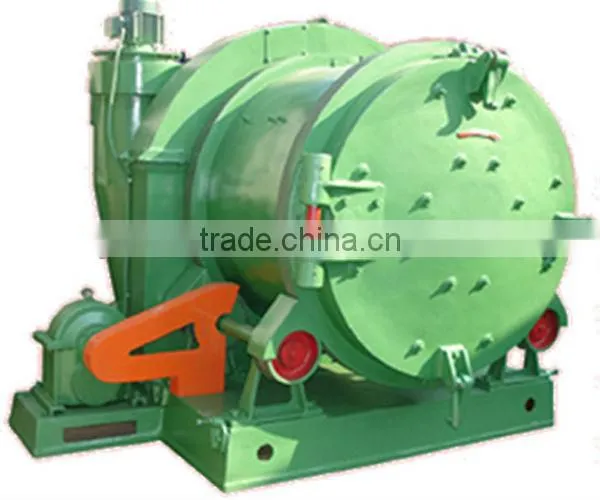

Help CenterQ3110BI Series Drum Shot Blasting Machine
Related Products
-
Hanging Chain Shot Blasting MachineUS$ 60,000 - 90,000MOQ: 1 Set -
Rotating/rotary Table Shot Blasting MachineUS$ 20,000 - 60,000MOQ: 1 Set
-
Rotary Table Type Shot Blasting MachineUS$ 20,000 - 60,000MOQ: 1 Set
-
QT37 Hanger Type Shot Blast Cleaning MachineUS$ 50,000 - 80,000MOQ: 1 Set
-
Abrasive Trolley Shot Blasting MachineUS$ 30,000 - 60,000MOQ: 1 Set
Specifications
1.rolling drum type2.suitable for small castings and forgings
petitive price
pact structure
mpt delivery
Qingdao Antai Heavy Industry Machinery Co., Ltd.
Founded in 2003, 10 years experience for making shot blasting machine.
A group company,having real estate, machinery and leather bags industry.
Eight experienced engineers to consider every possibility for customers.
Three of them has over 25 years knowledge of shot blasting technology.
3D software for auxiliary design. Show every design details in front of you.
Experienced technicians for production, installation, commissioning & service.
ISO 9001:2008 certified company, CE certificate will be issued soon.
All machining parts out sourced from professional CNC machining company with strict quality control procedure.
Own foundry to produce special material spare parts for our machines.
Q31 Series Rolling Drum type shot blasting machine
The machine is suitable for surface rust removal of work pieces in medium or small quantity batch production with many varieties. Put the work pieces into the barrel and blasting it in side way.
The high-speed impeller throws the abrasive to the continuous tumbling castings or forgings in barrel, to remove the greensand or scales on the surface. It cleans evenly and its productivity is high, so it is suitable for cleaning the small work pieces whose weight are under 15g in medium or small-scale casting or forging workshops.
Technical specification:
No |
Item |
Q3110BI |
Q3110BII |
Q3113BI |
Q3113BII |
|
1 |
Diameter of rolling drum |
mm |
1000 |
1000 |
1300 |
1300 |
2 |
Loading capacity |
kg |
300 |
300 |
600 |
600 |
3 |
Productivity |
kg/h |
600- 1500 |
600- 1500 |
2500- 3500 |
2500- 3500 |
4 |
Power(no dust collector) |
kw |
9.7 |
11.9 |
14.5 |
16.3 |
5 |
Max weight of workpiece |
kg |
15 |
15 |
30 |
30 |
6 |
Speed of rolling drum |
r/min |
3 |
3 |
2.5 |
2.5 |
7 |
Abrasive flow rate |
kg/min |
120 |
120 |
160 |
160 |
8 |
Ventilation capacity |
M3/h |
800 |
2000 |
2000 |
2800 |
9 |
Outline dimension |
mm |
2078* 2458 *1861 |
3870* 2458* 3370 |
2550* 2341* 2250 |
4362* 2341* 2250 |

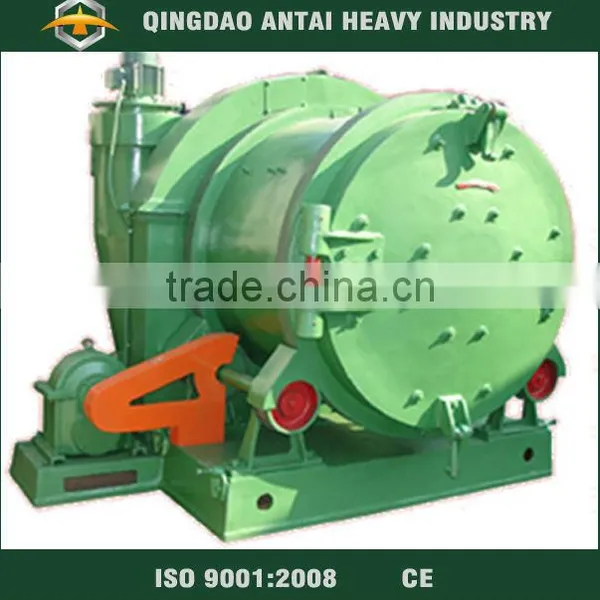

Photos of rolling drum shot blasting machine:
